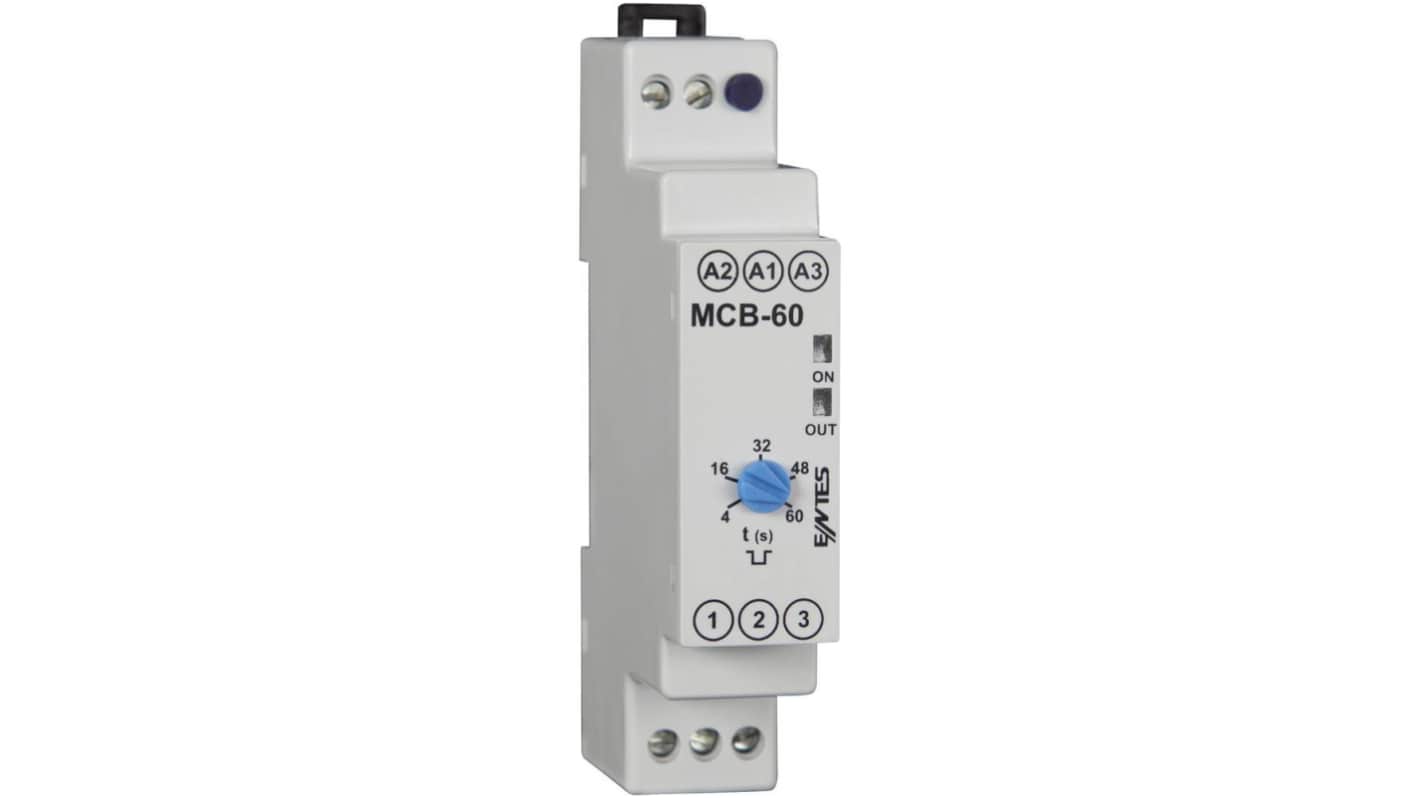

ENTES Miniature Circuit Breaker Series DIN Rail Timer Relay, 1-Contact, 12 to 240 V dc 12/240 V ac, 4 to 30 sec,
- RS Stock No.:
- 628-907
- Mfr. Part No.:
- MCB-60
- Brand:
- ENTES
Subtotal (1 unit)*
£16.42
(exc. VAT)
£19.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 28 unit(s) shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £16.42 |
*price indicative
- RS Stock No.:
- 628-907
- Mfr. Part No.:
- MCB-60
- Brand:
- ENTES
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ENTES | |
| Product Type | Timer Relay | |
| Mount Type | DIN Rail | |
| Time Range | 4 to 30 sec | |
| Number of Contacts | 1 | |
| Number of Timer Functions | 4 | |
| Contact Configuration | 1 CO | |
| IP Rating | IP20, IP40 | |
| Contact Current | 8A | |
| Supply AC Voltage | 12/240 V ac | |
| Supply DC Voltage | 12 to 240 V dc | |
| Minimum Operating Temperature | -10°C | |
| Terminal Type | Screw | |
| Maximum Operating Temperature | 55°C | |
| Length | 90mm | |
| Width | 19 mm | |
| Height | 58mm | |
| Standards/Approvals | RoHS | |
| Series | Miniature Circuit Breaker | |
| Select all | ||
|---|---|---|
Brand ENTES | ||
Product Type Timer Relay | ||
Mount Type DIN Rail | ||
Time Range 4 to 30 sec | ||
Number of Contacts 1 | ||
Number of Timer Functions 4 | ||
Contact Configuration 1 CO | ||
IP Rating IP20, IP40 | ||
Contact Current 8A | ||
Supply AC Voltage 12/240 V ac | ||
Supply DC Voltage 12 to 240 V dc | ||
Minimum Operating Temperature -10°C | ||
Terminal Type Screw | ||
Maximum Operating Temperature 55°C | ||
Length 90mm | ||
Width 19 mm | ||
Height 58mm | ||
Standards/Approvals RoHS | ||
Series Miniature Circuit Breaker | ||
- COO (Country of Origin):
- TR
The ENTES Time relays are designed to control devices within a desired time interval, offering multiple timing functions with adjustable time ranges. They are commonly used in automation machines, building lighting systems, and the food and agriculture industry.
DIN rail mounting
Adjustable and selectable timing functions
IP20 terminals protection class
