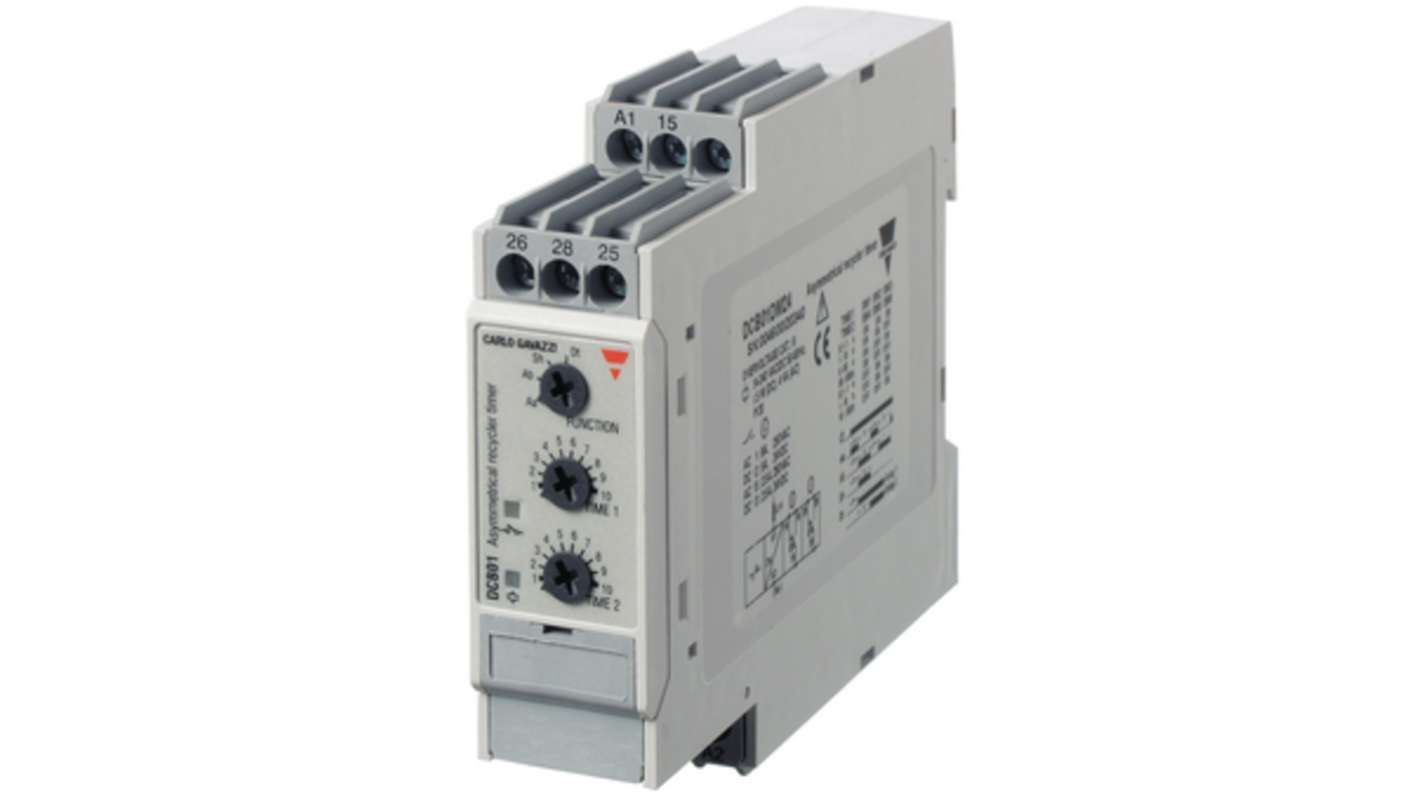

Carlo Gavazzi DCB01 Series Chassis Timer Relay, 2-Contact, 24 V dc 24V ac, 240 V ac, 0.1 to 360000 s, 4-Function, DPDT
- RS Stock No.:
- 350-565
- Distrelec Article No.:
- 137-54-268
- Mfr. Part No.:
- DCB01DM24
- Brand:
- Carlo Gavazzi
Subtotal (1 unit)*
£115.15
(exc. VAT)
£138.18
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 20 unit(s) ready to ship
- Plus 10 unit(s) shipping from 03 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £115.15 |
*price indicative
- RS Stock No.:
- 350-565
- Distrelec Article No.:
- 137-54-268
- Mfr. Part No.:
- DCB01DM24
- Brand:
- Carlo Gavazzi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Carlo Gavazzi | |
| Product Type | Timer Relay | |
| Function | Transducer | |
| Mount Type | Chassis | |
| Time Range | 0.1 to 360000 s | |
| Number of Contacts | 2 | |
| Switching Voltage | 250V ac | |
| Number of Timer Functions | 4 | |
| Contact Configuration | DPDT | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -20°C | |
| Supply DC Voltage | 24 V dc | |
| Timing Adjustment | Knob | |
| Supply AC Voltage | 24, 240V ac | |
| Contact Current | 8A | |
| Terminal Type | Screw | |
| Maximum Operating Temperature | 60°C | |
| Height | 80mm | |
| Width | 22.5mm | |
| Length | 99.5mm | |
| Standards/Approvals | CSA, EN 61000-6-3, CE, EN 61000-6-2, UL, EN 61812-1 | |
| Series | DCB01 | |
| Select all | ||
|---|---|---|
Brand Carlo Gavazzi | ||
Product Type Timer Relay | ||
Function Transducer | ||
Mount Type Chassis | ||
Time Range 0.1 to 360000 s | ||
Number of Contacts 2 | ||
Switching Voltage 250V ac | ||
Number of Timer Functions 4 | ||
Contact Configuration DPDT | ||
IP Rating IP20 | ||
Minimum Operating Temperature -20°C | ||
Supply DC Voltage 24 V dc | ||
Timing Adjustment Knob | ||
Supply AC Voltage 24, 240V ac | ||
Contact Current 8A | ||
Terminal Type Screw | ||
Maximum Operating Temperature 60°C | ||
Height 80mm | ||
Width 22.5mm | ||
Length 99.5mm | ||
Standards/Approvals CSA, EN 61000-6-3, CE, EN 61000-6-2, UL, EN 61812-1 | ||
Series DCB01 | ||
- COO (Country of Origin):
- IT
The Carlo Gavazzi Clock Generator is a versatile asymmetrical recycler timer designed for industrial automation applications. It features a compact DIN rail mountable design with selectable time ranges from 0.1 seconds to 100 hours, making it suitable for various timing requirements. This device operates on a wide supply voltage range of 24 to 240V AC/DC.
DIN rail mountable with a compact Euronorm housing
Screw terminal connections for easy installation
8A DPDT relay output for robust switching capabilities
