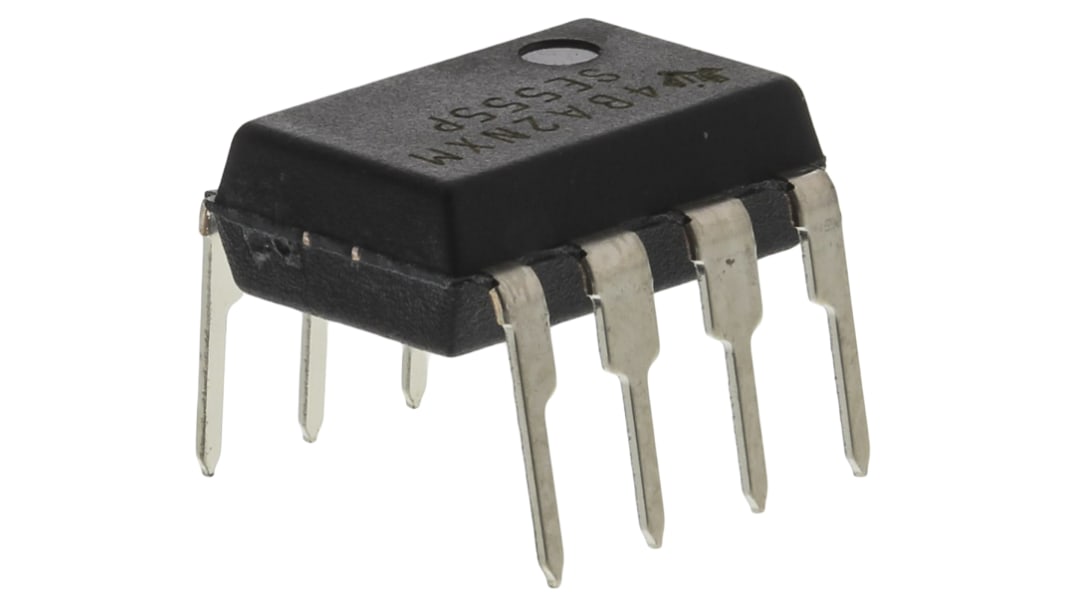

Texas Instruments SE555P, Timer Circuit, 8-Pin PDIP
- RS Stock No.:
- 709-2110
- Mfr. Part No.:
- SE555P
- Brand:
- Texas Instruments
Bulk discount available
Subtotal (1 pack of 5 units)*
£1.42
(exc. VAT)
£1.705
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 335 unit(s) ready to ship
- Plus 100 unit(s) ready to ship from another location
- Plus 550 unit(s) shipping from 14 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 45 | £0.284 | £1.42 |
50 + | £0.196 | £0.98 |
*price indicative
- RS Stock No.:
- 709-2110
- Mfr. Part No.:
- SE555P
- Brand:
- Texas Instruments
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Texas Instruments | |
Mounting Type | Through Hole | |
Timer Type | Standard | |
Package Type | PDIP | |
Number of Internal Timers | 1 | |
Pin Count | 8 | |
Minimum Operating Supply Voltage | 4.5 V | |
Maximum Operating Supply Voltage | 18 V | |
Minimum Operating Temperature | -55 °C | |
Maximum Operating Temperature | +125 °C | |
Maximum Quiescent Current | 12mA | |
Maximum Low Level Output Current | 200mA | |
Maximum High Level Output Current | -200mA | |
Length | 9.81mm | |
Height | 4.57mm | |
Width | 6.35mm | |
Dimensions | 9.81 x 6.35 x 4.57mm | |
Select all | ||
---|---|---|
Brand Texas Instruments | ||
Mounting Type Through Hole | ||
Timer Type Standard | ||
Package Type PDIP | ||
Number of Internal Timers 1 | ||
Pin Count 8 | ||
Minimum Operating Supply Voltage 4.5 V | ||
Maximum Operating Supply Voltage 18 V | ||
Minimum Operating Temperature -55 °C | ||
Maximum Operating Temperature +125 °C | ||
Maximum Quiescent Current 12mA | ||
Maximum Low Level Output Current 200mA | ||
Maximum High Level Output Current -200mA | ||
Length 9.81mm | ||
Height 4.57mm | ||
Width 6.35mm | ||
Dimensions 9.81 x 6.35 x 4.57mm | ||
Non Compliant
555 Timer, Texas Instruments
A range of highly stable precision timing circuits for the generation of accurate time delays or timing pulses. These timers can be operated in monostable (one-shot) or astable (oscillator) mode with timing periods ranging from less than a microsecond to several minutes. In addition to the original bipolar version, low-power CMOS and LinCMOS variants are also available. These devices are capable of longer timing periods and offering a significant reduction in power consumption. The range includes both single (551, 555) and dual (552, 556) versions of the timer.
