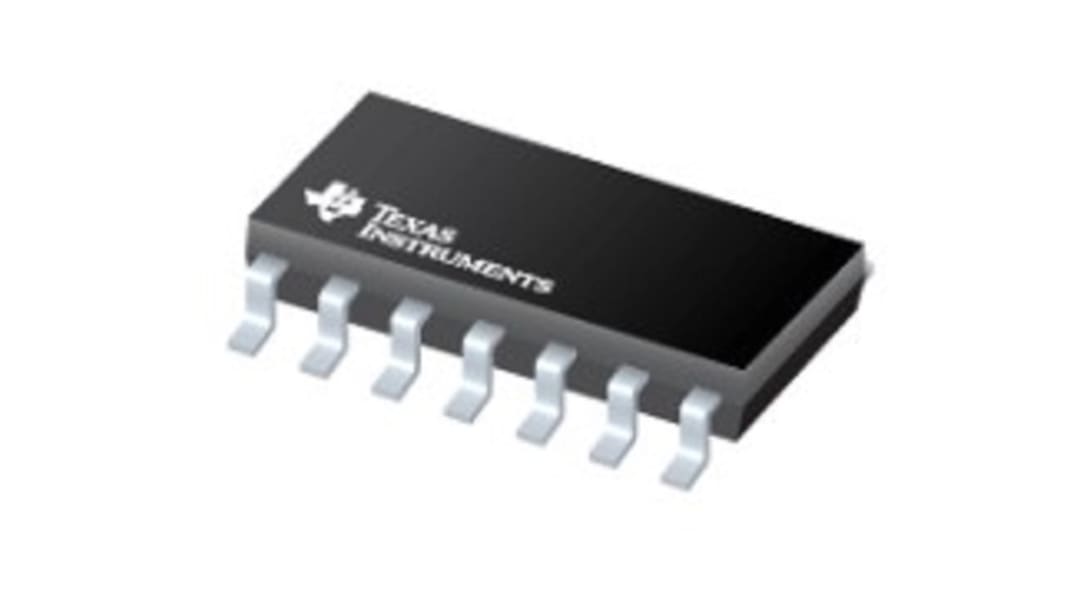

Texas Instruments NE556 Precision Timer, 2, 14-Pin SOIC
- RS Stock No.:
- 252-8532
- Mfr. Part No.:
- NE556D
- Brand:
- Texas Instruments
Bulk discount available
Subtotal (1 pack of 10 units)*
£7.05
(exc. VAT)
£8.46
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 870 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.705 | £7.05 |
| 50 - 90 | £0.669 | £6.69 |
| 100 - 240 | £0.602 | £6.02 |
| 250 - 490 | £0.542 | £5.42 |
| 500 + | £0.536 | £5.36 |
*price indicative
- RS Stock No.:
- 252-8532
- Mfr. Part No.:
- NE556D
- Brand:
- Texas Instruments
Specifications
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Precision Timer | |
| Mount Type | Through Hole, Surface | |
| Package Type | SOIC | |
| Number of Internal Timers | 2 | |
| Pin Count | 14 | |
| Minimum Supply Voltage | 4.5V | |
| Maximum Supply Voltage | 16V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS | |
| Series | NE556 | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Precision Timer | ||
Mount Type Through Hole, Surface | ||
Package Type SOIC | ||
Number of Internal Timers 2 | ||
Pin Count 14 | ||
Minimum Supply Voltage 4.5V | ||
Maximum Supply Voltage 16V | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS | ||
Series NE556 | ||
Automotive Standard AEC-Q101 | ||
