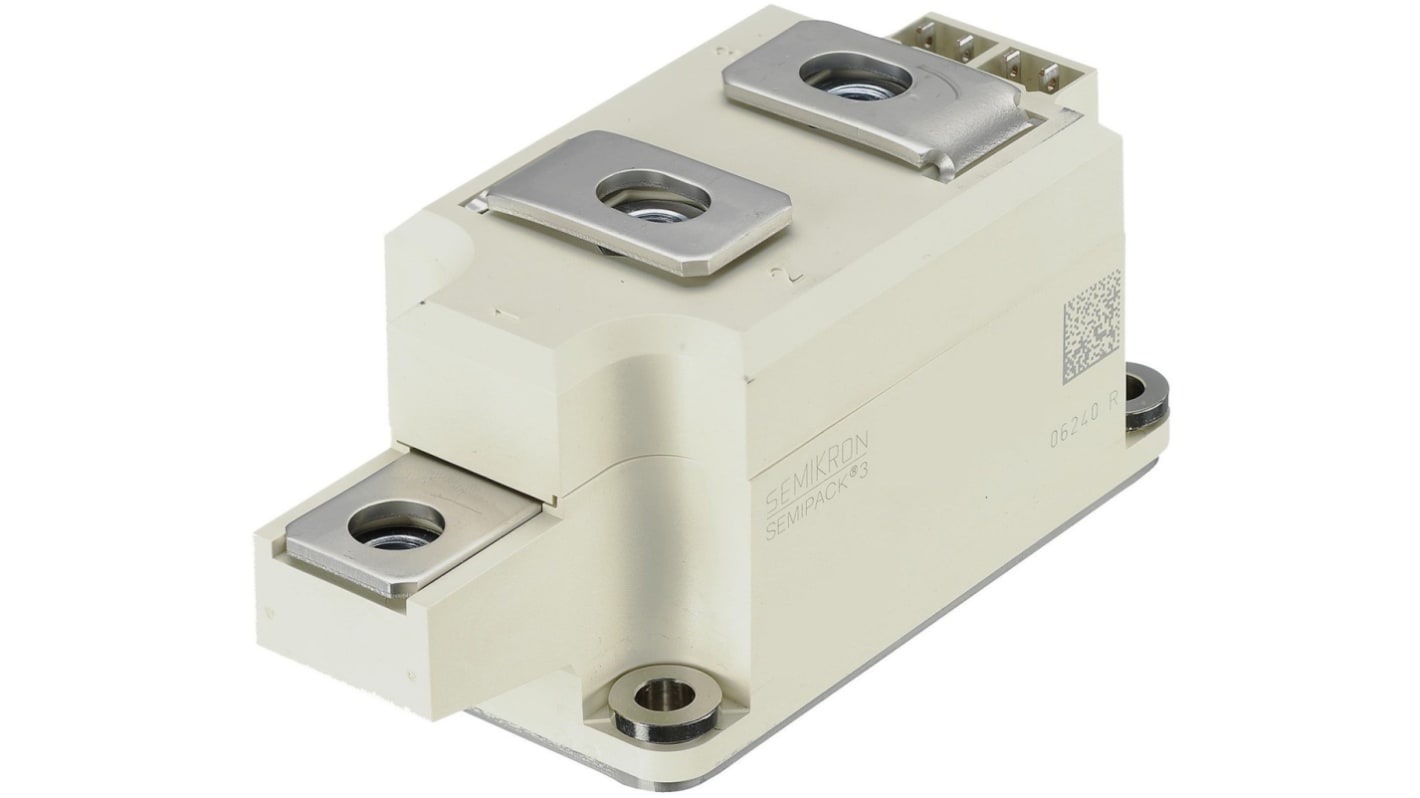

Semikron, SKKH 273/16 E, Diode/Thyristor Module SCR, 95A 1600V, 2-Pin E 12
- RS Stock No.:
- 905-6181
- Mfr. Part No.:
- SKKH 273/16 E
- Brand:
- Semikron
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 905-6181
- Mfr. Part No.:
- SKKH 273/16 E
- Brand:
- Semikron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Semikron | |
| Rated Average On-State Current | 95A | |
| Package Type | E 12 | |
| Repetitive Peak Reverse Voltage | 1600V | |
| Surge Current Rating | 1150A | |
| Mounting Type | Thread Mount | |
| Pin Count | 2 | |
| Dimensions | 17 (Dia.) x 146mm | |
| Maximum Operating Temperature | +180 °C | |
| Repetitive Peak Forward Blocking Voltage | 1600V | |
| Repetitive Peak Off-State Current | 10mA | |
| Peak On-State Voltage | 1.5V | |
| Minimum Operating Temperature | -40 °C | |
| Select all | ||
|---|---|---|
Brand Semikron | ||
Rated Average On-State Current 95A | ||
Package Type E 12 | ||
Repetitive Peak Reverse Voltage 1600V | ||
Surge Current Rating 1150A | ||
Mounting Type Thread Mount | ||
Pin Count 2 | ||
Dimensions 17 (Dia.) x 146mm | ||
Maximum Operating Temperature +180 °C | ||
Repetitive Peak Forward Blocking Voltage 1600V | ||
Repetitive Peak Off-State Current 10mA | ||
Peak On-State Voltage 1.5V | ||
Minimum Operating Temperature -40 °C | ||
- COO (Country of Origin):
- SK
Thyristor/Diode Modules, SKKH SEMIPACK 3 Series, Semikron
Thyristor/Diode configuration
Approvals
UL recognised component
Thyristors - Semikron
A Thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. They act as bistable switches, conducting when their gate receives a current trigger, and continue to conduct while they are forward biased. Thyristors are synonymous to Silicon-Controlled Rectifier (SCR).
Encapsulated modules with electrically isolated base plate. Suitable for applications such as battery chargers, welders and plating equipment, regulated power supplies and temperature and speed control circuits.
Encapsulated modules with electrically isolated base plate. Suitable for applications such as battery chargers, welders and plating equipment, regulated power supplies and temperature and speed control circuits.
