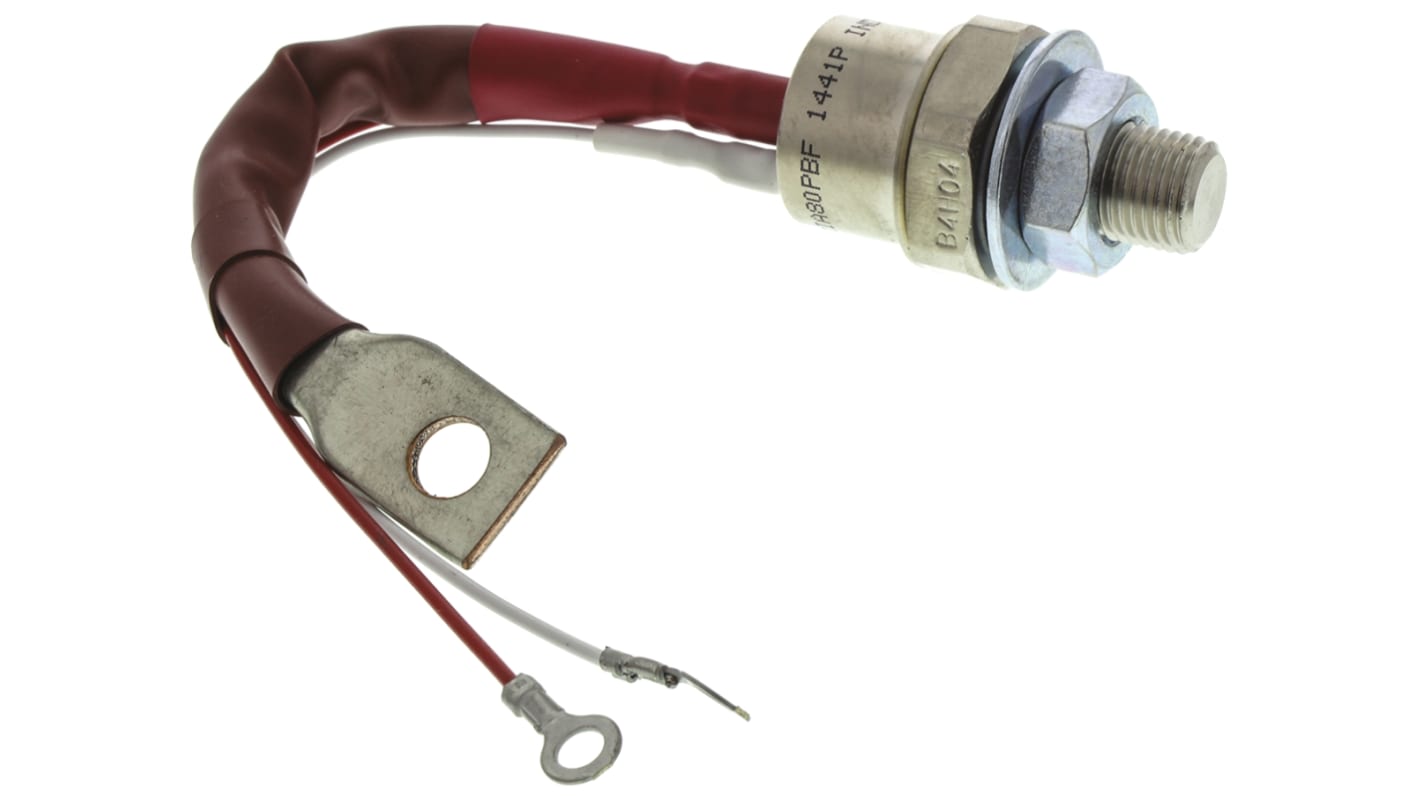

Vishay, Thyristor 800 V, 80 A 120 mA 1.99 kA 1.6 V
- RS Stock No.:
- 357-4324
- Mfr. Part No.:
- VS-80RIA80PBF
- Brand:
- Vishay
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£28.36
(exc. VAT)
£34.03
(inc. VAT)
FREE delivery for orders over £60.00
Being discontinued
- 31 left, ready to ship
- Final 73 unit(s) shipping from 02 October 2026
Units | Per unit |
|---|---|
| 1 - 9 | £28.36 |
| 10 - 24 | £27.79 |
| 25 - 49 | £26.94 |
| 50 - 99 | £26.09 |
| 100 + | £25.52 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£38.21
(exc. VAT)
£45.85
(inc. VAT)
- RS Stock No.:
- 357-4324
- Mfr. Part No.:
- VS-80RIA80PBF
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Rated Average On-State Current Irms | 80A | |
| Product Type | Thyristor | |
| Thyristor Type | PCT | |
| Package Type | TO-94 | |
| Repetitive Peak Reverse Voltage VDRM | 800V | |
| Surge Current Rating | 1.99kA | |
| Mount Type | Screw | |
| Maximum Gate Trigger Current Igt | 120mA | |
| Pin Count | 3 | |
| Maximum Gate Trigger Voltage Vgt | 2.5V | |
| Maximum Holding Current Ih | 200mA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Peak On-State Voltage | 1.6V | |
| Repetitive Peak Off-State Current | 15mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Rated Average On-State Current Irms 80A | ||
Product Type Thyristor | ||
Thyristor Type PCT | ||
Package Type TO-94 | ||
Repetitive Peak Reverse Voltage VDRM 800V | ||
Surge Current Rating 1.99kA | ||
Mount Type Screw | ||
Maximum Gate Trigger Current Igt 120mA | ||
Pin Count 3 | ||
Maximum Gate Trigger Voltage Vgt 2.5V | ||
Maximum Holding Current Ih 200mA | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Peak On-State Voltage 1.6V | ||
Repetitive Peak Off-State Current 15mA | ||
Automotive Standard No | ||
Phase Control Thyristors, Vishay Semiconductor
Thyristors - Vishay Semiconductor
A Thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. They act as bistable switches, conducting when their gate receives a current trigger, and continue to conduct while they are forward biased. Thyristors are synonymous to Silicon-Controlled Rectifier (SCR).
Encapsulated modules with electrically isolated base plate. Suitable for applications such as battery chargers, welders and plating equipment, regulated power supplies and temperature and speed control circuits.
