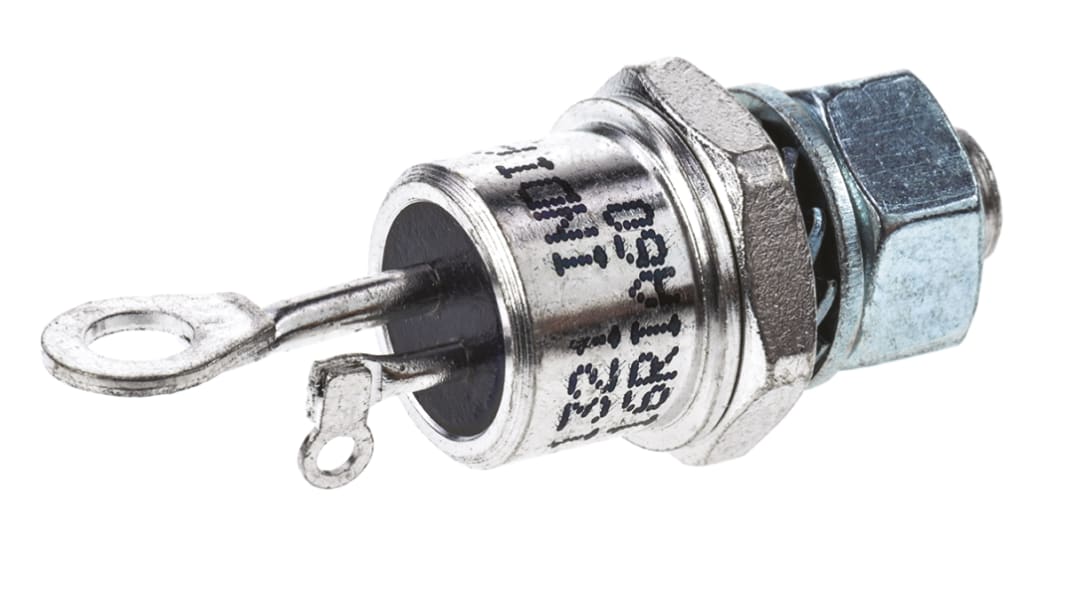

Vishay VS-16RIA60, Thyristor 600 V 360 A, 16 A 60 mA 1.75 V TO-48 2-Pin
- RS Stock No.:
- 227-9040
- Mfr. Part No.:
- VS-16RIA60
- Brand:
- Vishay
Bulk discount available
Subtotal (1 unit)*
£12.80
(exc. VAT)
£15.36
(inc. VAT)
Add 4 units to get free delivery
In Stock
- 1 unit(s) ready to ship
- Plus 53 unit(s) shipping from 25 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £12.80 |
| 10 - 24 | £12.56 |
| 25 - 49 | £12.16 |
| 50 - 99 | £11.78 |
| 100 + | £11.52 |
*price indicative
- RS Stock No.:
- 227-9040
- Mfr. Part No.:
- VS-16RIA60
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Rated Average On-State Current Irms | 16A | |
| Product Type | Thyristor | |
| Package Type | TO-48 | |
| Repetitive Peak Reverse Voltage VDRM | 600V | |
| Surge Current Rating | 360A | |
| Mount Type | Screw | |
| Maximum Gate Trigger Current Igt | 60mA | |
| Pin Count | 2 | |
| Maximum Holding Current Ih | 130mA | |
| Maximum Gate Trigger Voltage Vgt | 2V | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Series | VS-16RIA | |
| Width | 15.5 mm | |
| Height | 30.2mm | |
| Repetitive Peak Off-State Current | 10mA | |
| Peak On-State Voltage | 1.75V | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Rated Average On-State Current Irms 16A | ||
Product Type Thyristor | ||
Package Type TO-48 | ||
Repetitive Peak Reverse Voltage VDRM 600V | ||
Surge Current Rating 360A | ||
Mount Type Screw | ||
Maximum Gate Trigger Current Igt 60mA | ||
Pin Count 2 | ||
Maximum Holding Current Ih 130mA | ||
Maximum Gate Trigger Voltage Vgt 2V | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Series VS-16RIA | ||
Width 15.5 mm | ||
Height 30.2mm | ||
Repetitive Peak Off-State Current 10mA | ||
Peak On-State Voltage 1.75V | ||
Phase Control Thyristors, Vishay Semiconductor
Thyristors - Vishay Semiconductor
A Thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. They act as bistable switches, conducting when their gate receives a current trigger, and continue to conduct while they are forward biased. Thyristors are synonymous to Silicon-Controlled Rectifier (SCR).
Encapsulated modules with electrically isolated base plate. Suitable for applications such as battery chargers, welders and plating equipment, regulated power supplies and temperature and speed control circuits.
