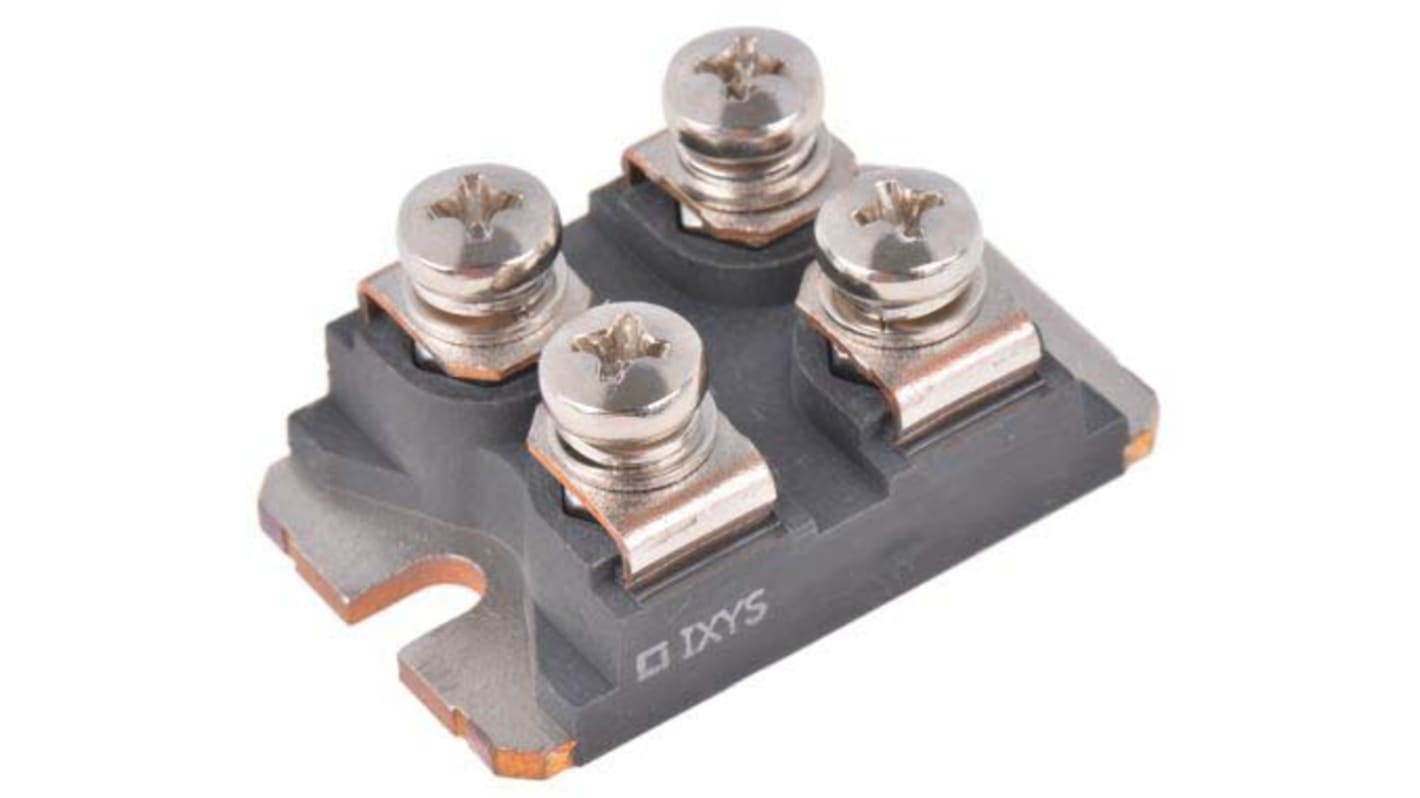

IXYS MMO74-16io6, Dual Thyristor Module 1600V, 40A 150mA
- RS Stock No.:
- 135-8230
- Mfr. Part No.:
- MMO74-16io6
- Brand:
- IXYS
Subtotal (1 tube of 10 units)*
£220.74
(exc. VAT)
£264.89
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 100 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 10 + | £22.074 | £220.74 |
*price indicative
- RS Stock No.:
- 135-8230
- Mfr. Part No.:
- MMO74-16io6
- Brand:
- IXYS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | IXYS | |
| Rated Average On-State Current | 40A | |
| Thyristor Type | SCR | |
| Package Type | SOT-227B | |
| Repetitive Peak Reverse Voltage | 1600V | |
| Surge Current Rating | 650A | |
| Mounting Type | Surface Mount | |
| Maximum Gate Trigger Current | 150mA | |
| Maximum Gate Trigger Voltage | 1.6V | |
| Maximum Holding Current | 100mA | |
| Pin Count | 4 | |
| Dimensions | 38.23 x 25.25 x 12.22mm | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -40 °C | |
| Repetitive Peak Forward Blocking Voltage | 1600V | |
Select all | ||
|---|---|---|
Brand IXYS | ||
Rated Average On-State Current 40A | ||
Thyristor Type SCR | ||
Package Type SOT-227B | ||
Repetitive Peak Reverse Voltage 1600V | ||
Surge Current Rating 650A | ||
Mounting Type Surface Mount | ||
Maximum Gate Trigger Current 150mA | ||
Maximum Gate Trigger Voltage 1.6V | ||
Maximum Holding Current 100mA | ||
Pin Count 4 | ||
Dimensions 38.23 x 25.25 x 12.22mm | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Repetitive Peak Forward Blocking Voltage 1600V | ||
MMO series AC Thyristor Modules
A range of AC power control thyristor modules from IXYS. The modules contain two back-to-back thyristors allowing full-wave AC power control. The devices housed in isolated base SOT227B packages and are available with average current ratings of up to 50A, with reverse voltage ratings of 1200V and 1600V.
• Industry standard outline
• Isolated copper baseplate for good heat transfer
• Two-hole screw fixing
• M4 screw terminal connections
• 3000Vac isolation rating
• Isolated copper baseplate for good heat transfer
• Two-hole screw fixing
• M4 screw terminal connections
• 3000Vac isolation rating
Thyristors - IXYS
A Thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. They act as bistable switches, conducting when their gate receives a current trigger, and continue to conduct while they are forward biased. Thyristors are synonymous to Silicon-Controlled Rectifier (SCR).
Encapsulated modules with electrically isolated base plate. Suitable for applications such as battery chargers, welders and plating equipment, regulated power supplies and temperature and speed control circuits.
Encapsulated modules with electrically isolated base plate. Suitable for applications such as battery chargers, welders and plating equipment, regulated power supplies and temperature and speed control circuits.
