Honeywell Bi-Metallic Thermostat, Opens at +40°C, Closes at 25°C, +150°C Max, NC, Automatic Reset
- RS Stock No.:
- 339-291A
- Mfr. Part No.:
- 2455R 82-196 L40C
- Brand:
- Honeywell
View all Thermostatic Switches
400 In stock - FREE next working day delivery available
Price Each (In a Pack of 25)
£19.603
(exc. VAT)
£23.524
(inc. VAT)
| Units | Per unit | Per Pack* |
| 25 - 100 | £19.603 | £490.075 |
| 125 - 225 | £19.014 | £475.35 |
| 250 + | £17.995 | £449.875 |
| *price indicative | ||
- RS Stock No.:
- 339-291A
- Mfr. Part No.:
- 2455R 82-196 L40C
- Brand:
- Honeywell
- COO (Country of Origin):
- CN
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

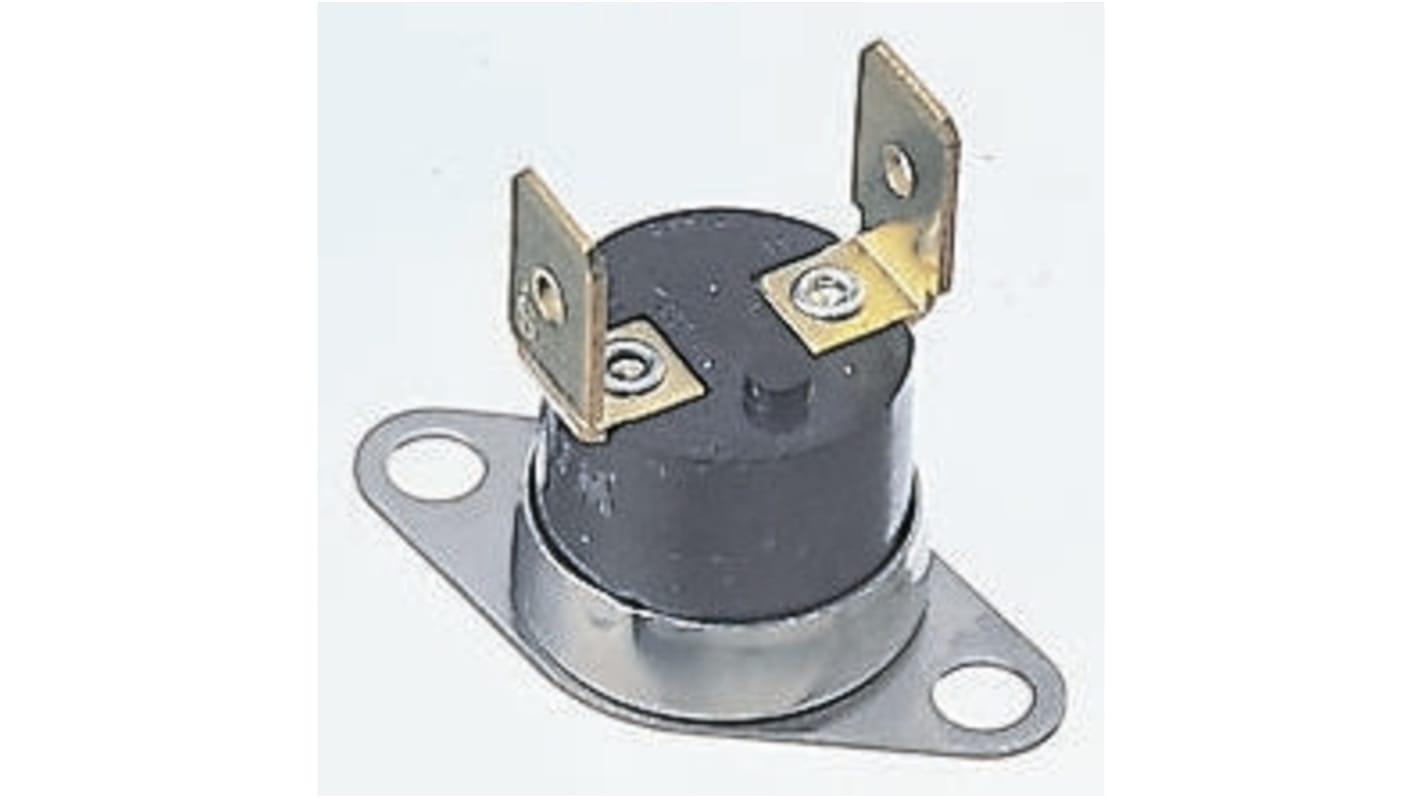

Bi-Metallic Thermostat
Snap action bi-metallic disc operates an SPST contact which is electrically isolated from the mounting bracket.
All types reset when the temperature falls to nominally 15° below operating temperature.
• Phenolic body with stainless steel end cap.
• 1/4in tab termination.
• Contacts are rated to 250 Vac 10A with a maximum contact resistance of 50 mΩ.
• Dielectric strength of 2000 Vac.
• N/C types open on temperature rise.
• N/O types close on temperature rise.
All types reset when the temperature falls to nominally 15° below operating temperature.
• Phenolic body with stainless steel end cap.
• 1/4in tab termination.
• Contacts are rated to 250 Vac 10A with a maximum contact resistance of 50 mΩ.
• Dielectric strength of 2000 Vac.
• N/C types open on temperature rise.
• N/O types close on temperature rise.
Approvals
UL recognised component, CSA Certified
Thermal Switches
Specifications
| Attribute | Value |
| Minimum Temperature | 0°C |
| Maximum Temperature | +150°C |
| Opening Temperature | +40°C |
| Closing Temperature | 25°C |
| Thermostat Type | Bi-Metallic |
| Switch Configuration | NC |
| Contact Rating | 10A |
| Contact Voltage Rating | 250V ac |
| Terminal Type | Solder Tag |
| Reset Type | Automatic |
