RS PRO Type K Bolt Thermocouple 25mm Length, M8 Bolt Diameter → +250°C
- RS Stock No.:
- 872-2590
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£42.97
(exc. VAT)
£51.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 30 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £42.97 |
5 - 9 | £41.68 |
10 + | £39.96 |
*price indicative
- RS Stock No.:
- 872-2590
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Thermocouple Type | K | |
Probe Diameter | M8 Bolt | |
Probe Length | 25mm | |
Probe Material | Stainless Steel | |
Maximum Temperature Sensed | +250°C | |
Termination Type | Bare Wire Tail | |
Cable Length | 2m | |
Standards Met | IEC, RoHS Compliant | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Thermocouple Type K | ||
Probe Diameter M8 Bolt | ||
Probe Length 25mm | ||
Probe Material Stainless Steel | ||
Maximum Temperature Sensed +250°C | ||
Termination Type Bare Wire Tail | ||
Cable Length 2m | ||
Standards Met IEC, RoHS Compliant | ||
- COO (Country of Origin):
- GB

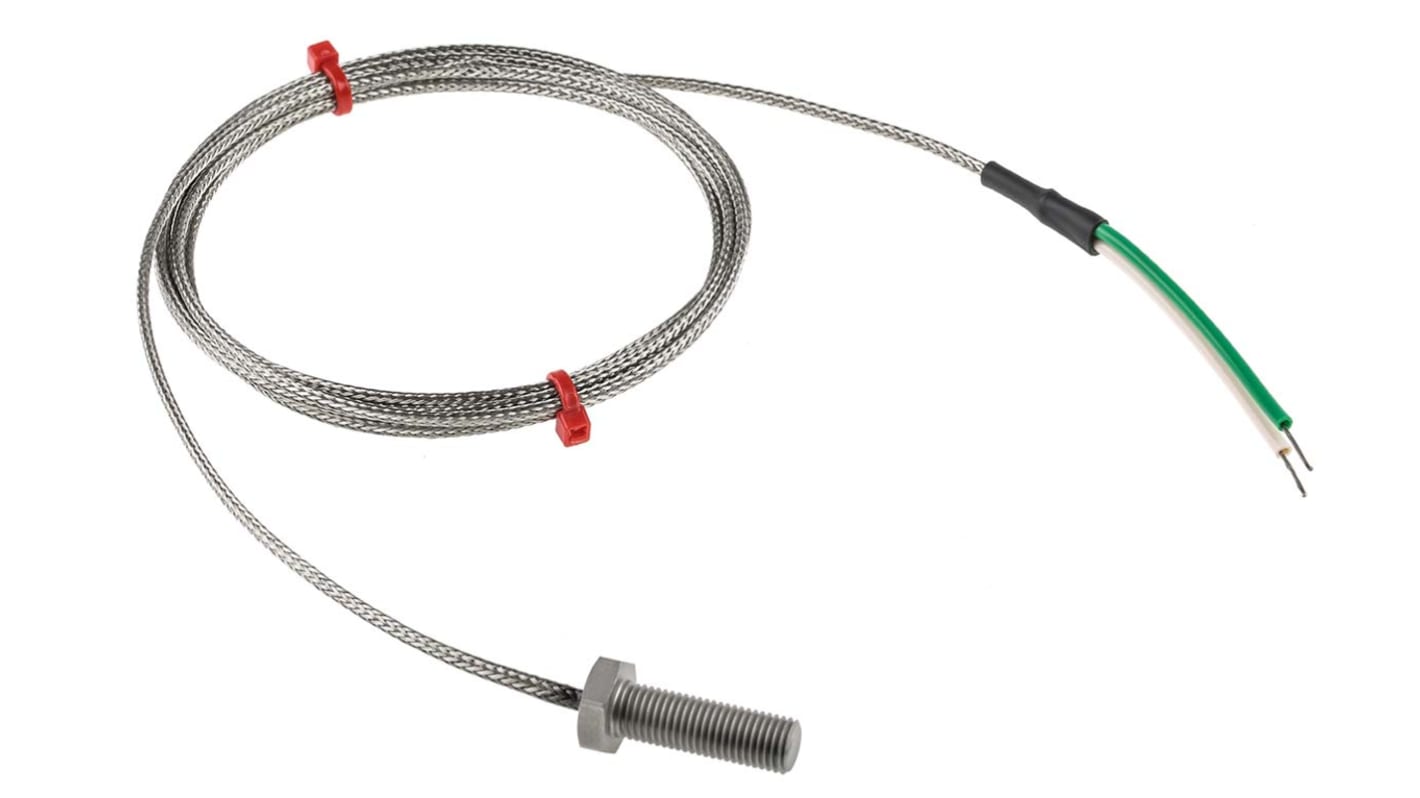

RS PRO Type K Thermocouple 25 mm Length, M8 Bolt Diameter, +250°C
Need a temperature sensor that can provide reliable data quickly? Use this RS PRO Type K thermocouple to measure a wide range of temperatures. It's suitable for sensing temperatures of up to +250°C in a range of applications.
Thanks to the bolt probe sensor, it can be securely screwed into a surface. This provides increased measurement sensitivity for more accurate readings. The bolts also have a grounded junction, which delivers a faster response time.
A stainless steel overbraided cable sheath provides resistance to both pressure and corrosion. This makes it a long-lasting choice for use in harsh environments.
Thanks to the bolt probe sensor, it can be securely screwed into a surface. This provides increased measurement sensitivity for more accurate readings. The bolts also have a grounded junction, which delivers a faster response time.
A stainless steel overbraided cable sheath provides resistance to both pressure and corrosion. This makes it a long-lasting choice for use in harsh environments.
Features and Benefits
- Cable length of 2 m
- Maximum temperature sensed of +250ºC
- M8 bolt probe diameter
- Probe length of 25 mm
- Stainless steel probe material
- IEC (International Electrotechnical Commission) standards met
- Cable termination type
- Type K thermocouple
