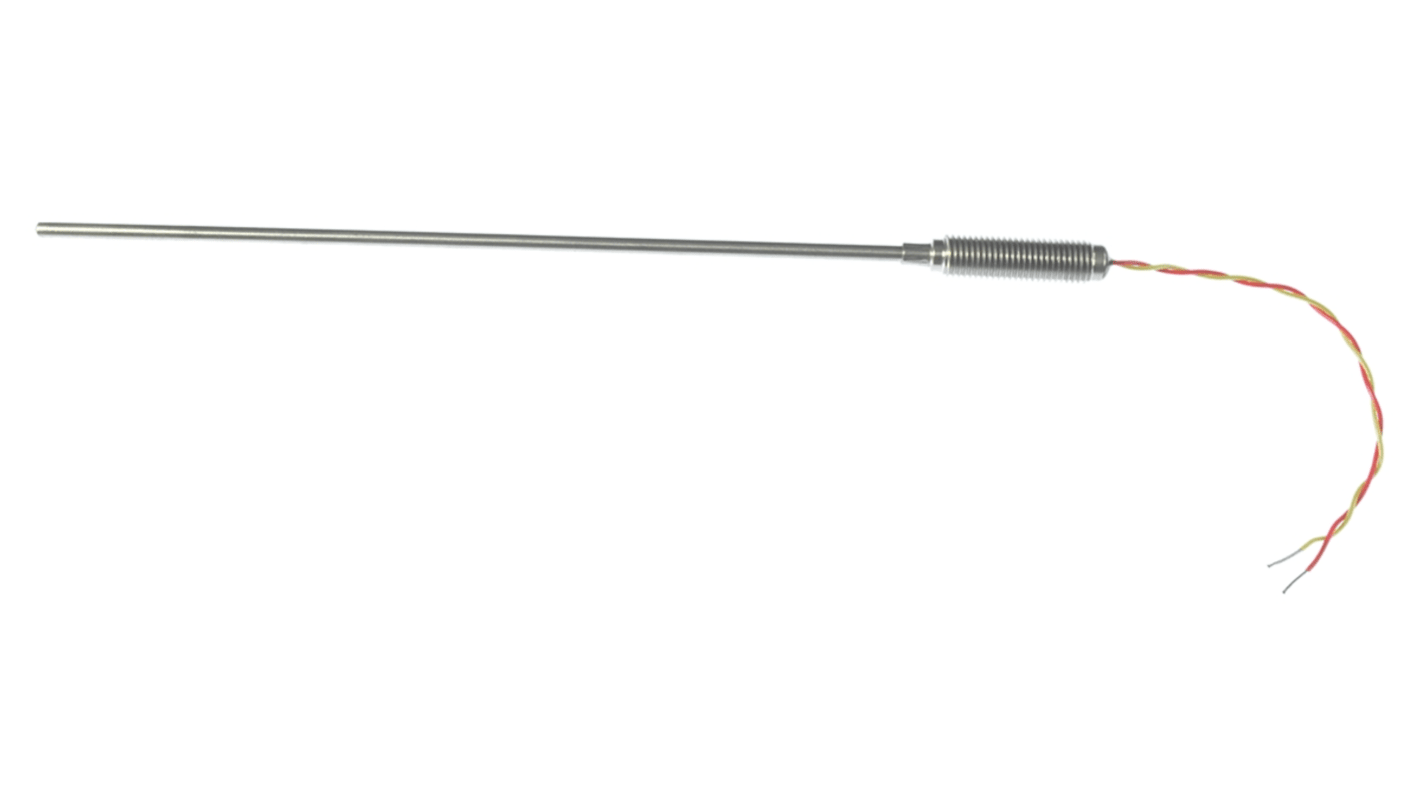

RS PRO Type K Thermocouple 250mm Length, 6mm Diameter → +1100°C
- RS Stock No.:
- 847-1179
- Brand:
- RS PRO
Available to back order for despatch 20/08/2024
Added
Price Each
£36.24
(exc. VAT)
£43.49
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £36.24 |
| 5 - 9 | £35.15 |
| 10 + | £33.70 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 847-1179
- Brand:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Type K Ind. Mineral Insulated Themocouples with Threaded Pot & Tails
ANSI minteral insulated thermocouples with threaded pot and tails.
310 stainless steel or Inconel® Alloy 600 sheath
Highly flexible, sheath can be bent/formed to suit many applications and processes
Insulated hot junction
Probe temperature range: -40°C to +1100°C for over 1.0mm diameter, -40°C to +750°C for 1.0mm diameter and below
M8 x 1.0mm fine pitch threaded pot seal (200 ºC)
100mm tails, PFA twin twisted 7/0.2mm, colour coded to ANSI MC96.1
Highly flexible, sheath can be bent/formed to suit many applications and processes
Insulated hot junction
Probe temperature range: -40°C to +1100°C for over 1.0mm diameter, -40°C to +750°C for 1.0mm diameter and below
M8 x 1.0mm fine pitch threaded pot seal (200 ºC)
100mm tails, PFA twin twisted 7/0.2mm, colour coded to ANSI MC96.1
Specifications
Attribute | Value |
|---|---|
| Thermocouple Type | K |
| Probe Diameter | 6mm |
| Probe Length | 250mm |
| Maximum Temperature Sensed | +1100°C |
| Probe Material | Stainless Steel |
| Termination Type | Cable |
| Cable Length | 100mm |
| Standards Met | ANSI |
