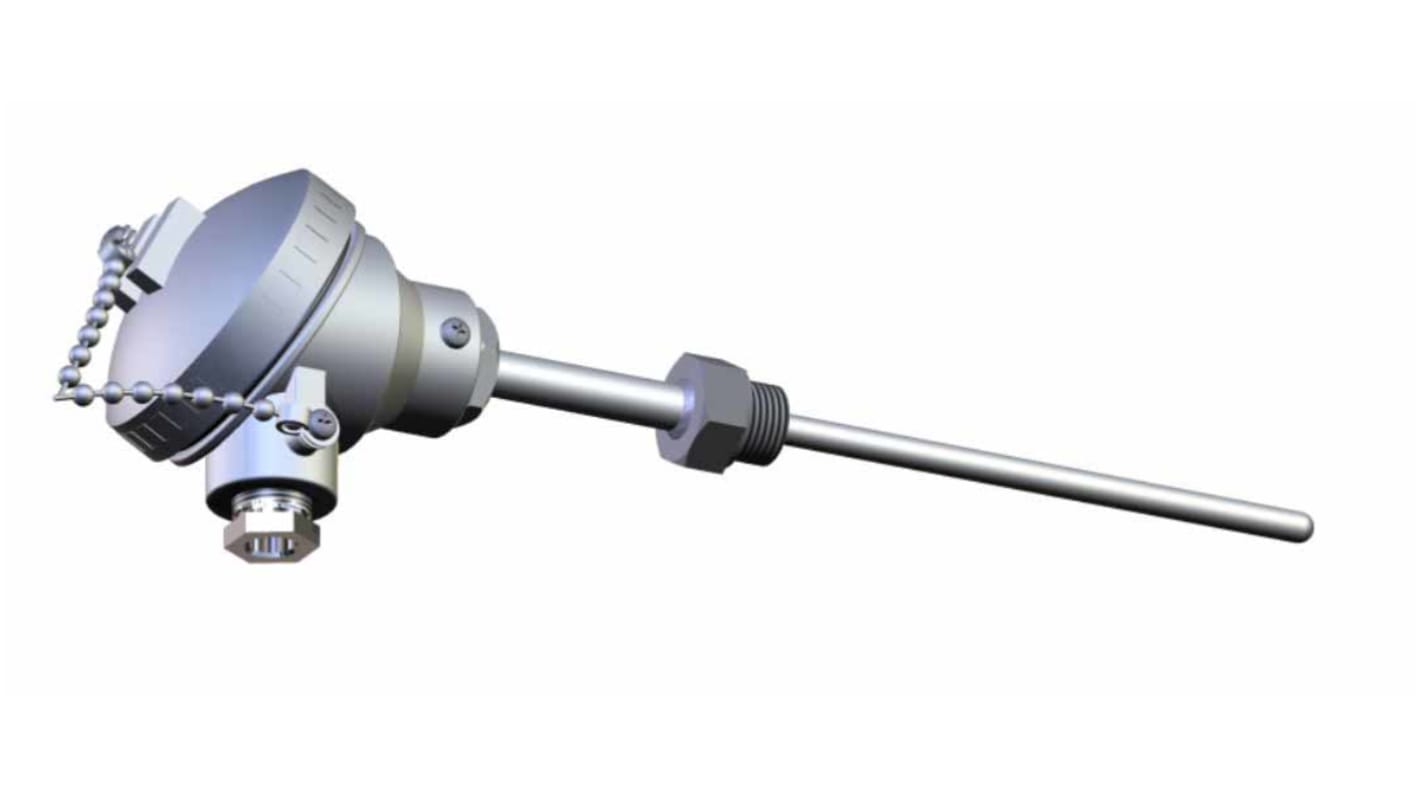

RS PRO Type K Thermocouple 515mm Length, 8mm Diameter → +800°C

View all Thermocouples

Subtotal (1 unit)*

£168.02

(exc. VAT)

£201.62

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 4 unit(s) shipping from 27 October 2025
  • Plus 999,999,995 unit(s) shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£168.02

*price indicative

RS Stock No.:
621-2451
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Thermocouple Type

K

Probe Diameter

8mm

Probe Length

515mm

Maximum Temperature Sensed

+800°C

Probe Material

316L Stainless Steel

Termination Type

Connection Head

Standards Met

RoHS Compliant

Response Time

20 s

COO (Country of Origin):
FR

Type K probe and KNE terminal head assembly c/w 75 mm extension


Available with 150, 250 and 500mm versions
8 mm stainless steel sheath
Insulated tip junction
Aluminium IP67 terminal head
in. BSP(P) process connection
Screw lead with retaining chain
Terminal block is included
Cable entry via M20 cable gland
6 mm replaceable spring-loaded inserts also available

Note

Replacement spring loaded inserts are supplied longer than the probes to allow insertion into the head.
