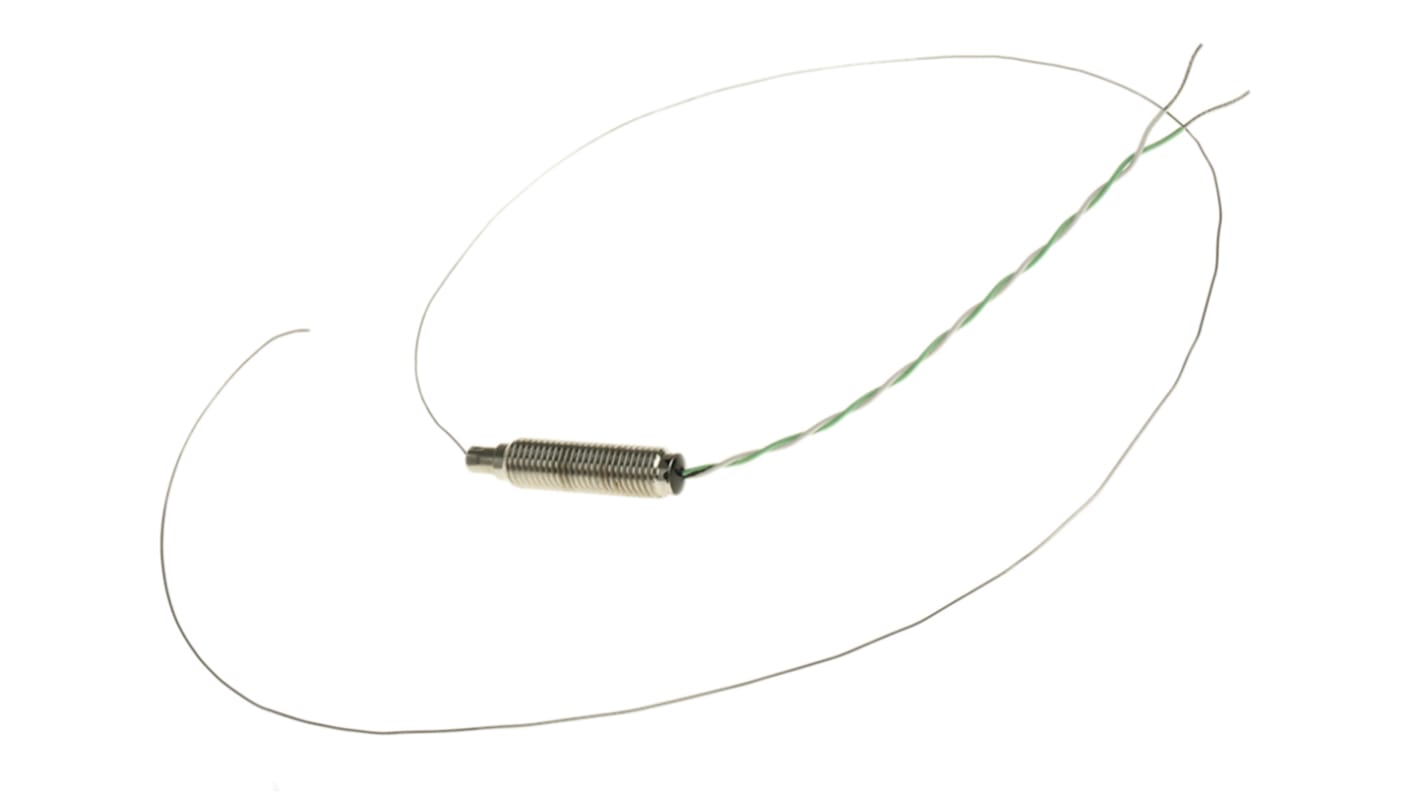

RS PRO Type K Mineral Insulated Thermocouple 500mm Length, 0.5mm Diameter → +750°C

View all Thermocouples
Bulk discount available

Subtotal (1 unit)*

£38.25

(exc. VAT)

£45.90

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 5 unit(s) ready to ship
  • Plus 3 unit(s) ready to ship from another location
  • Plus 20 unit(s) shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£38.25
5 - 9£37.11
10 +£35.58

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
RS PRO Type K Mineral Insulated Thermocouple 500mm Length, 0.5mm Diameter → +750°C
RS Stock No.
444-1253

Each

£36.69

(exc. VAT)

£44.03

(inc. VAT)

RS Stock No.:
444-1269
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Thermocouple Type

K

Probe Diameter

0.5mm

Probe Length

500mm

Maximum Temperature Sensed

+750°C

Probe Material

Stainless Steel

Termination Type

Bare Wire Tail

Cable Length

100mm

Standards Met

IEC, RoHS Compliant

COO (Country of Origin):
GB

Type K Industrial Mineral Insulated Probe, Underground Junction


Type K Thermocouples is a device which measures temperatures, it’s made up from two wires which are different materials. When these two wires are joined together, they create an electrical junction. Once the temperature changes at this junction, it created a voltage which can then be interpreted and read as a temperature. This is commonly known as the “Seebeck Effect”.

Features & Benefits


• The measuring junction is insulated from the outer sheath

• Highly flexible sheath can be formed to suit many applications

• Three year warranty

• Has a choice of 310 stainless steel which has a great corrosion and oxidation resistance to suite a wide range of processes, satisfactory operates in sulphur bearing atmospheres OR Inconel® Alloy 600 sheath which has excellent oxidation resistance of up to 1100 °C

Typical Applications


• This Type K Industrial Mineral Probe with an ungrounded junction is suitable for corrosive media, although the thermal response tends to be slower than others.

• In some typical applications, where more than one thermocouple connects to an associated instrumentation it could be essential to incorporate insulation – this is to avoid spurious signals occurring in the measuring circuits.

Standards

Colour coded to IEC 584
