RS PRO Type K Nozzle Thermocouple 2m Length, M6 x 1mm Diameter, -60°C → +350°C

View all Thermocouples
Save 7% when you buy 100 units

Subtotal (1 unit)*

£36.85

(exc. VAT)

£44.22

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 6 unit(s) shipping from 17 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£36.85
10 - 99£35.42
100 +£34.13

*price indicative

RS Stock No.:
268-4503
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Thermocouple Type

K

Probe Diameter

M6 x 1mm

Probe Length

2m

Maximum Temperature Sensed

+350°C

Probe Material

Stainless Steel

Series

Nozzle Thermocouple

Termination Type

Miniature Plug

Cable Length

2m

Standards Met

ANSI, RoHS Compliant

Minimum Temperature Sensed

-60°C

RoHS Status: Exempt

COO (Country of Origin):
GB

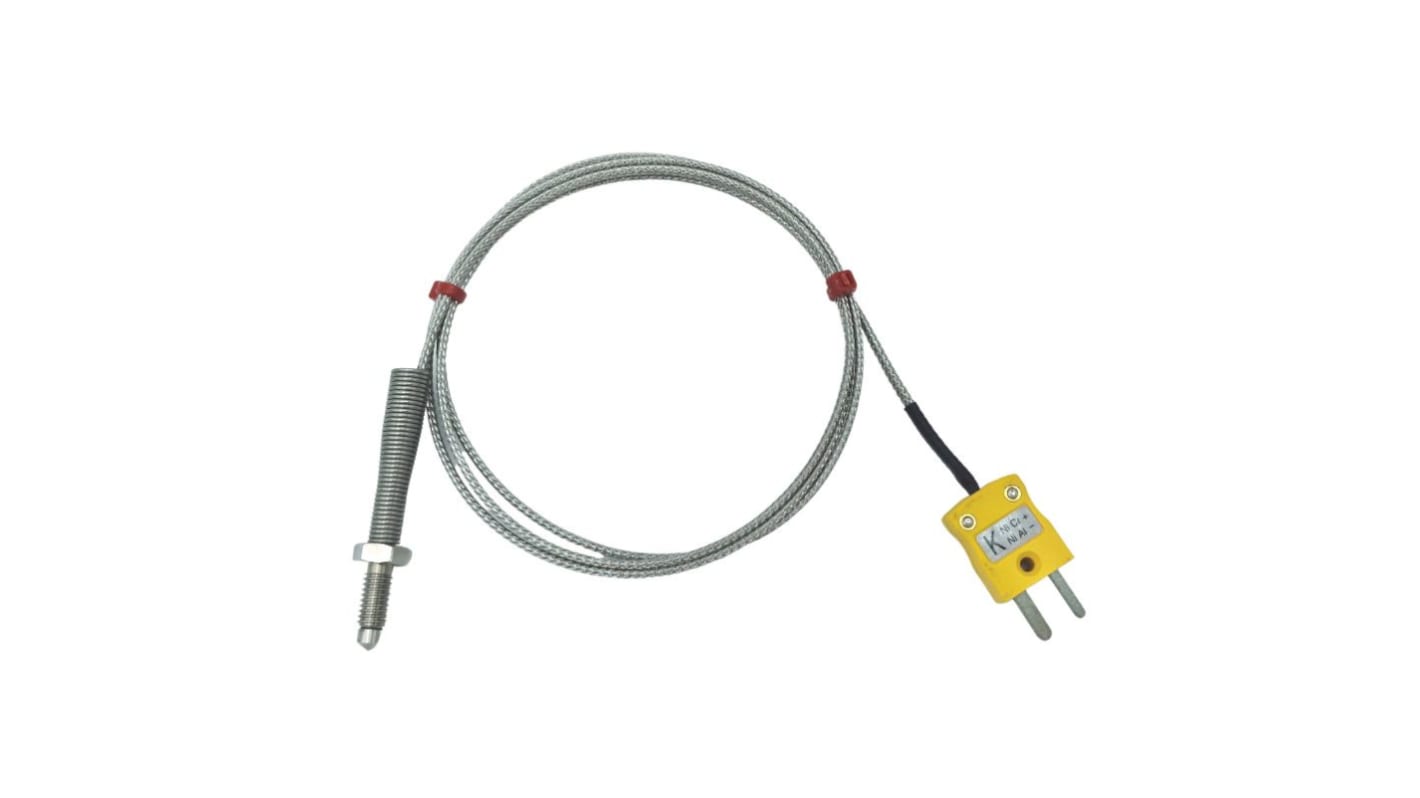

RS PRO ANSI Type K Nozzle Thermocouple with Threaded Bolt (M6 x 1mm thread)


A reliable and accurate Type K thermocouple featuring a nozzle sensor for quick and easy measurements inside pipes and other hollow structures for the precise temperature measurement of gas or fluids. Comprising of a thermocouple inside a Stainless Steel threaded bolt for direct attachment with the object being measured and Glassfibre insulated Stainless Steel braided cable terminating in a robust thermoplastic ANSI colour coded miniature plug.

The Type K thermocouples Glassfibre insulated Stainless Steel braided cable protects against wearing and mechanical stresses, and features excellent heat and thermal resistance and the nozzle sensor enables temperature measurements of -60 up to 350°C.

A hardwearing, reliable and accurate Type K tube thermocouple with a grounded hot junction increasing measuring accuracy and stability. Ideal for steam, gas and fluid temperature measurements and suitable for harsh environments.

Features and Benefits


Type K thermocouple

Nozzle style thermocouple

M6 x 1mm threaded bolt

Glassfibre insulation

Core/ strands 7/0.2mm (24AWG)

Cable length of 2m

Minimum temperature measurement -60°C

Maximum temperature measurement of +350°C

Miniature plug

ANSI colour coded

Standards and Approvals: ANSI MC96.1
