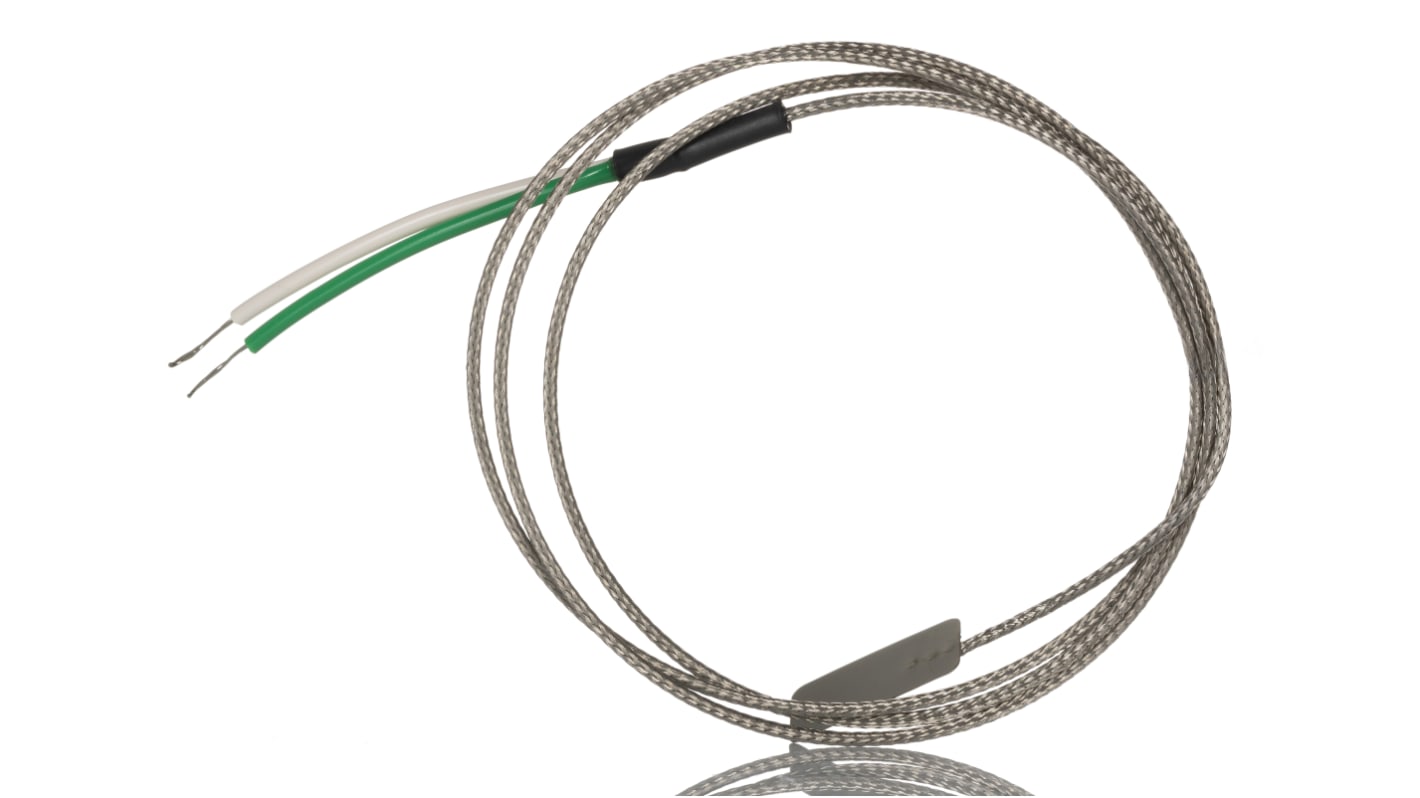

RS PRO Type K Leaf Thermocouple 1m Length, 13mm Diameter, -60°C → +350°C

View all Thermocouples
Bulk discount available

Subtotal (1 unit)*

£19.09

(exc. VAT)

£22.91

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 22 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£19.09
10 - 99£18.34
100 +£17.67

*price indicative

RS Stock No.:
268-4490
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Thermocouple Type

K

Probe Diameter

13mm

Probe Length

1m

Probe Material

Stainless Steel

Maximum Temperature Sensed

+350°C

Termination Type

Bare Wire Tail

Series

Flat Thermocouple

Cable Length

1m

Standards Met

IEC, RoHS Compliant

Minimum Temperature Sensed

-60°C

RoHS Status: Exempt

COO (Country of Origin):
GB

RS PRO IEC Type J Flat Thermocouple (25 x 13mm)


A flat Type J thermocouple, also referred to as a Leaf thermocouple, featuring a 0.2mm thick measuring pad for quick and easy surface measurements where space is limited or in between layers of material. Comprising of a thermocouple mounted on a Stainless Steel shim sheath attached to a Glassfibre insulated Stainless Steel braided cable terminating in IEC colour coded bare wire tails.

The Type J thermocouples Glassfibre insulated Stainless Steel braided cable protects against wearing and mechanical stresses, EMI with excellent heat and thermal resistance and the easy to clean Stainless Steel shim enables surface temperature measurements of -50 up to 350°C.

Featuring a grounded junction at the tip for increased stability, accuracy and a fast response time the IEC leaf thermocouple is hardwearing, perfect for temperature measurements where space is restricted and suitable for use in harsh industrial environments.

Features and Benefits


Type J thermocouple

Flat leaf style thermocouple

Stainless Steel shim (25 x 13 x 0.2mm)

Glassfibre insulation

Core/ strands 7/0.2mm (24AWG)

Class 1 tolerance

Cable length of 1m

Minimum temperature measurement -50°C

Maximum temperature measurement of +350°C

Bare tail termination

IEC colour coded

Standards and Approvals: IEC
