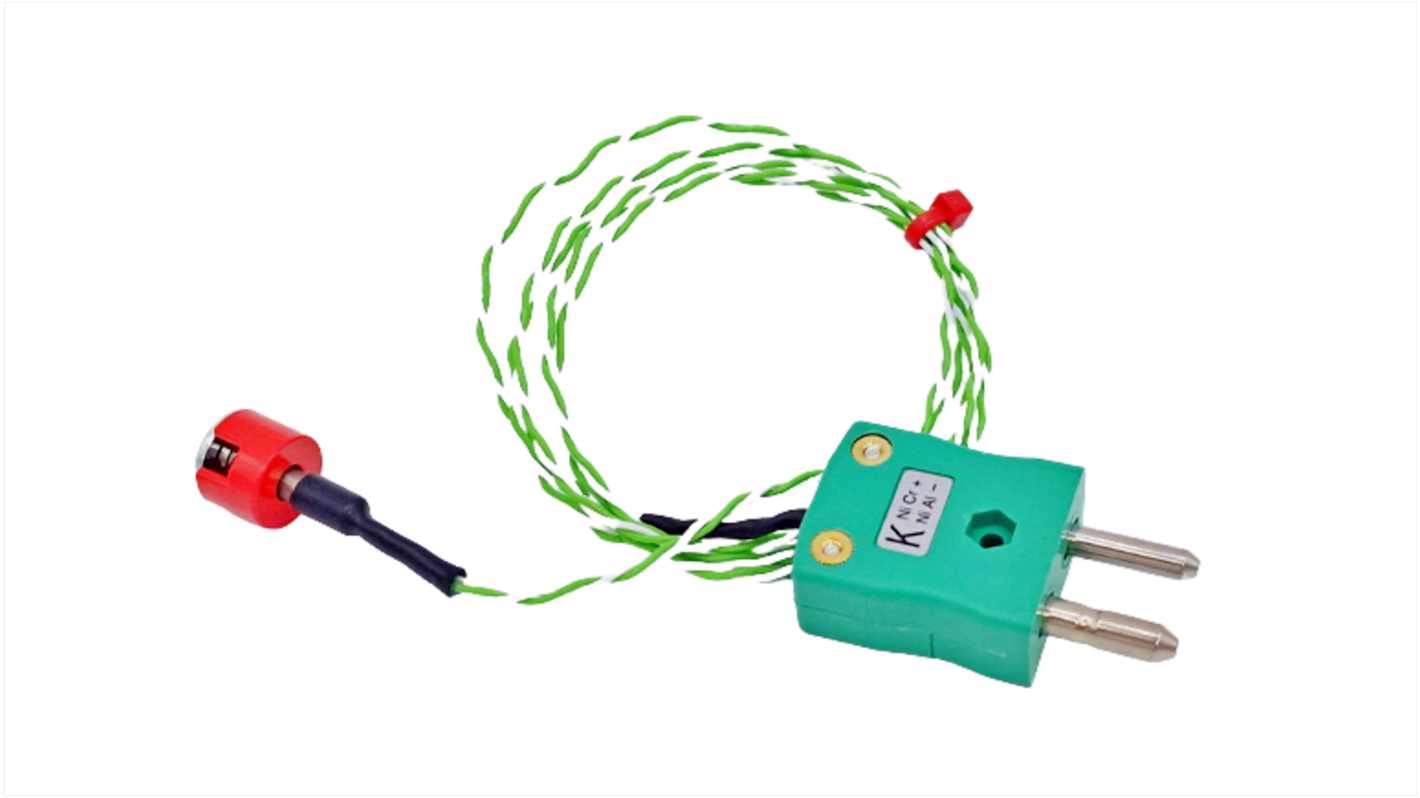

RS PRO Type K Button Magnet Thermocouple 1m Length, 12.5mm Diameter → +250°C

View all Thermocouples

Subtotal (1 unit)*

£56.41

(exc. VAT)

£67.69

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£56.41

*price indicative

RS Stock No.:
252-2427
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Thermocouple Type

K

Probe Diameter

12.5mm

Probe Length

1m

Maximum Temperature Sensed

+250°C

Probe Material

PTFE

Termination Type

Standard Plug

Cable Length

1m

Standards Met

IEC, RoHS Compliant

COO (Country of Origin):
GB

RS PRO Type Type K Thermocouple 12.5mm Diameter → +250°C


From RS PRO an IEC standard Type K thermocouple temperature sensor designed for taking surface temperature measurements. The thermocouple lead is made from twin-twist wire with a durable PTFE insulation. One end of the lead is terminated with a standard plug for a quick and easy connection. The other end of the wire is terminated with a in diameter button magnet designed for attaching ferrous metal surfaces. The junction of this thermocouple is grounded for a fast response time.

How does a Thermocouple Work?


A thermocouple is a sensor used to measure temperature in a range of different processes and consists of two wire legs made from different metals joined together at their two ends to form two junctions. The hot, or measuring junction is connected to the body whose temperature is going to be measured. The cold junction or reference junction is connected to a body of known temperature. When the measuring junction is placed on something hot a voltage or potential difference between this and the reference junction occurs. This voltage can then be converted into a temperature measurement using thermocouple reference tables. This process is also known as the Seebeck Effect

What is a Surface Thermocouple?


This thermocouple is designed for measuring the temperature on a surface. Most thermocouples have a sensing tip where there ends of the thermocouple wires are encased in sheaths or protection tubes which do not allow for measuring the temperature of a surface area. In surface temperature sensing thermocouples the exposed welded wire junction is housed in a magnet or adhesive patch which provides a true surface contact. This affixing method allows these thermocouples to be used on many types of surfaces including uneven and circular surfaces. They are also simple to use and easy to replace and position.

Features and Benefits


  • Button magnet thermocouple, Type K

  • PFA twin twisted wires featuring standard plug

  • Temperature rating -50°C to +250°C

  • Ideal for ferrous metal surface measurement

  • 12.5mm diameter button type magnet

  • Sensor range to 250°C
