RS PRO SYSCAL Type T Mineral Insulated Thermocouple 1000mm Length, 1.5mm Diameter, -100°C → +400°C
- RS Stock No.:
- 181-7318
- Brand:
- RS PRO
Subtotal (1 unit)*
£70.43
(exc. VAT)
£84.52
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 36 unit(s) ready to ship
- Plus 50 unit(s) shipping from 24 November 2025
- Plus 50 unit(s) shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £70.43 |
*price indicative
- RS Stock No.:
- 181-7318
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Thermocouple Type | T | |
Probe Diameter | 1.5mm | |
Probe Length | 1000mm | |
Maximum Temperature Sensed | +400°C | |
Probe Material | Stainless Steel | |
Termination Type | Miniature Plug | |
Standards Met | IEC, RoHS Compliant | |
Calibrated | SYSCAL | |
Minimum Temperature Sensed | -100°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Thermocouple Type T | ||
Probe Diameter 1.5mm | ||
Probe Length 1000mm | ||
Maximum Temperature Sensed +400°C | ||
Probe Material Stainless Steel | ||
Termination Type Miniature Plug | ||
Standards Met IEC, RoHS Compliant | ||
Calibrated SYSCAL | ||
Minimum Temperature Sensed -100°C | ||
- COO (Country of Origin):
- GB

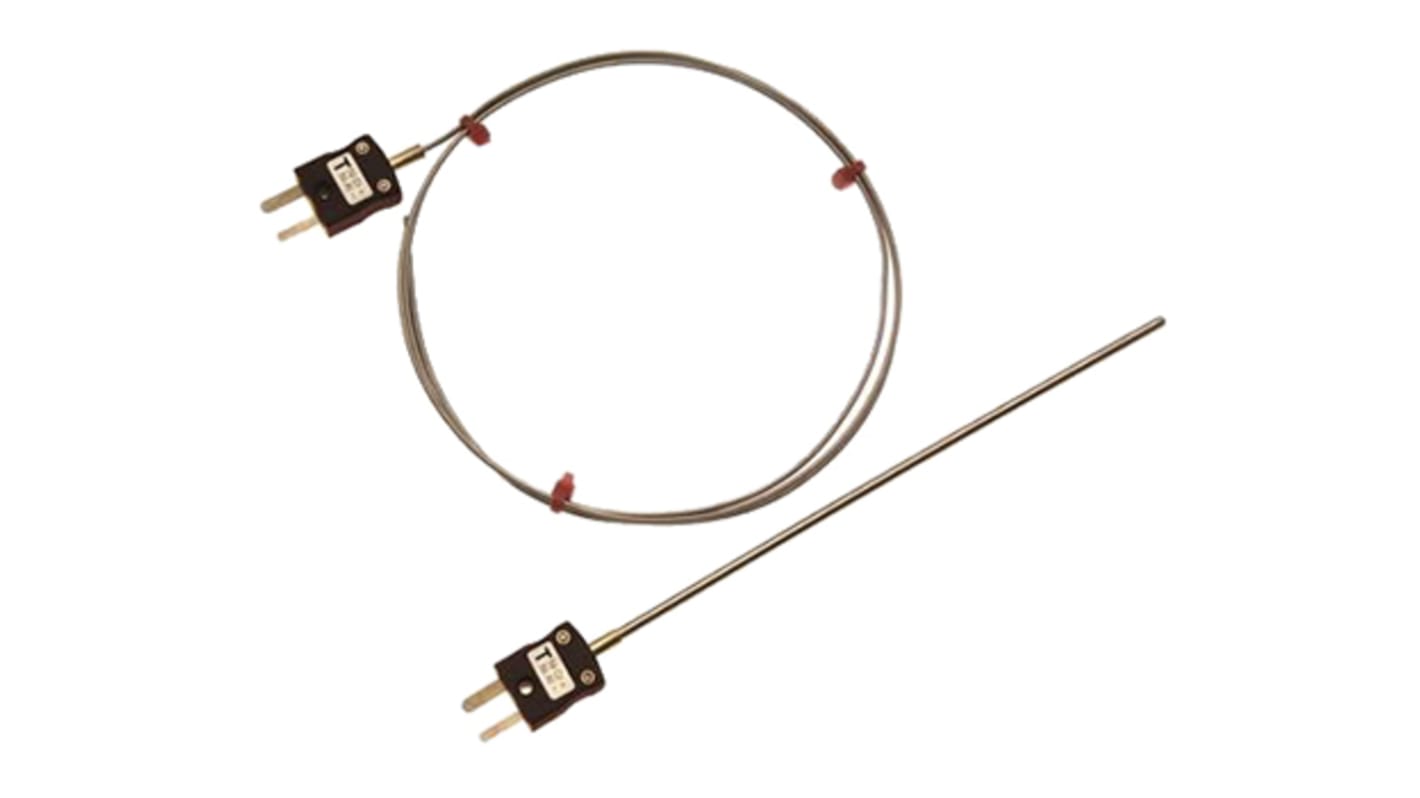

Type T Mineral Insulated Thermocouples with Miniature Plug
Type T mineral insulated thermocouple with insulated hot junction (un-grounded), specially designed to suit many applications and processes due to their high flexibility.
316 stainless steel sheath
Diameters include 1.0 and 1.5mm
Insulated hot junction
Probe temperature range from -100 ºC up to +400 ºC
Miniature flat pin plug, colour coded "brown" in accordance with IEC 584
Diameters include 1.0 and 1.5mm
Insulated hot junction
Probe temperature range from -100 ºC up to +400 ºC
Miniature flat pin plug, colour coded "brown" in accordance with IEC 584
