RS PRO Type K Exposed Junction Thermocouple 3m Length, 1/0.5mm Diameter → +250°C
- RS Stock No.:
- 136-5882
- Brand:
- RS PRO
15 In stock - FREE next working day delivery available
10 available from Europe for delivery within 1 working day(s).
Price Each
£16.91
(exc. VAT)
£20.29
(inc. VAT)
Units | Per unit |
---|---|
1 - 4 | £16.91 |
5 - 9 | £16.07 |
10 + | £15.23 |
- RS Stock No.:
- 136-5882
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

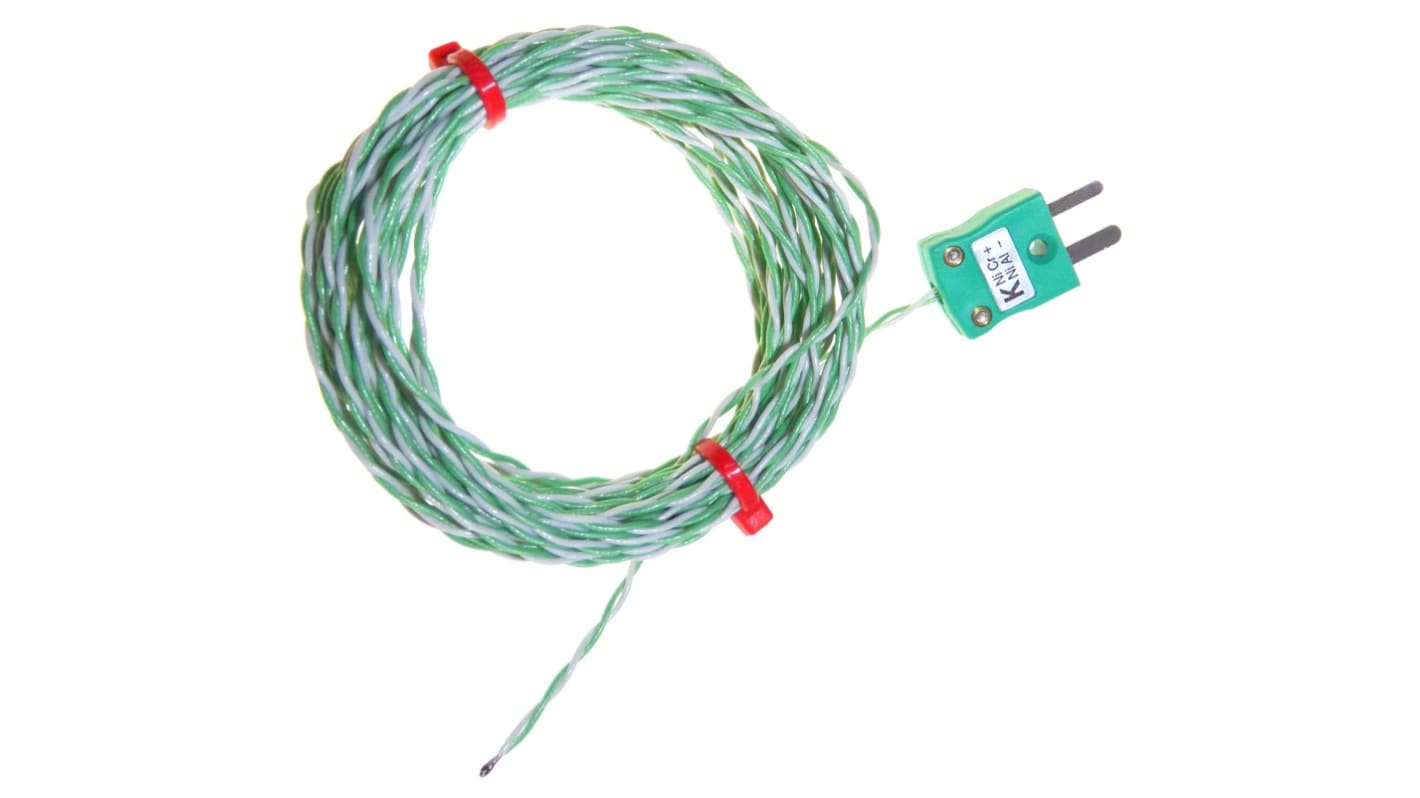

RS PRO Type K Thermocouple → +250°C
This Type K thermocouple from the RS PRO range is a robust device used to measure temperatures in scientific and engineering environments. It's part of our stringently tested RS PRO series.
Thermocouples twist two dissimilar metal wires into a single electrical junction. When temperature changes at the junction, the cable automatically takes a reading. It has an operating range of -75°C to +250°C, so it's useful for a variety of applications.
Type K thermocouples are general-purpose thanks to their small size and rapid response times. This cable features a single twin-twisted lead insulated with Teflon® PFA, which protects against degradation and prolongs its working life.
Widely deployed as temperature management tools, thermocouples like this one can measure the temperature of engines, turbines and other industrial machinery. It's received class 1 cable specification in accordance with BS EN 60584-3:2008, and it meets IEC 584 Class 1 making it a safe thermocouple.
Thermocouples twist two dissimilar metal wires into a single electrical junction. When temperature changes at the junction, the cable automatically takes a reading. It has an operating range of -75°C to +250°C, so it's useful for a variety of applications.
Type K thermocouples are general-purpose thanks to their small size and rapid response times. This cable features a single twin-twisted lead insulated with Teflon® PFA, which protects against degradation and prolongs its working life.
Widely deployed as temperature management tools, thermocouples like this one can measure the temperature of engines, turbines and other industrial machinery. It's received class 1 cable specification in accordance with BS EN 60584-3:2008, and it meets IEC 584 Class 1 making it a safe thermocouple.
Features and Benefits
• Type K thermocouple certified as IEC 584 Class 1
• Fast response, welded exposed junction
• Insulated with Teflon® PFA
• Miniature plug termination type
• Cable length of 3 m
• Maximum temperature sensed is +250°C
• Stringently tested to EN 60584-3:2008 and IEC 584-3
• Fast response, welded exposed junction
• Insulated with Teflon® PFA
• Miniature plug termination type
• Cable length of 3 m
• Maximum temperature sensed is +250°C
• Stringently tested to EN 60584-3:2008 and IEC 584-3
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
---|---|
Thermocouple Type | K |
Probe Diameter | 1/0.5mm |
Probe Length | 3m |
Maximum Temperature Sensed | +250°C |
Probe Material | PFA |
Termination Type | Miniature Plug |
Cable Length | 3m |
Standards Met | IEC, RoHS Compliant |
