TE Connectivity Type PT 1000 Thermocouple 5mm Length, 2mm Diameter, -50°C → +600°C
- RS Stock No.:
- 100-5978
- Mfr. Part No.:
- NB-PTCO-126
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£9.52
(exc. VAT)
£11.42
(inc. VAT)
- RS Stock No.:
- 100-5978
- Mfr. Part No.:
- NB-PTCO-126
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Thermocouple Type | PT 1000 | |
| Probe Diameter | 2mm | |
| Probe Length | 5mm | |
| Maximum Temperature Sensed | +600°C | |
| Termination Type | Solder | |
| Response Time | 0.35 (Water) s, 17 (Air) s | |
| Minimum Temperature Sensed | -50°C | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Thermocouple Type PT 1000 | ||
Probe Diameter 2mm | ||
Probe Length 5mm | ||
Maximum Temperature Sensed +600°C | ||
Termination Type Solder | ||
Response Time 0.35 (Water) s, 17 (Air) s | ||
Minimum Temperature Sensed -50°C | ||

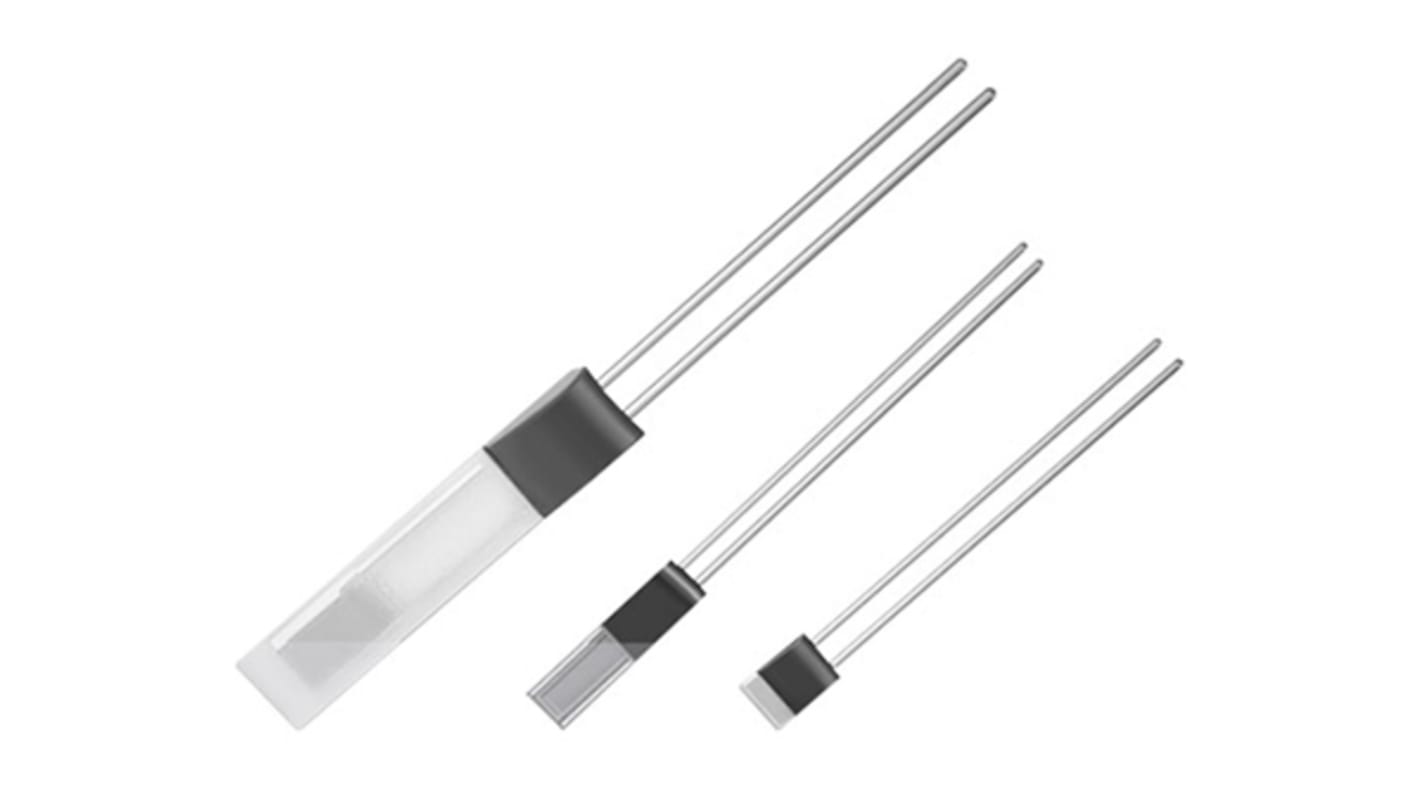

PTF Family - PT1000
Professional range of TE Connectivity temperature sensors from the PTF family. The sensors incorporate a structured platinum film on a ceramic substrate, passivated by glass coating. The sensors are a suitable solution for fast and precise feedback due to the small outline and low mass. Ideal for use with temperature feedback control, industrial applications and medical equipment.
Wide temperature range
Global interchangeability
Global interchangeability
