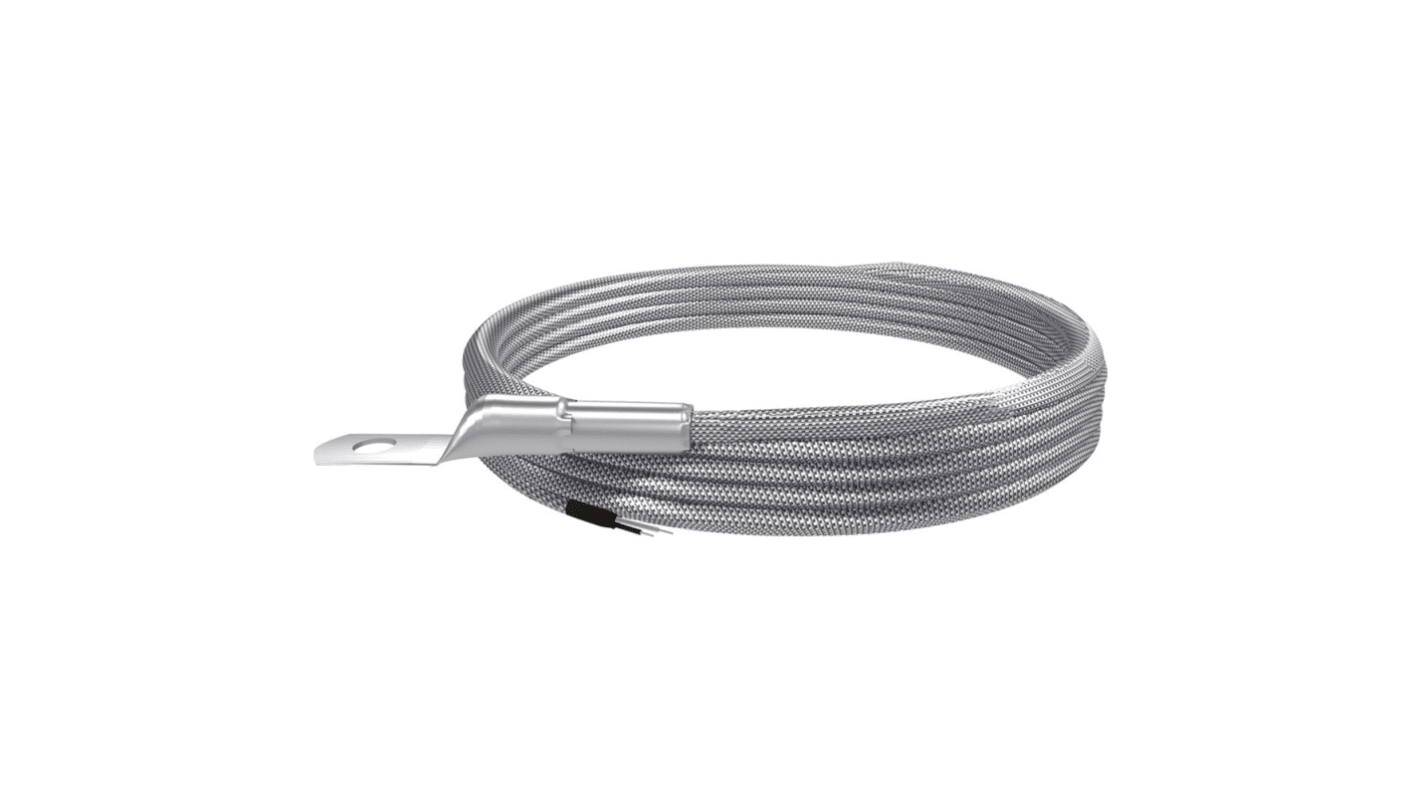

Emko TC Type K Thermocouple 12 mm Diameter, -50 °C → 400 °C Max

View all Thermocouples

Subtotal (1 unit)*

£13.93

(exc. VAT)

£16.72

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 15 unit(s), ready to ship from another location
Units
Per unit
1 +£13.93

*price indicative

RS Stock No.:
618-834
Mfr. Part No.:
TC-K01.J.SKP5
Brand:
Emko
Find similar products by selecting one or more attributes.
Select all

Brand

Emko

Product Type

Thermocouple

Thermocouple Type

K

Probe Diameter

12 mm

Probe Material

Nickel Chrome

Maximum Temperature Sensed

400°C

Series

TC

Terminal Type

Cable

Cable Length

8mm

Standards/Approvals

DIN/IEC-584, DIN1.4301, RoHS

Minimum Temperature Sensed

-50°C

COO (Country of Origin):
TR
The Emko Type J Surface sensor features a maximum operating temperature reaches 400 °C with fibber‑glass + braided wire, or 200 °C with silicone + silicone (Si+Si) cables. Standard cable configurations include 2 x 0.22 mm² fibber‑glass plus braid or silicone-insulated. Installation is flexible with a 1/4 inch x 19 inch connector or 1/2 inch fitting nut, and electrically it offers 2 kV dielectric strength from device supply to module output, with insulation resistance above 999.9 MΩ

1 meter cable length

Protection tube is made from either AISI304 or AISI316 stainless steel
