Jumo901110 Thermocouple 500mm Length, , -200°C → +1200°C
- RS Stock No.:
- 279-069
- Mfr. Part No.:
- 901110/10-1043-22-500-669-27/000
- Brand:
- Jumo
Subtotal (1 unit)*
£175.41
(exc. VAT)
£210.49
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £175.41 |
*price indicative
- RS Stock No.:
- 279-069
- Mfr. Part No.:
- 901110/10-1043-22-500-669-27/000
- Brand:
- Jumo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Jumo | |
| Probe Length | 500mm | |
| Maximum Temperature Sensed | +1200°C | |
| Probe Material | Ceramic | |
| Termination Type | Push In | |
| Series | 901110 | |
| Minimum Temperature Sensed | -200°C | |
Select all | ||
|---|---|---|
Brand Jumo | ||
Probe Length 500mm | ||
Maximum Temperature Sensed +1200°C | ||
Probe Material Ceramic | ||
Termination Type Push In | ||
Series 901110 | ||
Minimum Temperature Sensed -200°C | ||
- COO (Country of Origin):
- DE

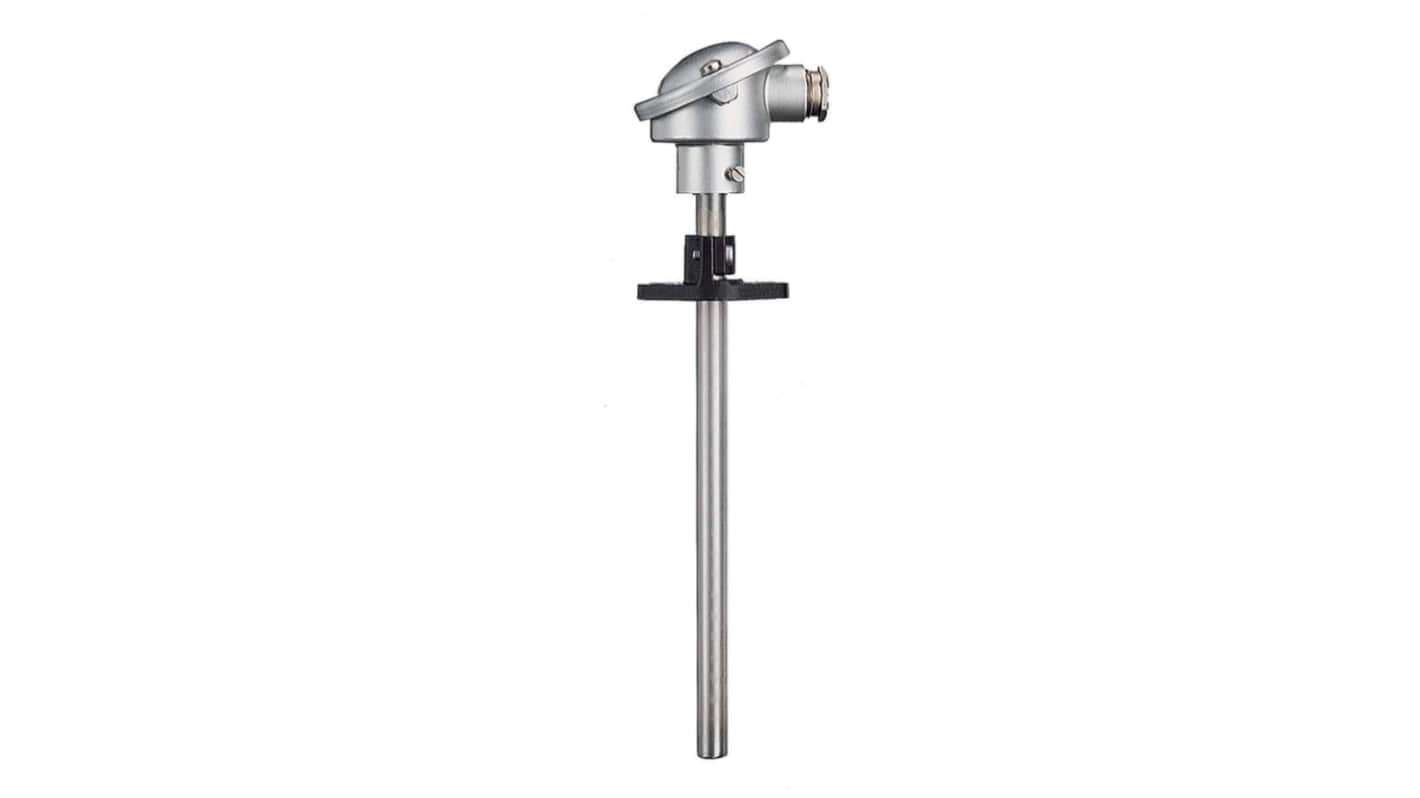

The Jumo Pluggable thermocouple is suitable for temperature measurement in liquid and gaseous media by means of the Seebeck effect. The continuous protection tube is made of heat-resistant steel, material 1.4749 (operating temperature up to +1150 °C). The thermocouple can therefore be used excellently in heating, furnace and apparatus engineering. The single thermocouple 1x NiCr-Ni K according to DIN EN 60584 (class 2) is designed for temperatures from -200 to +1150 °C. The connection head in form A is made of die-cast aluminium.
It has an M20 x 1.5 cable gland
It can withstand ambient temperatures from -40 to +100 °C
The protective tube has a dimension of 22 x 500 mm
A stop flange (DIN 43734) serves as the process connection
It can withstand ambient temperatures from -40 to +100 °C
The protective tube has a dimension of 22 x 500 mm
A stop flange (DIN 43734) serves as the process connection
