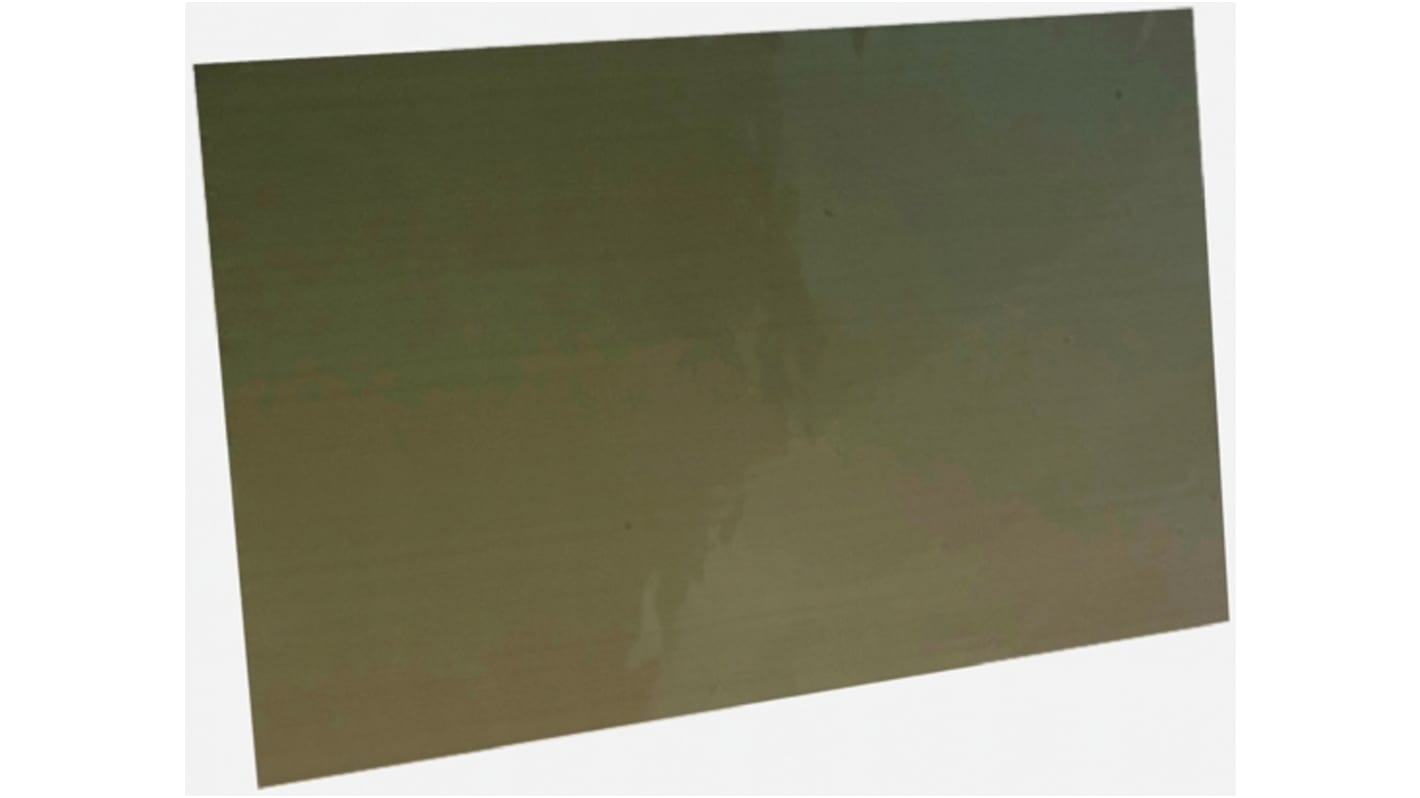

Intelligent LED Solutions ILA-TIM-XXXX-YY Series Self-Adhesive Thermal Interface Sheet, 0.13 mm Thick, 240 W/mK, Timber

View all Thermal Pads

Subtotal (1 unit)*

£18.92

(exc. VAT)

£22.70

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 10 unit(s) shipping from 19 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£18.92

*price indicative

RS Stock No.:
780-5837
Mfr. Part No.:
ILA-TIM-17FL-215X194-0A
Brand:
Intelligent LED Solutions
Find similar products by selecting one or more attributes.
Select all

Brand

Intelligent LED Solutions

Product Type

Thermal Interface Sheet

Thickness

0.13mm

Thermal Conductivity

240W/mK

Self-Adhesive

Yes

Trade Name

TIM

Hardness

Shore A 85

Conductive Material

Timber

Standards/Approvals

RoHS

Colour

Pewter

Series

ILA-TIM-XXXX-YY

Minimum Operating Temperature

-240°C

Maximum Operating Temperature

300°C

COO (Country of Origin):
GB

ILS Thermal Interface Materials (TIM) - LED Floods


The ILA-TIM-xxFL series, from Intelligent LED Solutions, are a family of thermal heat pads designed specifically for LED Floods. They are available in non-adhesive or single/double sided adhesive options.

ILS' family of LED floods are very powerful LED light sources with integrated control and command. They utilise OSRAM's OSLON SSL® series, Dragons series or Stanley Electric's CRI 95 series. They come in either 17, 27 or 72 LED options.

Features of the ILA-TIM-xxFL single-sided and non-adhesive:

Colour: pewter

0.13mm thick

Temperature range: -240°C to +300°C

Features of the ILA-TIM-xxFL double-sided:

Colour: cream

0.16mm thick

Temperature range: -240°C to +300°C

Thermal Interface Materials, Intelligent LED Solutions


The ILA-TIM-XXXX-YY series of high-performance, cost effective thermal Interface Material (TIM), from Intelligent LED Solutions, is designed for use with their standard LED array products (such as: 773-3482). The Thermal Interface material fills air pockets between the PCB and the heat sink surfaces, forming a continuous layer to improve the transfer of heat away from the LED.

Intelligent LED Solutions offers three versions of Thermal Interface Material: Double sided adhesive (suffix -2A), single sided adhesive (suffix -1A) and no adhesive (suffix -0A).
