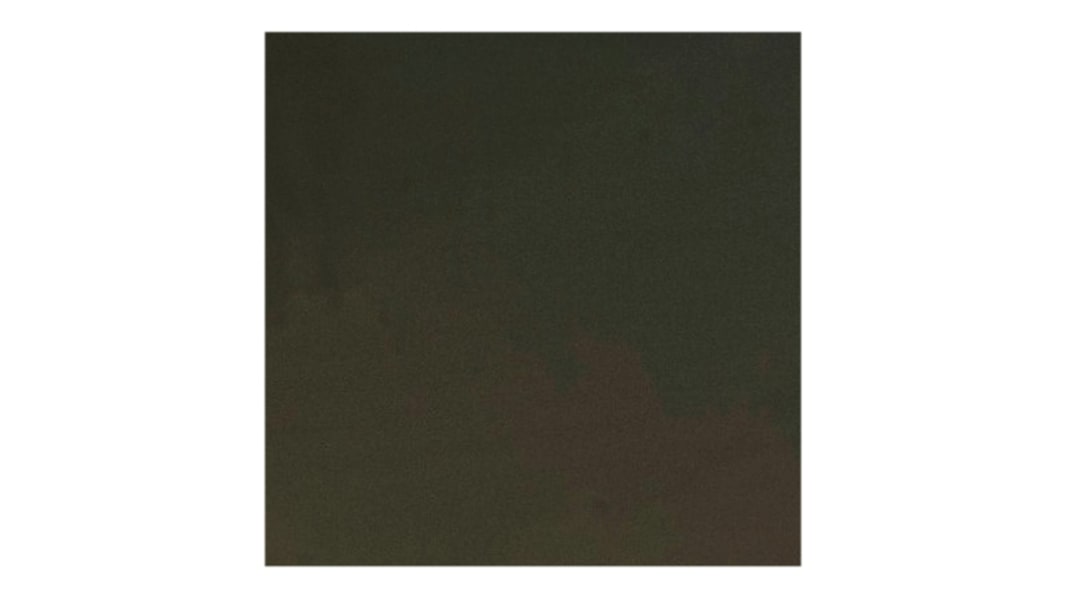

Intelligent LED Solutions ILA-TIM-XXXX-YY Series Self-Adhesive Thermal Interface Pad, 0.25 mm Thick, 5 W/mK, 38 mm,
- RS Stock No.:
- 122-5191
- Mfr. Part No.:
- ILA-TIM-LES33-1A
- Brand:
- Intelligent LED Solutions
Bulk discount available
Subtotal (1 pack of 4 units)*
£6.66
(exc. VAT)
£7.992
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 24 unit(s) ready to ship
- Plus 28 unit(s) ready to ship from another location
- Plus 100 unit(s) shipping from 07 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 4 - 16 | £1.665 | £6.66 |
| 20 - 36 | £1.545 | £6.18 |
| 40 + | £1.448 | £5.79 |
*price indicative
- RS Stock No.:
- 122-5191
- Mfr. Part No.:
- ILA-TIM-LES33-1A
- Brand:
- Intelligent LED Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Intelligent LED Solutions | |
| Product Type | Thermal Interface Pad | |
| Thickness | 0.25mm | |
| Thermal Conductivity | 5W/mK | |
| Self-Adhesive | Yes | |
| Trade Name | TIM | |
| Conductive Material | Graphite | |
| Width | 38mm | |
| Standards/Approvals | UL Flammability rating 94 VO | |
| Length | 38mm | |
| Colour | Pewter | |
| Series | ILA-TIM-XXXX-YY | |
| Minimum Operating Temperature | -240°C | |
| Maximum Operating Temperature | 300°C | |
| Select all | ||
|---|---|---|
Brand Intelligent LED Solutions | ||
Product Type Thermal Interface Pad | ||
Thickness 0.25mm | ||
Thermal Conductivity 5W/mK | ||
Self-Adhesive Yes | ||
Trade Name TIM | ||
Conductive Material Graphite | ||
Width 38mm | ||
Standards/Approvals UL Flammability rating 94 VO | ||
Length 38mm | ||
Colour Pewter | ||
Series ILA-TIM-XXXX-YY | ||
Minimum Operating Temperature -240°C | ||
Maximum Operating Temperature 300°C | ||
ILS Thermal Interface Materials (TIM) - SCOB LEDs
A range of TIM (Thermal Interface Material) pads from Intelligent LED Solutions intended for use with the Duris S8 & S10 series of SCOB LEDs. Thermally conductive pads provide an essential interface between the LED modules and their associated heatsinks - they help to ensure efficient operation and long operating life. The pads are available in a variety of sizes with both single- and double-sided adhesive options.
Thermal Interface Materials, Intelligent LED Solutions
The ILA-TIM-XXXX-YY series of high-performance, cost effective thermal Interface Material (TIM), from Intelligent LED Solutions, is designed for use with their standard LED array products (such as: 773-3482). The Thermal Interface material fills air pockets between the PCB and the heat sink surfaces, forming a continuous layer to improve the transfer of heat away from the LED.
Intelligent LED Solutions offers three versions of Thermal Interface Material: Double sided adhesive (suffix -2A), single sided adhesive (suffix -1A) and no adhesive (suffix -0A).
