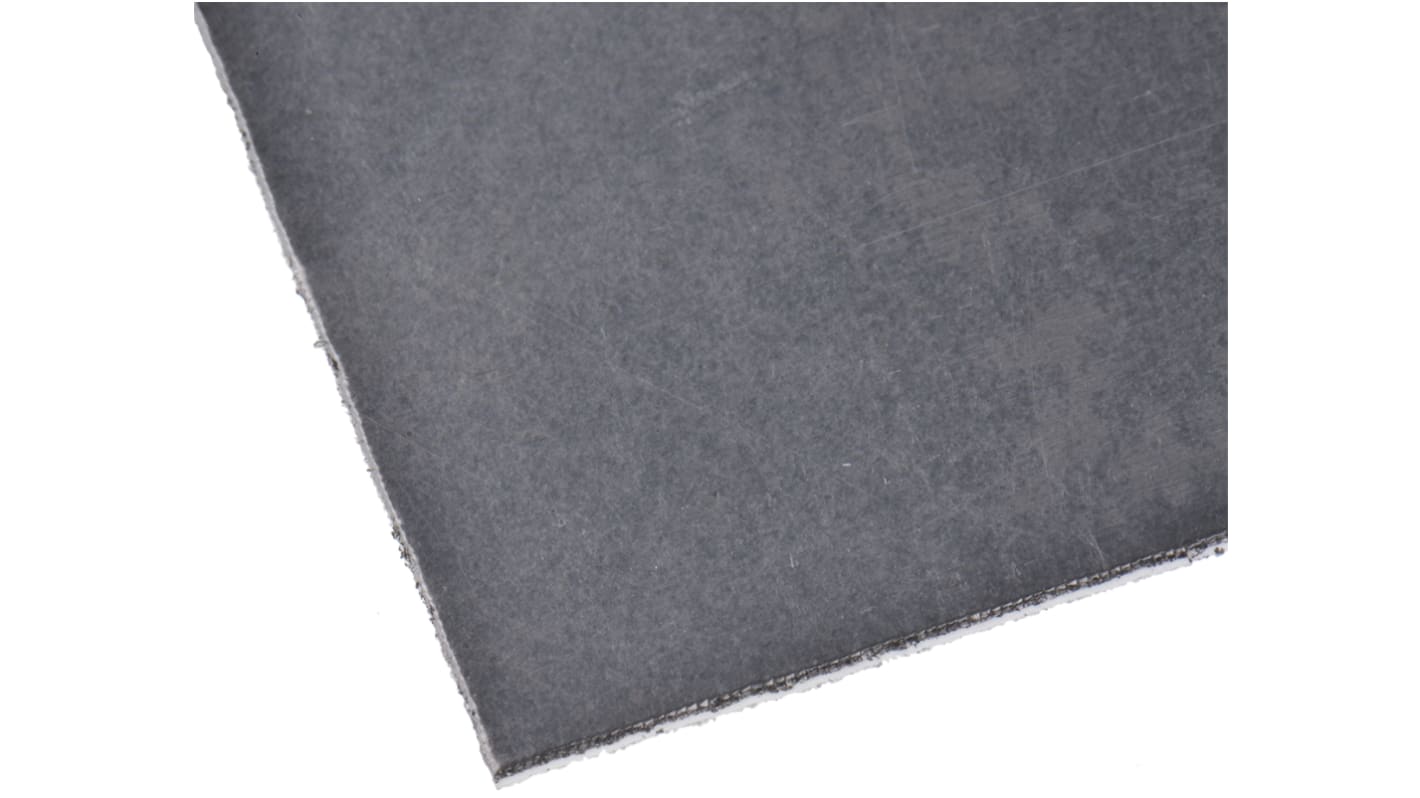

Intelligent LED Solutions Self-Adhesive Thermal Interface Sheet, 0.13mm Thick, 5 W/m·K, 240 W/m·K, TIM
- RS Stock No.:
- 780-5824
- Mfr. Part No.:
- ILA-TIM-72FL-235X170-1A
- Brand:
- Intelligent LED Solutions
Bulk discount available
Subtotal (1 unit)*
£30.72
(exc. VAT)
£36.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
- Plus 20 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £30.72 |
5 - 9 | £28.15 |
10 + | £25.99 |
*price indicative
- RS Stock No.:
- 780-5824
- Mfr. Part No.:
- ILA-TIM-72FL-235X170-1A
- Brand:
- Intelligent LED Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Intelligent LED Solutions | |
Thickness | 0.13mm | |
Thermal Conductivity | 5 W/m·K, 240 W/m·K | |
Material | TIM | |
Self-Adhesive | Yes | |
Minimum Operating Temperature | -240°C | |
Maximum Operating Temperature | +300°C | |
Hardness | Shore A 85 | |
Material Trade Name | TIM | |
Operating Temperature Range | -240 → +300 °C | |
Select all | ||
---|---|---|
Brand Intelligent LED Solutions | ||
Thickness 0.13mm | ||
Thermal Conductivity 5 W/m·K, 240 W/m·K | ||
Material TIM | ||
Self-Adhesive Yes | ||
Minimum Operating Temperature -240°C | ||
Maximum Operating Temperature +300°C | ||
Hardness Shore A 85 | ||
Material Trade Name TIM | ||
Operating Temperature Range -240 → +300 °C | ||
- COO (Country of Origin):
- GB
ILS Thermal Interface Materials (TIM) - LED Floods
The ILA-TIM-xxFL series, from Intelligent LED Solutions, are a family of thermal heat pads designed specifically for LED Floods. They are available in non-adhesive or single/double sided adhesive options.
ILS' family of LED floods are very powerful LED light sources with integrated control and command. They utilise OSRAM's OSLON SSL® series, Dragons series or Stanley Electric's CRI 95 series. They come in either 17, 27 or 72 LED options.
ILS' family of LED floods are very powerful LED light sources with integrated control and command. They utilise OSRAM's OSLON SSL® series, Dragons series or Stanley Electric's CRI 95 series. They come in either 17, 27 or 72 LED options.
Features of the ILA-TIM-xxFL single-sided and non-adhesive:
Colour: pewter
0.13mm thick
Temperature range: -240°C to +300°C
Features of the ILA-TIM-xxFL double-sided:
Colour: cream
0.16mm thick
Temperature range: -240°C to +300°C
Colour: pewter
0.13mm thick
Temperature range: -240°C to +300°C
Features of the ILA-TIM-xxFL double-sided:
Colour: cream
0.16mm thick
Temperature range: -240°C to +300°C
Thermal Interface Materials, Intelligent LED Solutions
The ILA-TIM-XXXX-YY series of high-performance, cost effective thermal Interface Material (TIM), from Intelligent LED Solutions, is designed for use with their standard LED array products (such as: 773-3482). The Thermal Interface material fills air pockets between the PCB and the heat sink surfaces, forming a continuous layer to improve the transfer of heat away from the LED.
Intelligent LED Solutions offers three versions of Thermal Interface Material: Double sided adhesive (suffix -2A), single sided adhesive (suffix -1A) and no adhesive (suffix -0A).
Intelligent LED Solutions offers three versions of Thermal Interface Material: Double sided adhesive (suffix -2A), single sided adhesive (suffix -1A) and no adhesive (suffix -0A).
