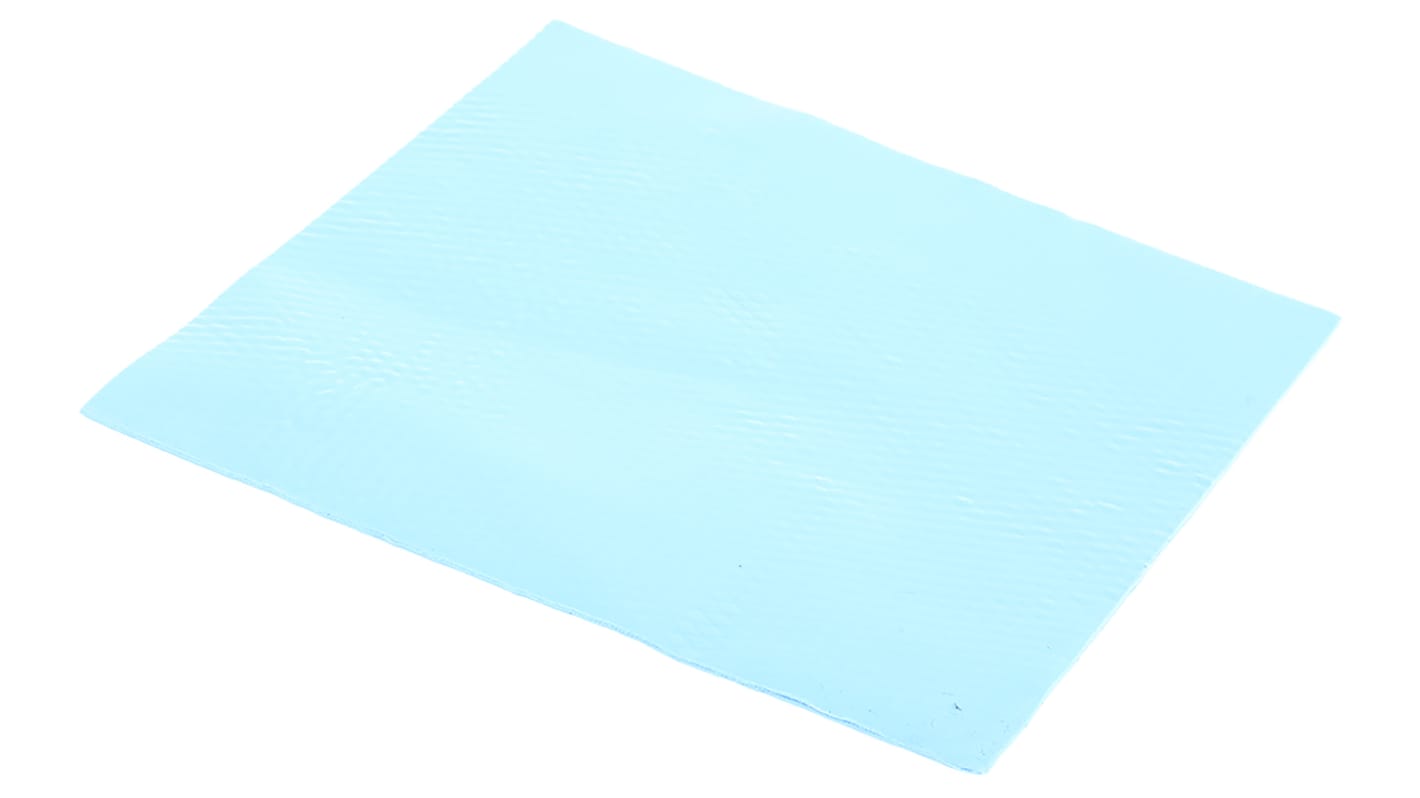

Bergquist GP3000S30 Series Self-Adhesive Thermal Interface Sheet, 3.175 mm Thick, 3 W/mK, 100 mm, 100mm, Gap Pad 3000S30
- RS Stock No.:
- 491-4161
- Mfr. Part No.:
- GP3000S30-0.040-02-00-100X100
- Brand:
- Bergquist
Bulk discount available
Subtotal (1 unit)*
£33.79
(exc. VAT)
£40.55
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 42 unit(s) shipping from 04 May 2026
- Plus 8 unit(s) shipping from 04 May 2026
- Plus 16 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 49 | £33.79 |
| 50 - 99 | £30.11 |
| 100 - 249 | £26.64 |
| 250 - 499 | £25.82 |
| 500 + | £25.11 |
*price indicative
- RS Stock No.:
- 491-4161
- Mfr. Part No.:
- GP3000S30-0.040-02-00-100X100
- Brand:
- Bergquist
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bergquist | |
| Product Type | Thermal Interface Sheet | |
| Thickness | 3.175mm | |
| Thermal Conductivity | 3W/mK | |
| Self-Adhesive | Yes | |
| Trade Name | Gap Pad 3000S30 | |
| Conductive Material | Gap Pad 3000S30 | |
| Hardness | Shore OO 30 | |
| Standards/Approvals | RoHS | |
| Width | 100mm | |
| Length | 100mm | |
| Colour | Light Blue | |
| Minimum Operating Temperature | -60°C | |
| Series | GP3000S30 | |
| Maximum Operating Temperature | 200°C | |
| Select all | ||
|---|---|---|
Brand Bergquist | ||
Product Type Thermal Interface Sheet | ||
Thickness 3.175mm | ||
Thermal Conductivity 3W/mK | ||
Self-Adhesive Yes | ||
Trade Name Gap Pad 3000S30 | ||
Conductive Material Gap Pad 3000S30 | ||
Hardness Shore OO 30 | ||
Standards/Approvals RoHS | ||
Width 100mm | ||
Length 100mm | ||
Colour Light Blue | ||
Minimum Operating Temperature -60°C | ||
Series GP3000S30 | ||
Maximum Operating Temperature 200°C | ||
Gap Pad® 3000S30
Electrical insulators and thermal conductors
Adapted for electrical insulation and as thermal joints on assemblies of components where the height varies
The material has excellent elasticity
The thicknesses available means that GAP Pads can be used when the texture of the surface varies
The Ultra Soft range has the same characteristics but is softer and more malleable
The GAP Pad XX00S series is designed for low pressure and stress applications
