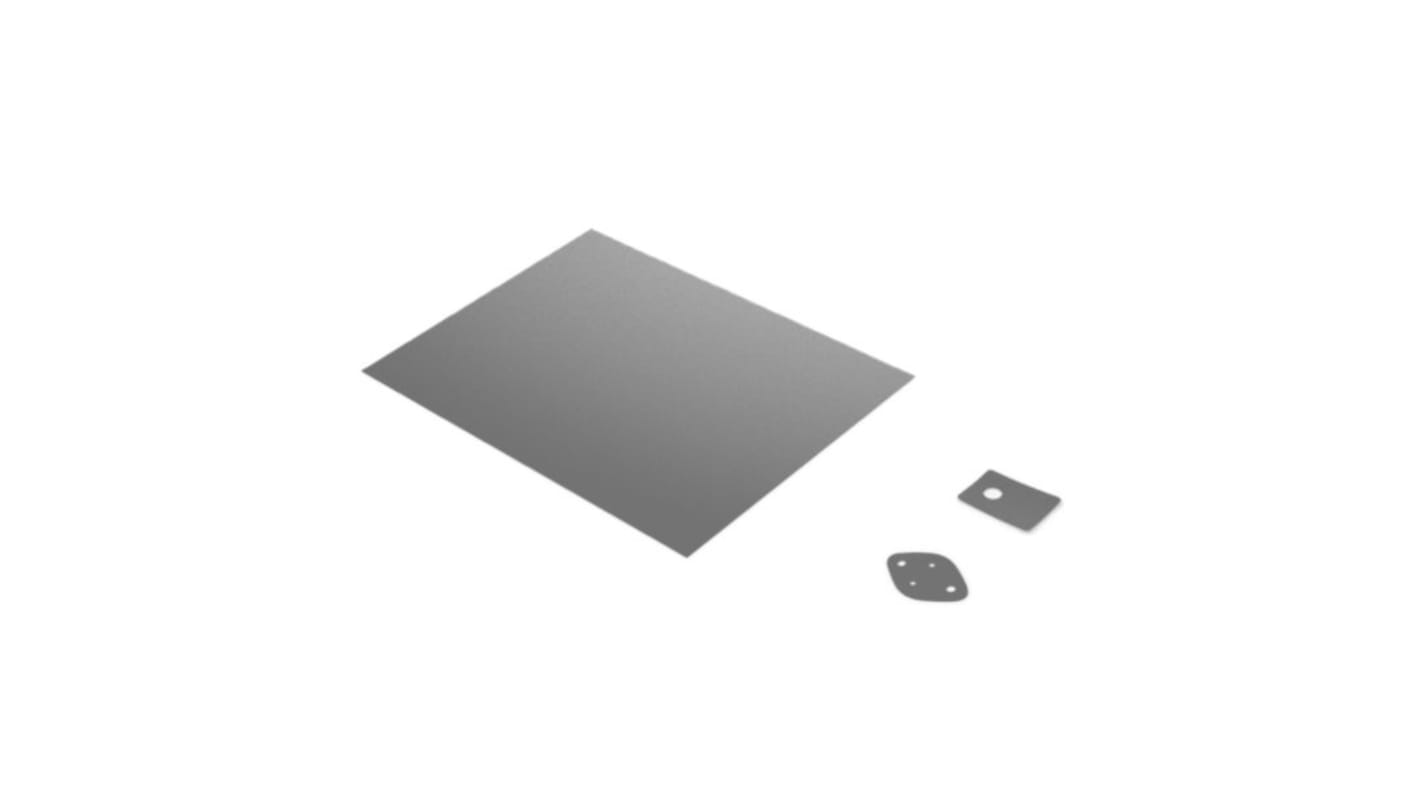

Bergquist 6000UL Series Self-Adhesive Thermal Gap Pad, 0.1in Thick, 6W/m·K, Silicone, 16 x 8 x 0.1in
- RS Stock No.:
- 282-6791
- Mfr. Part No.:
- GAP PAD TGP 6000ULM, 16in x 8in x 0.1 sh
- Brand:
- Bergquist
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 282-6791
- Mfr. Part No.:
- GAP PAD TGP 6000ULM, 16in x 8in x 0.1 sh
- Brand:
- Bergquist
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Bergquist | |
Dimensions | 16 x 8 x 0.1in | |
Thickness | 0.1in | |
Length | 16in | |
Width | 8in | |
Thermal Conductivity | 6W/m·K | |
Material | Silicone | |
Self-Adhesive | Yes | |
Series | 6000UL | |
Select all | ||
---|---|---|
Brand Bergquist | ||
Dimensions 16 x 8 x 0.1in | ||
Thickness 0.1in | ||
Length 16in | ||
Width 8in | ||
Thermal Conductivity 6W/m·K | ||
Material Silicone | ||
Self-Adhesive Yes | ||
Series 6000UL | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US
The Bergquist is an extremely soft gap filling material rated at a thermal conductivity of 6.0 W per mK. It is specially formulated for high performance applications requiring low assembly stress. The material offers exceptional thermal performance at low pressures due to the unique filler package and ultra low modulus resin formulation. It is highly conformal, even to surfaces with high roughness or topography, allowing for excellent interfacing and wet-out characteristics.
High-compliance
Low compression stress
Ultra low modulus
Low compression stress
Ultra low modulus
