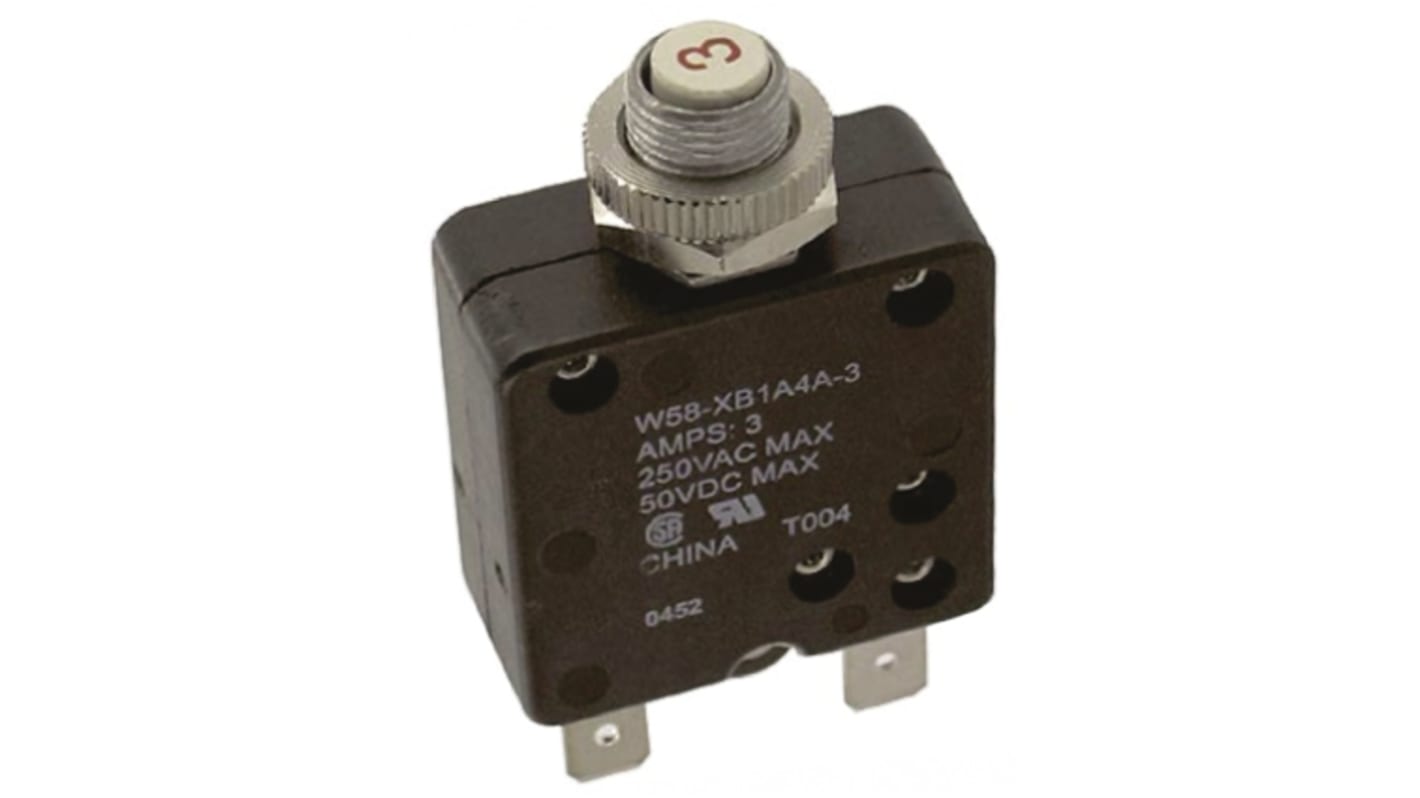

TE Connectivity 0.5 to 30 A W58 Thermal Circuit Breaker - 1-Pole, Direct, 3A Current Rating, 1000 A, 250V ac, 50 V dc
- RS Stock No.:
- 782-8029
- Distrelec Article No.:
- 302-67-950
- Mfr. Part No.:
- W58-XB1A4A-3
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£11.90
(exc. VAT)
£14.28
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 9 | £11.90 |
| 10 - 24 | £11.19 |
| 25 - 49 | £10.41 |
| 50 - 149 | £9.96 |
| 150 + | £9.65 |
*price indicative
- RS Stock No.:
- 782-8029
- Distrelec Article No.:
- 302-67-950
- Mfr. Part No.:
- W58-XB1A4A-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Thermal Circuit Breaker | |
| Current Rating | 3A | |
| Range | 0.5 to 30 A | |
| Series | W58 | |
| Number of Poles | 1 | |
| Width | 16.76mm | |
| Mount Type | Direct | |
| Mount Hole Size | 18.8 mm | |
| Terminal Type | Screw | |
| Tripping Mechanism | Thermal | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Characteristics | Thermal, Trip curve provided with trip at 145% of rated load at 25°C | |
| Standards/Approvals | RoHS, CE | |
| Rated AC Voltage | 250V ac | |
| Rated DC Voltage | 50V dc | |
| Break Time | Medium | |
| Breaking Capacity | 1000A | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Thermal Circuit Breaker | ||
Current Rating 3A | ||
Range 0.5 to 30 A | ||
Series W58 | ||
Number of Poles 1 | ||
Width 16.76mm | ||
Mount Type Direct | ||
Mount Hole Size 18.8 mm | ||
Terminal Type Screw | ||
Tripping Mechanism Thermal | ||
Reset Actuator Type Toggle Switch | ||
Tripping Characteristics Thermal, Trip curve provided with trip at 145% of rated load at 25°C | ||
Standards/Approvals RoHS, CE | ||
Rated AC Voltage 250V ac | ||
Rated DC Voltage 50V dc | ||
Break Time Medium | ||
Breaking Capacity 1000A | ||
- COO (Country of Origin):
- CN
TE Connectivity - W58 Series
