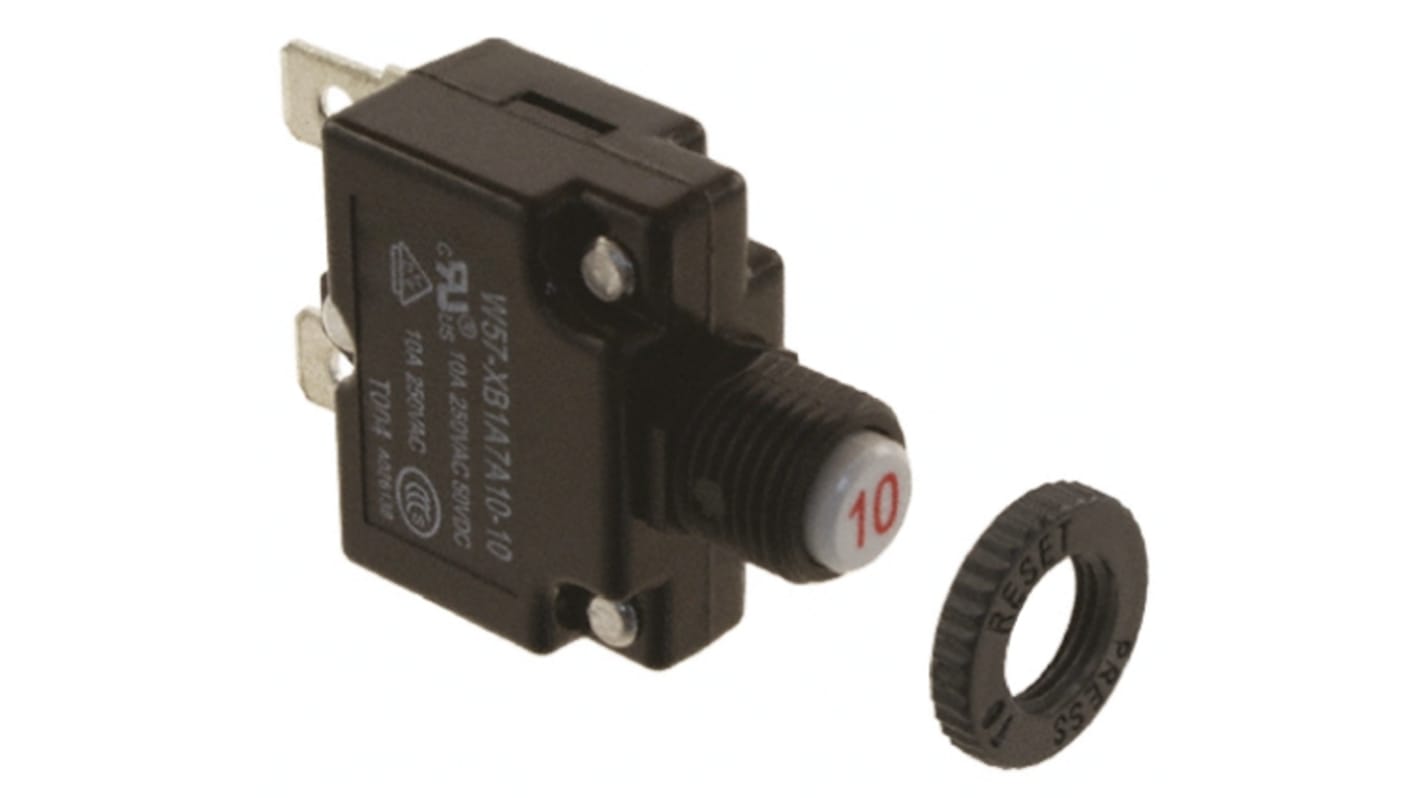

TE Connectivity W57 Thermal Circuit Breaker - 1-Pole, Direct, 5A Current Rating, 1000 A, 250V ac, 50 V dc
- RS Stock No.:
- 782-7821
- Distrelec Article No.:
- 303-51-050
- Mfr. Part No.:
- W57-XB1A7A10-5
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£5.89
(exc. VAT)
£7.07
(inc. VAT)
- RS Stock No.:
- 782-7821
- Distrelec Article No.:
- 303-51-050
- Mfr. Part No.:
- W57-XB1A7A10-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Current Rating | 5A | |
| Product Type | Thermal Circuit Breaker | |
| Series | W57 | |
| Number of Poles | 1 | |
| Width | 14.6mm | |
| Mount Type | Direct | |
| Terminal Type | Screw | |
| Mount Hole Size | 18.8 mm | |
| Tripping Mechanism | Thermal | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Characteristics | May trip between 101% and 134%, but must trip at 135% of rating within one hour at +25°C | |
| Standards/Approvals | CE, RoHS | |
| Depth | 29.2mm | |
| Rated AC Voltage | 250V ac | |
| Height | 46mm | |
| Break Time | Medium | |
| Breaking Capacity | 1000A | |
| Rated DC Voltage | 50V dc | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Current Rating 5A | ||
Product Type Thermal Circuit Breaker | ||
Series W57 | ||
Number of Poles 1 | ||
Width 14.6mm | ||
Mount Type Direct | ||
Terminal Type Screw | ||
Mount Hole Size 18.8 mm | ||
Tripping Mechanism Thermal | ||
Reset Actuator Type Toggle Switch | ||
Tripping Characteristics May trip between 101% and 134%, but must trip at 135% of rating within one hour at +25°C | ||
Standards/Approvals CE, RoHS | ||
Depth 29.2mm | ||
Rated AC Voltage 250V ac | ||
Height 46mm | ||
Break Time Medium | ||
Breaking Capacity 1000A | ||
Rated DC Voltage 50V dc | ||
TE Connectivity - W57 Series
