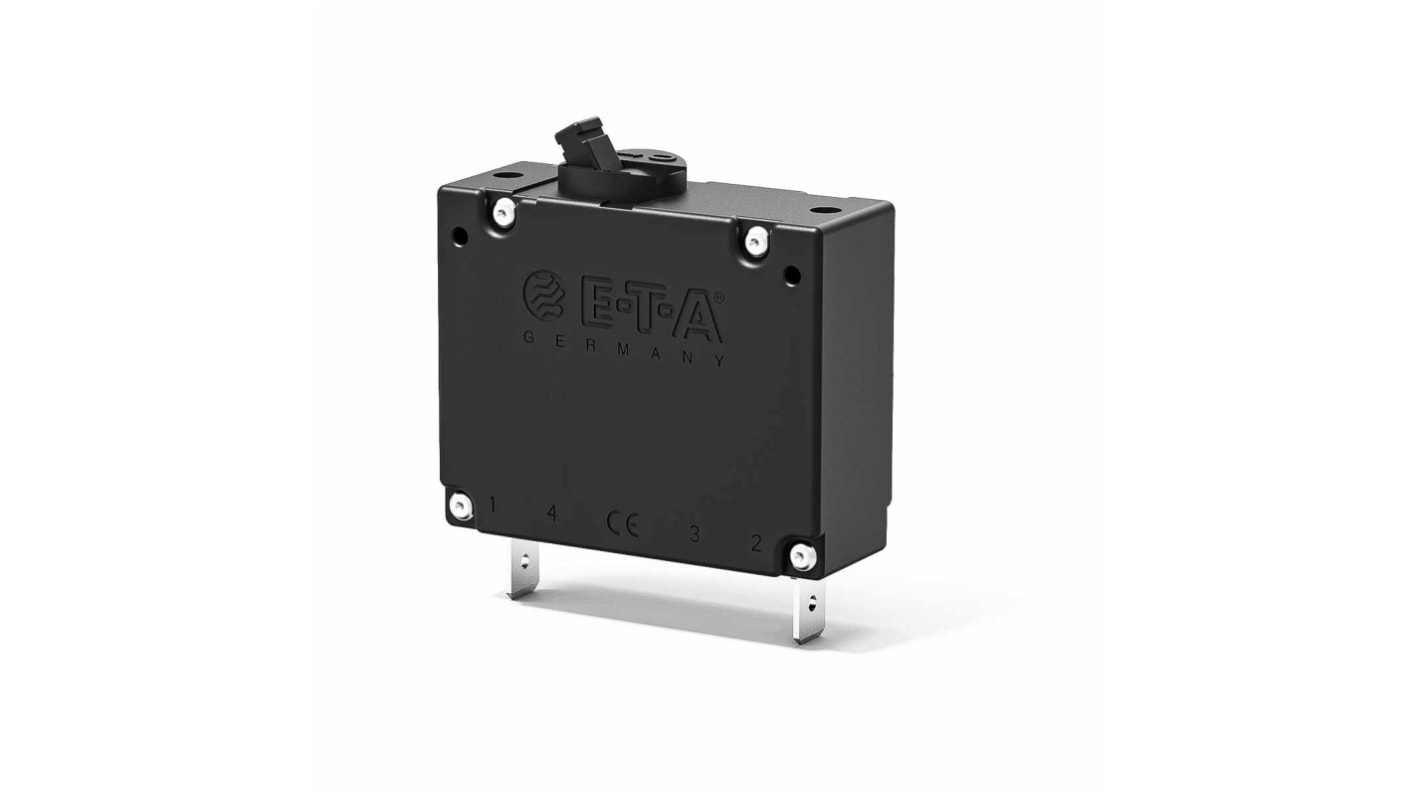

ETA Magnetic and Hydraulic-Magnetic Circuit Breaker 8340 Thermal Circuit Breaker - 1-Pole, Flange, 25 A Current Rating,

View all Thermal Breakers

Subtotal (1 unit)*

£48.08

(exc. VAT)

£57.70

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 10 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£48.08

*price indicative

RS Stock No.:
406-9485
Mfr. Part No.:
8340-F410-P1M1-A3H0-25A
Brand:
ETA
Find similar products by selecting one or more attributes.
Select all

Brand

ETA

Current Rating

25 A

Product Type

Thermal Circuit Breaker

Range

Magnetic and Hydraulic-Magnetic Circuit Breaker

Number of Poles

1

Series

8340

Width

19 mm

Mount Type

Flange

Terminal Type

Blade

Mount Hole Size

M4

Tripping Mechanism

Magnetic

Reset Actuator Type

Toggle Switch

Rated AC Voltage

415 V ac

Height

66mm

Depth

54mm

Standards/Approvals

IEC, BV, EN, UL, CSA, VDE

Breaking Capacity

1200A

Rated DC Voltage

80 V dc

COO (Country of Origin):
DE

Panel Mounting Magnetic CBE, 8340 Series Circuit Breaker


Single pole magnetic hydraulic CBE with trip free snap action mechanism with toggle actuation.

Industry standard dimensions with medium delay for most applications.

Typically used on control equipment, communication systems, transportation (rail) and power supplies.

Can be used as DC curve circuit breaker up to 80 Vdc

IEC classification S/HM

Thermal Magnetic Convertible


All CBEs have blade terminals and have an insulation resistance greater than 100MΩ (MegaOhms).

Note

These CBE's are designed specifically for equipment/systems and should not be confused with large MCB's intended to protect distribution wiring against catastrophic faults.
