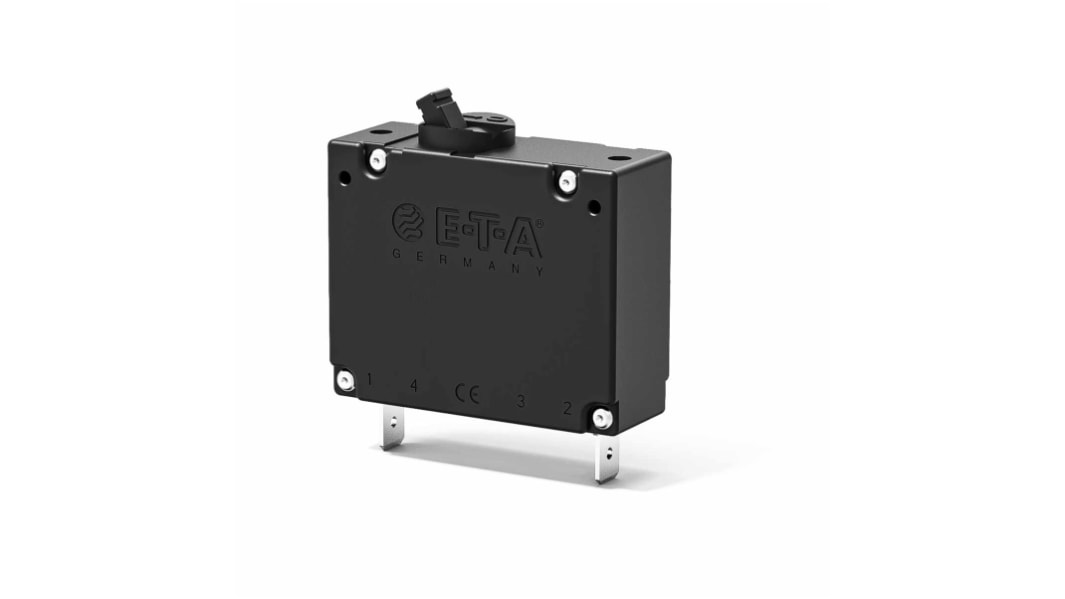

ETA Thermal Circuit Breaker - 8340 Single Pole 80V dc Voltage Rating Flange Mount, 15A Current Rating
- RS Stock No.:
- 273-4648
- Mfr. Part No.:
- 8340-F410-P1M1-A3H0-15A
- Brand:
- ETA
Bulk discount available
Subtotal (1 unit)*
£60.10
(exc. VAT)
£72.12
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 3 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £60.10 |
| 10 - 24 | £57.89 |
| 25 - 49 | £55.77 |
| 50 - 99 | £53.91 |
| 100 + | £52.11 |
*price indicative
- RS Stock No.:
- 273-4648
- Mfr. Part No.:
- 8340-F410-P1M1-A3H0-15A
- Brand:
- ETA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ETA | |
| Current Rating | 15A | |
| Number of Poles | 1 | |
| Voltage Rating | 80V dc | |
| Width | 19mm | |
| Series | 8340 | |
| Reset Actuator Type | Toggle Switch | |
| Mounting Style | Flange Mount | |
| Circuit Breaker Type | Thermal Magnetic Circuit Breaker | |
Select all | ||
|---|---|---|
Brand ETA | ||
Current Rating 15A | ||
Number of Poles 1 | ||
Voltage Rating 80V dc | ||
Width 19mm | ||
Series 8340 | ||
Reset Actuator Type Toggle Switch | ||
Mounting Style Flange Mount | ||
Circuit Breaker Type Thermal Magnetic Circuit Breaker | ||
- COO (Country of Origin):
- DE
Panel Mounting Magnetic CBE, 8340 Series Circuit Breaker
Single pole magnetic hydraulic CBE with trip free snap action mechanism with toggle actuation.
Industry standard dimensions with medium delay for most applications.
Typically used on control equipment, communication systems, transportation (rail) and power supplies.
Can be used as DC curve circuit breaker up to 80 Vdc
IEC classification S/HM
Industry standard dimensions with medium delay for most applications.
Typically used on control equipment, communication systems, transportation (rail) and power supplies.
Can be used as DC curve circuit breaker up to 80 Vdc
IEC classification S/HM
Note
These CBE's are designed specifically for equipment/systems and should not be confused with large MCB's intended to protect distribution wiring against catastrophic faults.
Approvals
UL; CSA; VDE (EN60934); BV; QPL
Thermal Magnetic Convertible
All CBEs have blade terminals and have an insulation resistance greater than 100MΩ (MegaOhms).
