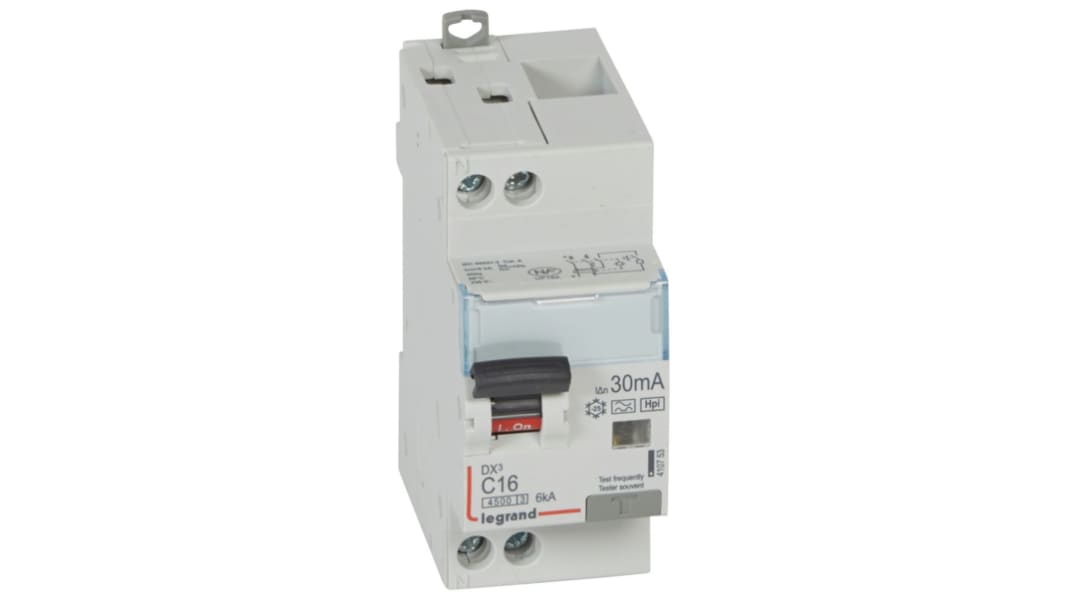

Legrand Circuit Breaker - 2-Pole, DIN Rail, 30mA Current Rating, 4500 A, 230V ac
- RS Stock No.:
- 255-2327
- Mfr. Part No.:
- 410753
- Brand:
- Legrand
Subtotal (1 unit)*
£300.55
(exc. VAT)
£360.66
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1 unit(s) shipping from 29 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £300.55 |
*price indicative
- RS Stock No.:
- 255-2327
- Mfr. Part No.:
- 410753
- Brand:
- Legrand
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Legrand | |
| Product Type | Circuit Breaker | |
| Current Rating | 30mA | |
| Number of Poles | 2 | |
| Width | 35.6mm | |
| Mount Type | DIN Rail | |
| Terminal Type | Screw | |
| Depth | 71.5mm | |
| Rated AC Voltage | 230V ac | |
| Height | 83mm | |
| Standards/Approvals | EN/IEC 61009-1,IEC 529 / EN 60529 and NF 20-010 | |
| Breaking Capacity | 4500A | |
| Select all | ||
|---|---|---|
Brand Legrand | ||
Product Type Circuit Breaker | ||
Current Rating 30mA | ||
Number of Poles 2 | ||
Width 35.6mm | ||
Mount Type DIN Rail | ||
Terminal Type Screw | ||
Depth 71.5mm | ||
Rated AC Voltage 230V ac | ||
Height 83mm | ||
Standards/Approvals EN/IEC 61009-1,IEC 529 / EN 60529 and NF 20-010 | ||
Breaking Capacity 4500A | ||
- COO (Country of Origin):
- FR
The Legrand residual current circuit breaker with overload with positive contact indication for control, protection against short-circuits and overloads, and isolation of electrical circuits, protecting people from direct and indirect contact and protecting installations from insulation faults.
The neutral pole provides isolation for the neutral circuit
