PTR HARTMANN Test Pin, Gold, 24.0A, Gold Plated Plated Contact

View all Test Pins
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
285-7712
Distrelec Article No.:
300-19-750
Mfr. Part No.:
1060/G-DX-3.0N-AU-2.3 C
Brand:
PTR HARTMANN
Find similar products by selecting one or more attributes.
Select all

Brand

PTR HARTMANN

Product Type

Test Pin

Colour

Gold

Current

24.0A

Contact Material

Gold Plated Brass

Contact Plating

Gold Plated

Plug/Socket Diameter

4.0mm

COO (Country of Origin):
CN

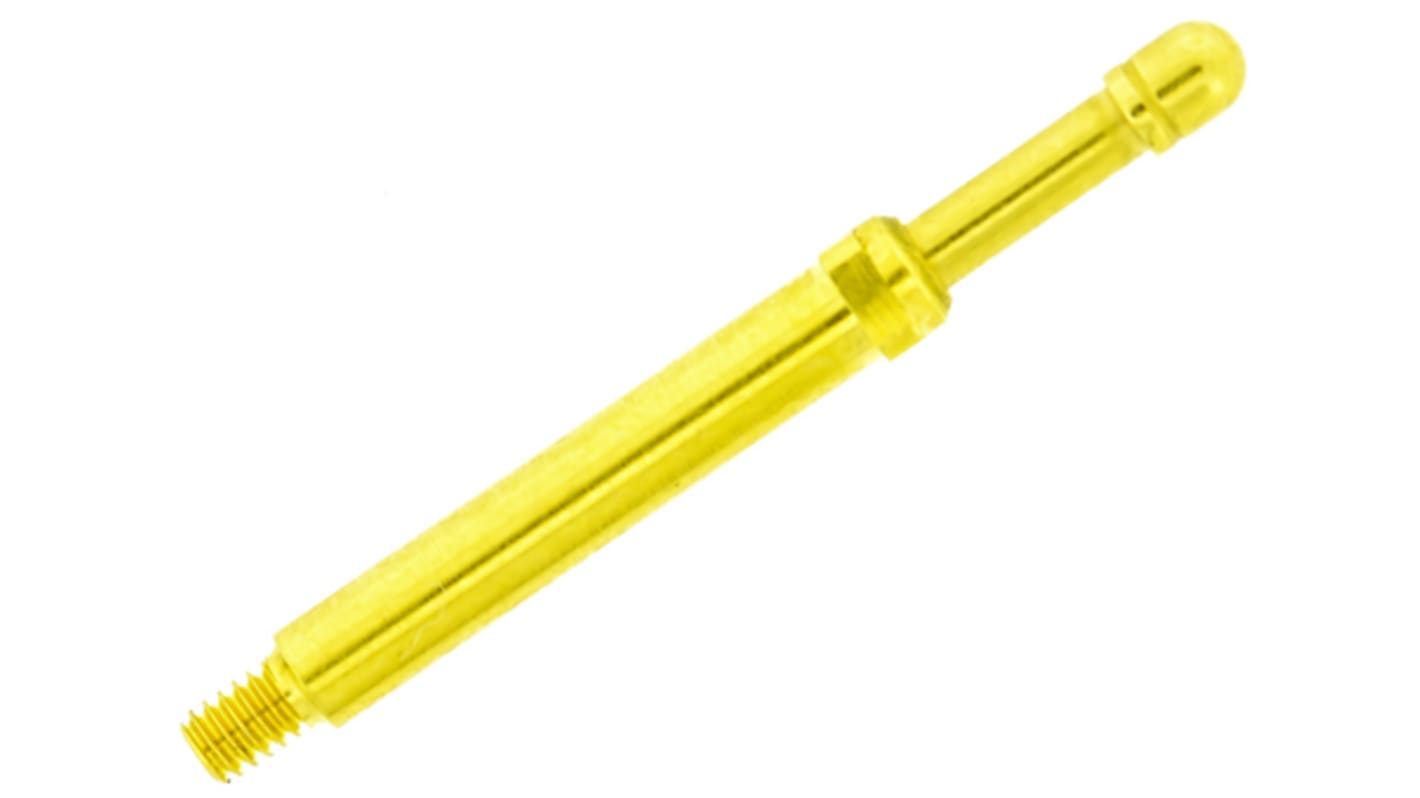

The High-Current Test Probe Raster 4.0mm Series 1060/G is a reliable solution for transmitting high currents with low contact resistance. Designed for burn-in and run-in tests, this probe ensures maximum efficiency and durability.

Constructed with brass barrel and gold-plated spring for enhanced conductivity and longevity

Pre-loaded spring force of 0.80N ensures secure connections

Spring force of 3.00N at working travel for stable performance

Max. current rating of 24.0A for high-power applications

Tip plated with 2.30C of gold for optimal transmission

Capable of withstanding continuity resistance <= 10 mOhm for reliable testing
