Hirschmann Test & Measurement, 16A, 1000V ac/dc, Red, 250mm Lead Length

View all Test Leads

Subtotal (1 unit)*

£7.45

(exc. VAT)

£8.94

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 18 unit(s) ready to ship
  • Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£7.45

*price indicative

RS Stock No.:
884-8932
Mfr. Part No.:
934078101
Brand:
Hirschmann Test & Measurement
Find similar products by selecting one or more attributes.
Select all

Brand

Hirschmann Test & Measurement

Lead Length

250mm

Current Rating

16A

Test Lead Type

4 mm Connector Test Leads

Colour

Red

Voltage Rating

1000V ac/dc

Connector A Gender

Male

Connector B Gender

Male

Connector A Shrouded

Yes

Connector B Shrouded

Yes

Connector A Stackable

No

Connector B Stackable

No

Connector A Orientation

Angled

Connector B Orientation

Angled, Straight

Contact Material

Beryllium Copper (Spring), Brass (Pin)

Insulation Material

PVC

Operating Temperature Range

-15 → +70 °C

Minimum Operating Temperature

-15°C

Maximum Operating Temperature

+70°C

Safety Category Level

CAT III

MLS WG 25,50,100,200/1, CAT III 4mm Measuring Leads

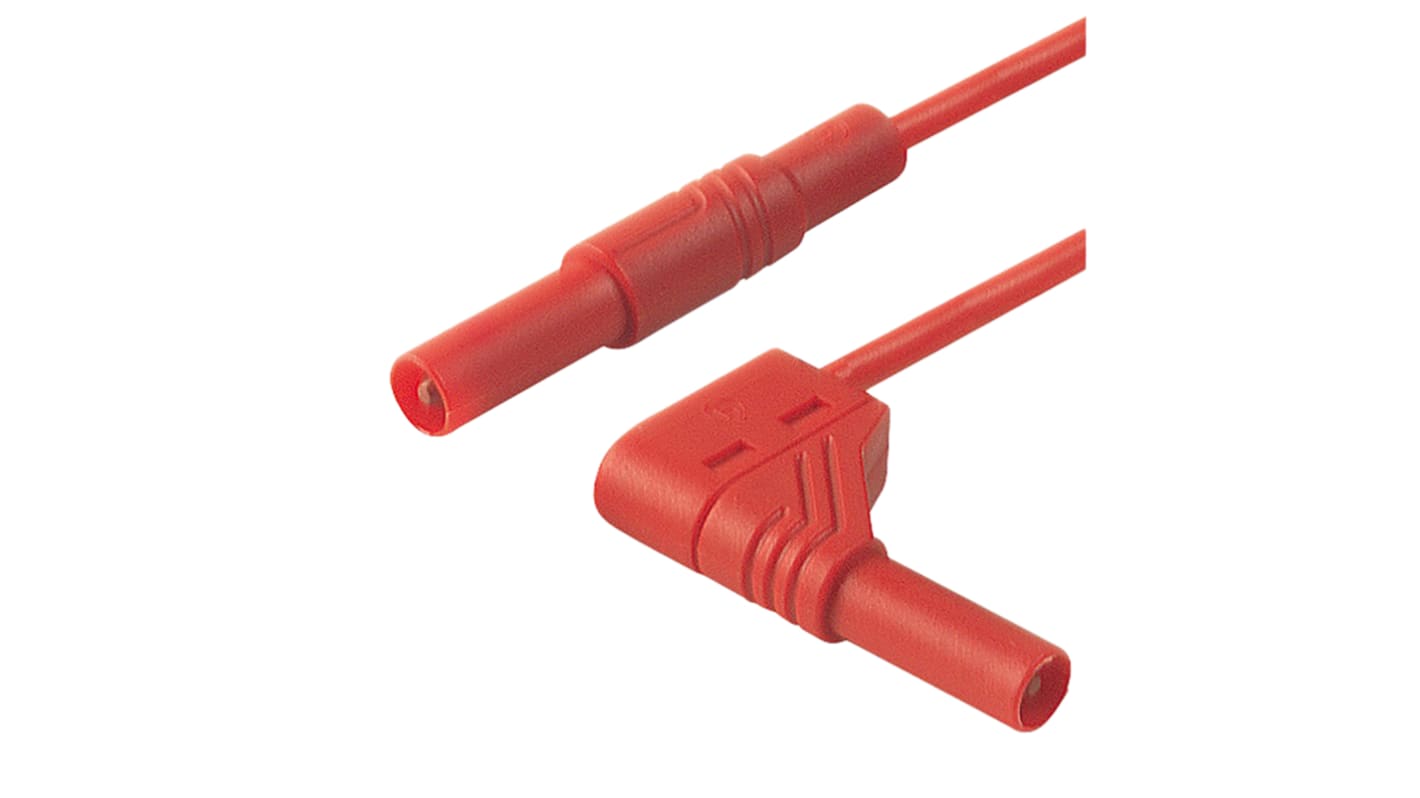

Hirschmann Test and Measurement MLS WG, 4mm CAT III measuring leads have a 4mm diameter safety connector with an angled outlet one end and straight one on the other, and feature a 1mm² multi-stranded cable. These MLS GG type measuring and test leads have a nickel plated copper beryllium contact spring, highly flexible,double insulated stranded lead and a shatter-proof sleeve, and are available in various lengths and colours.

The test lead cable has a built in colour indicator for easy identification of insulation damage by means of a different coloured inner core of insulation.

Features and Benefits:
• Rated voltage 1000 V ac/dc
• Rated current 32A
• CAT III
• PVC Insulated
• Contact resistance 12 mΩ
