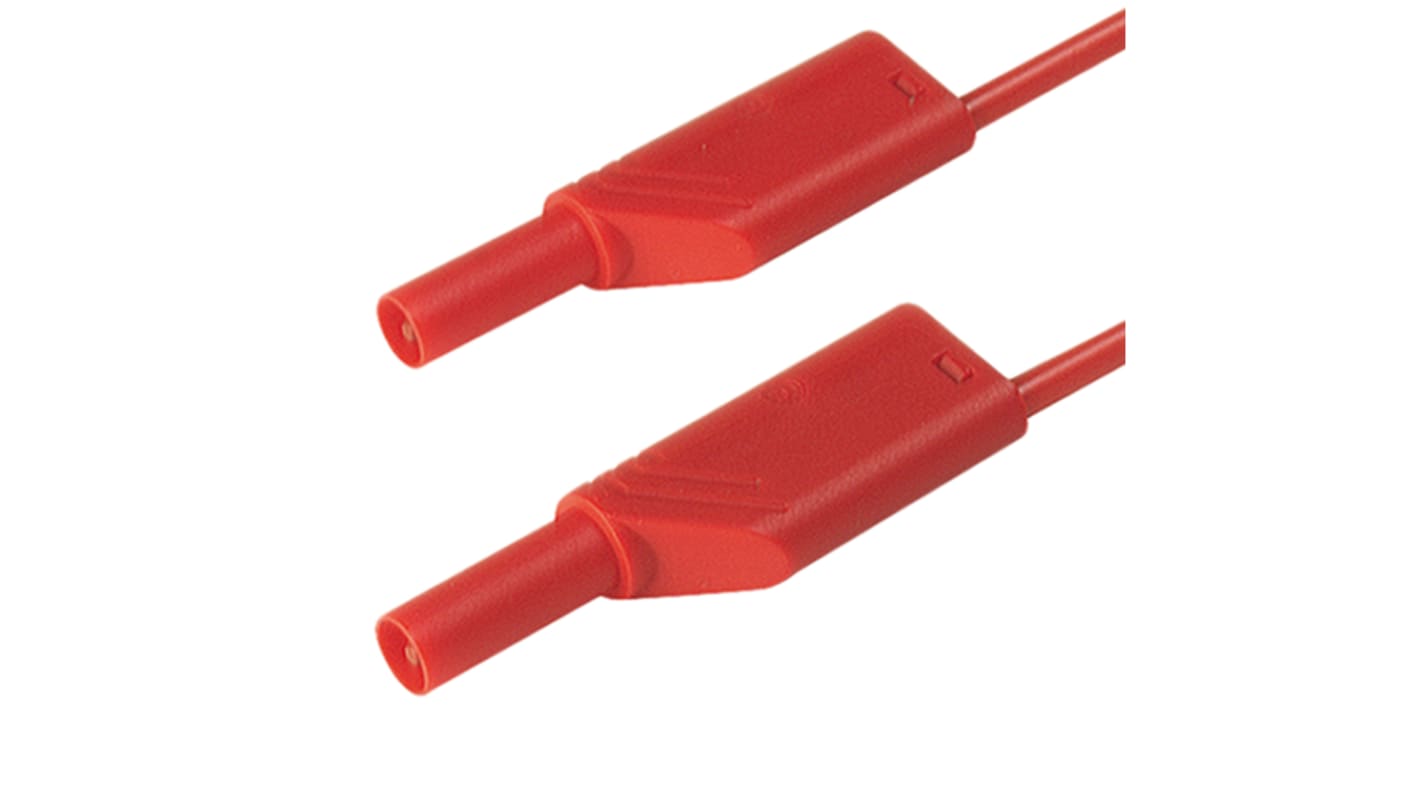

Hirschmann Test & Measurement, 16A, 1000V ac/dc, Red, 1m Lead Length
- RS Stock No.:
- 901-1636
- Mfr. Part No.:
- 934195101
- Brand:
- Hirschmann Test & Measurement
119 In stock - FREE next working day delivery available
38 available from Europe for delivery within 1 working day(s).
Added
Price Each
£12.64
(exc. VAT)
£15.17
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £12.64 |
| 10 - 24 | £11.68 |
| 25 + | £10.76 |
- RS Stock No.:
- 901-1636
- Mfr. Part No.:
- 934195101
- Brand:
- Hirschmann Test & Measurement
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
MLS WG 25,50,100,200/1, CAT III 4mm Measuring Leads
Hirschmann Test and Measurement MLS WG, 4mm CAT III measuring leads have a 4mm diameter safety connector with an angled outlet one end and straight one on the other, and feature a 1mm² multi-stranded cable. These MLS GG type measuring and test leads have a nickel plated copper beryllium contact spring, highly flexible,double insulated stranded lead and a shatter-proof sleeve, and are available in various lengths and colours.
The test lead cable has a built in colour indicator for easy identification of insulation damage by means of a different coloured inner core of insulation.
The test lead cable has a built in colour indicator for easy identification of insulation damage by means of a different coloured inner core of insulation.
Features and Benefits:
• Rated voltage 1000 V ac/dc
• Rated current 32A
• CAT III
• PVC Insulated
• Contact resistance 12 mΩ
• Rated voltage 1000 V ac/dc
• Rated current 32A
• CAT III
• PVC Insulated
• Contact resistance 12 mΩ
Specifications
Attribute | Value |
|---|---|
| Lead Length | 1m |
| Current Rating | 16A |
| Colour | Red |
| Test Lead Type | 4 mm Connector Test Leads |
| Voltage Rating | 1000V ac/dc |
| Connector A Gender | Male |
| Connector B Gender | Male |
| Connector A Shrouded | Yes |
| Connector B Shrouded | Yes |
| Connector A Stackable | Yes |
| Connector B Stackable | Yes |
| Connector A Orientation | Straight |
| Connector B Orientation | Straight |
| Contact Material | Brass |
| Insulation Material | PA |
| Safety Category Level | CAT II |
| Operating Temperature Range | -15 → +75 °C |
| Minimum Operating Temperature | -15°C |
| Maximum Operating Temperature | +70°C |
