RS PRO Test Lead 2.5A, 1000V, Blue, 25 cm Lead Length

RS Stock No.:: 347-237
Brand:: RS PRO

RS PRO Test Lead 2.5A, 1000V, Blue, 25 cm Lead Length

Subtotal (1 unit)*

£2.78

(exc. VAT)

£3.34

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

275 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£2.78

*price indicative

RS Stock No.:: 347-237
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Lead Length	25cm
	Product Type	Test Lead
	Colour	Blue
	Test Lead Type	4 mm Banana Cable
	Connector Orientation A	Straight
	Connector Shrouded A	Yes
	Current	2.5A
	Voltage	1000V
	Connector Orientation B	Straight
	Connector Shrouded B	Yes
	Connector Gender A	Male
	Connector Gender B	Male
	Standards/Approvals	CE, UKCA, RoHS, Reach
	Insulation Material	Silicone
	Minimum Operating Temperature	-20°C
	Safety Category Level	CAT II
	Safety Category Voltage	1000V
	Maximum Operating Temperature	70°C

	Select all
	Brand RS PRO
	Lead Length 25cm
	Product Type Test Lead
	Colour Blue
	Test Lead Type 4 mm Banana Cable
	Connector Orientation A Straight
	Connector Shrouded A Yes
	Current 2.5A
	Voltage 1000V
	Connector Orientation B Straight
	Connector Shrouded B Yes
	Connector Gender A Male
	Connector Gender B Male
	Standards/Approvals CE, UKCA, RoHS, Reach
	Insulation Material Silicone
	Minimum Operating Temperature -20°C
	Safety Category Level CAT II
	Safety Category Voltage 1000V
	Maximum Operating Temperature 70°C

COO (Country of Origin):: CN

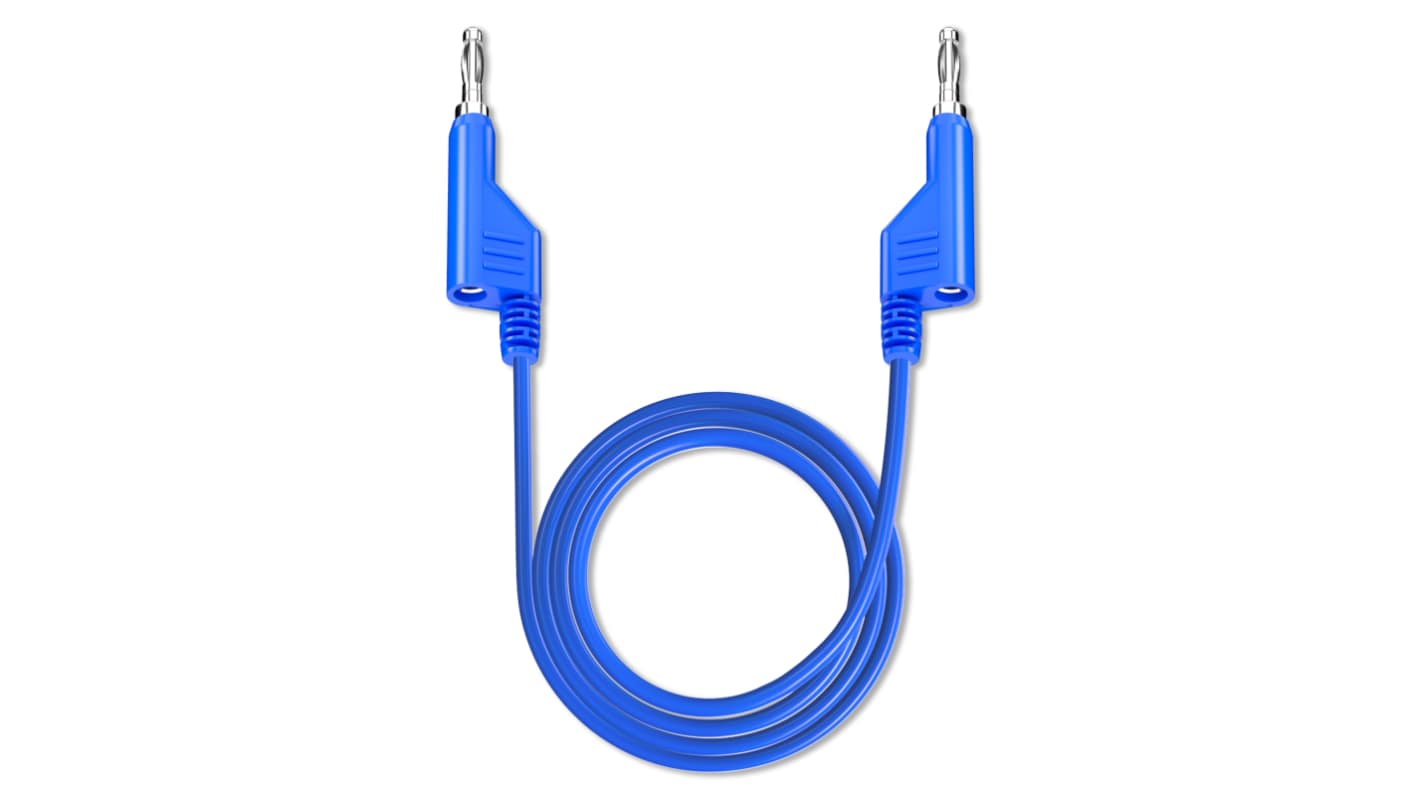

RS PRO Test Lead, 25 cm Length

The RS PRO Test Lead is designed using PVC coaxial cable with a standard diameter of 2.8 mm. These flexible test lead sets serve as an ideal interface for multimeters equipped with 4 mm sheathed safety jacks. The plug and housing are molded directly to the cable in a seamless, one-piece design, with the wire double-crimped to ensure a durable and long-lasting connection. The multi-leaf banana spring is crafted from beryllium copper and nickel-plated, providing extended insertion cycle life and minimal contact resistance.

Features and Benefits

PVC coaxial cable with 2.8 mm diameter ensures flexibility and durability

Ideal interface for multimeters with 4 mm sheathed safety jacks for secure connections

Seamless one-piece design with double-crimped wire for long-lasting use

Multi-leaf banana spring made from beryllium copper, nickel-plated for extended life and low contact resistance

Applications

Electrical testing

Laboratory measurements

Field service testing

Additional Information

Safety Category: CAT III

Current Rating: 2.5 A

Voltage Rating: 50 V

Connector A and B: Male, Right Angle, Unshrouded

Colour: Blue
