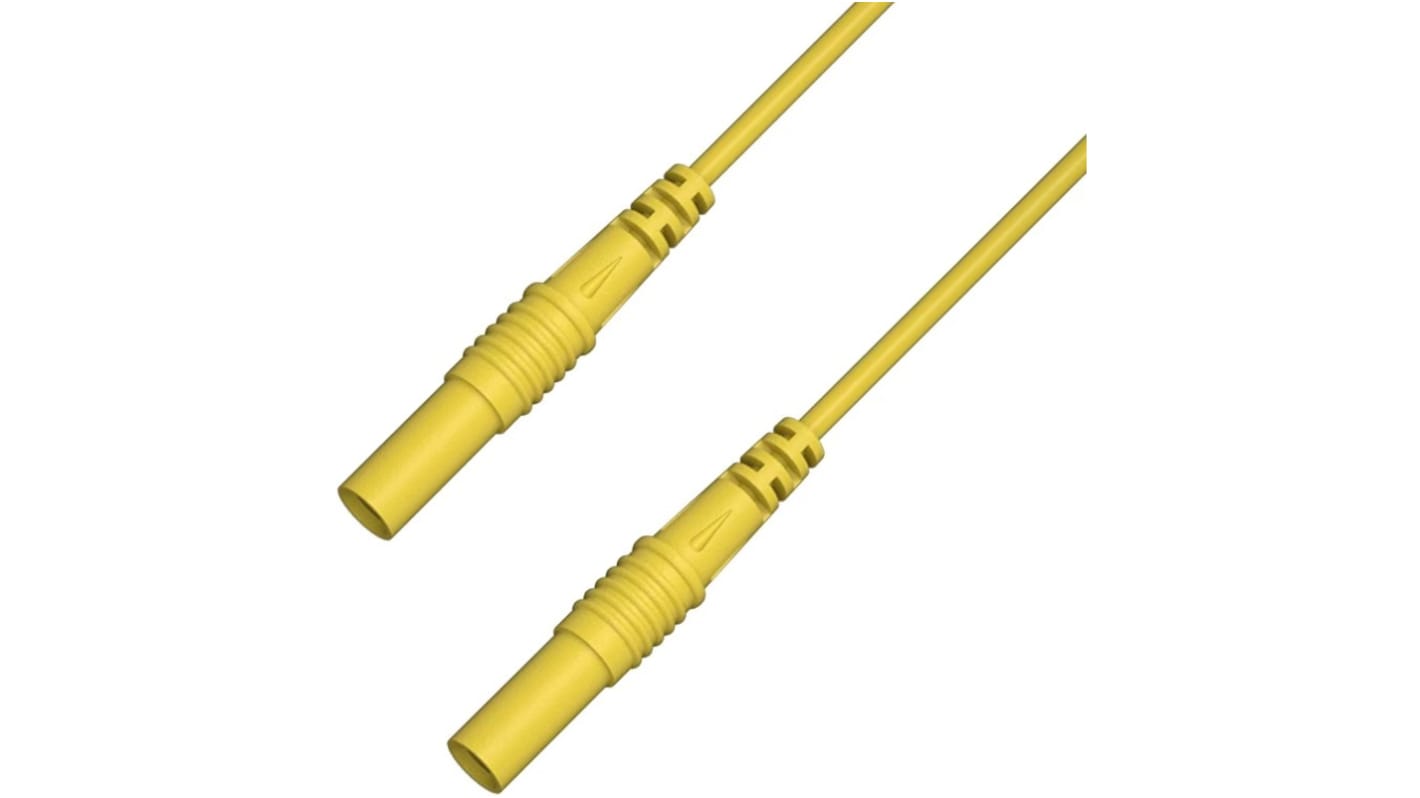

RS PRO Test Lead 2.5A, 50 V, Yellow, 25 cm Lead Length

RS Stock No.:: 347-221
Brand:: RS PRO

RS PRO Test Lead 2.5A, 50 V, Yellow, 25 cm Lead Length

Subtotal (1 unit)*

£3.46

(exc. VAT)

£4.15

(inc. VAT)

Add 15 units to get free delivery

Orders below £50.00 (exc. VAT) cost £6.95.

In Stock

300 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£3.46

*price indicative

RS Stock No.:: 347-221
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Test Lead
	Lead Length	25cm
	Colour	Yellow
	Current	2.5A
	Connector Shrouded A	Yes
	Test Lead Type	4 mm Banana Cable
	Connector Orientation A	Straight
	Voltage	50 V
	Connector Orientation B	Straight
	Connector Shrouded B	Yes
	Connector Gender A	Female
	Connector Gender B	Male
	Standards/Approvals	CE, Reach, RoHS, UKCA
	Insulation Material	Silicone
	Safety Category Level	CAT II
	Safety Category Voltage	1000V

	Select all
	Brand RS PRO
	Product Type Test Lead
	Lead Length 25cm
	Colour Yellow
	Current 2.5A
	Connector Shrouded A Yes
	Test Lead Type 4 mm Banana Cable
	Connector Orientation A Straight
	Voltage 50 V
	Connector Orientation B Straight
	Connector Shrouded B Yes
	Connector Gender A Female
	Connector Gender B Male
	Standards/Approvals CE, Reach, RoHS, UKCA
	Insulation Material Silicone
	Safety Category Level CAT II
	Safety Category Voltage 1000V

COO (Country of Origin):: CN

RS PRO Test Lead, 25 cm Length

The RS PRO Test Lead is designed using PVC coaxial cable with a standard diameter of 2.8 mm. These flexible test lead sets serve as an ideal interface for multimeters equipped with 4 mm sheathed safety jacks. The plug and housing are molded directly to the cable in a seamless, one-piece design, with the wire double-crimped to ensure a durable and long-lasting connection. The multi-leaf banana spring is crafted from beryllium copper and nickel-plated, providing extended insertion cycle life and minimal contact resistance.

Features and Benefits

Using PVC coaxial cable line, the standard diameter for the 2.8 mm ensures durability and flexibility

Flexible test lead sets are a perfect interface for multimeters configured with 4 mm sheathed safety jacks, enhancing compatibility

Plug and housing are molded directly to the cable in an integral one-piece design and the wire is double crimped for a long-lasting connection

Multi-leaf banana spring beryllium copper, nickel-plated for extended insertion cycle life and low contact resistance

Applications

Electrical testing

Laboratory measurements

Field service testing

Additional Information

Safety Category: CAT III

Current Rating: 2.5 A

Voltage Rating: 50 V

Connector A: Female, Shrouded

Connector B: Male, Unshrouded
