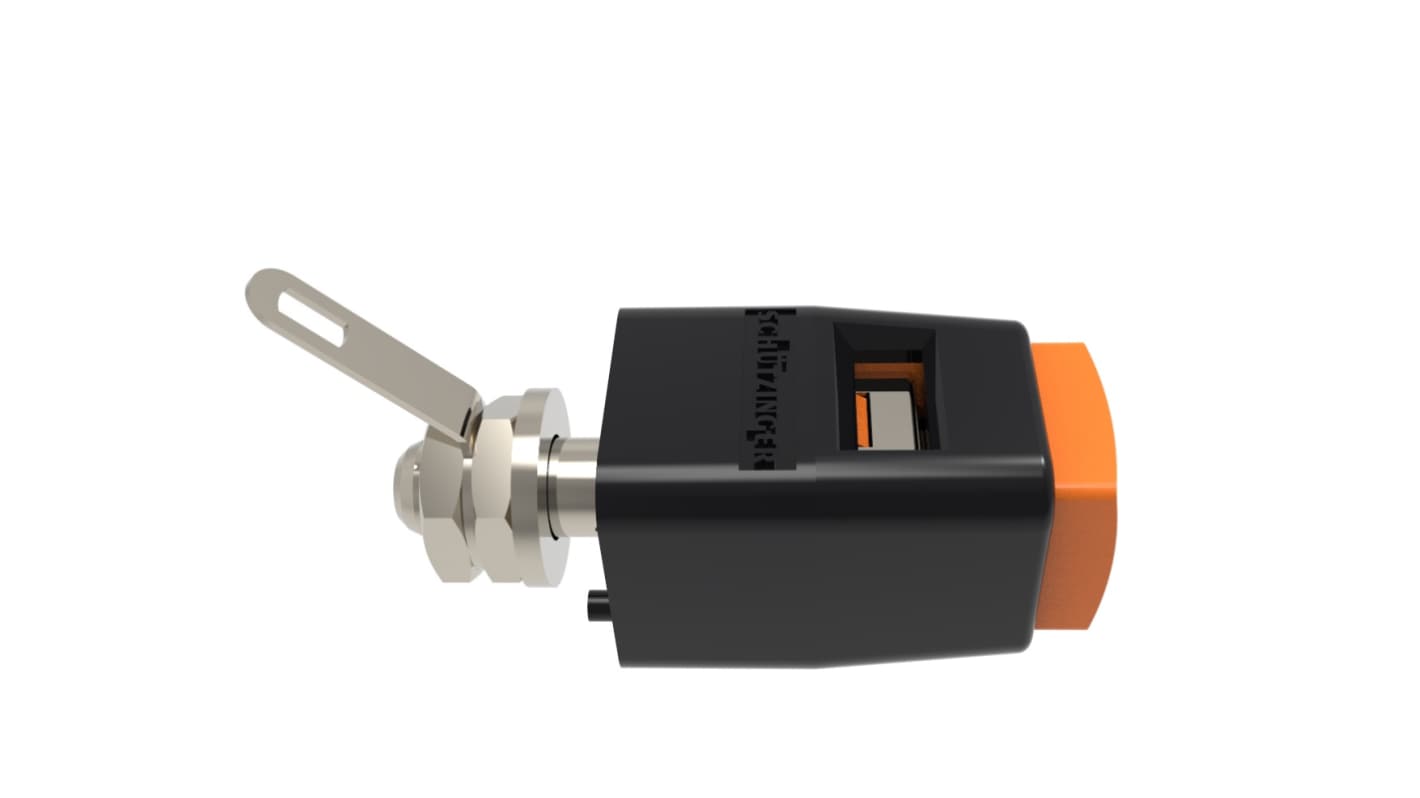

Schutzinger 6.2mm Orange Terminal Post, 30 V ac, 60 V dc, 16A, M6 x 0.75 Thread
- RS Stock No.:
- 609-311
- Mfr. Part No.:
- RS SDK 504 / OR
- Brand:
- Schutzinger
Bulk discount available
Subtotal (1 unit)*
£4.04
(exc. VAT)
£4.85
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 19 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £4.04 |
| 10 - 24 | £3.72 |
| 25 + | £3.28 |
*price indicative
- RS Stock No.:
- 609-311
- Mfr. Part No.:
- RS SDK 504 / OR
- Brand:
- Schutzinger
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schutzinger | |
| Colour | Orange | |
| Hole Diameter | 6.2mm | |
| Current Rating | 16A | |
| Thread Size | M6 x 0.75 | |
| Voltage Rating | 30 V ac, 60 V dc | |
Select all | ||
|---|---|---|
Brand Schutzinger | ||
Colour Orange | ||
Hole Diameter 6.2mm | ||
Current Rating 16A | ||
Thread Size M6 x 0.75 | ||
Voltage Rating 30 V ac, 60 V dc | ||
- COO (Country of Origin):
- DE
The Schutzinger Quick Release Terminal is designed for plugging into a 4 mm socket with rear insertion. It fits through an 8 mm x 4 mm window and provides a secure connection with a spring force of 20 N, ensuring reliable contact in various applications.
Nickel plated contact part
Polyamide insulation
-25 °C to +90 °C operating temperature
Polyamide insulation
-25 °C to +90 °C operating temperature
