- RS Stock No.:
- 230-2940
- Mfr. Part No.:
- 3NA3344-6
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |

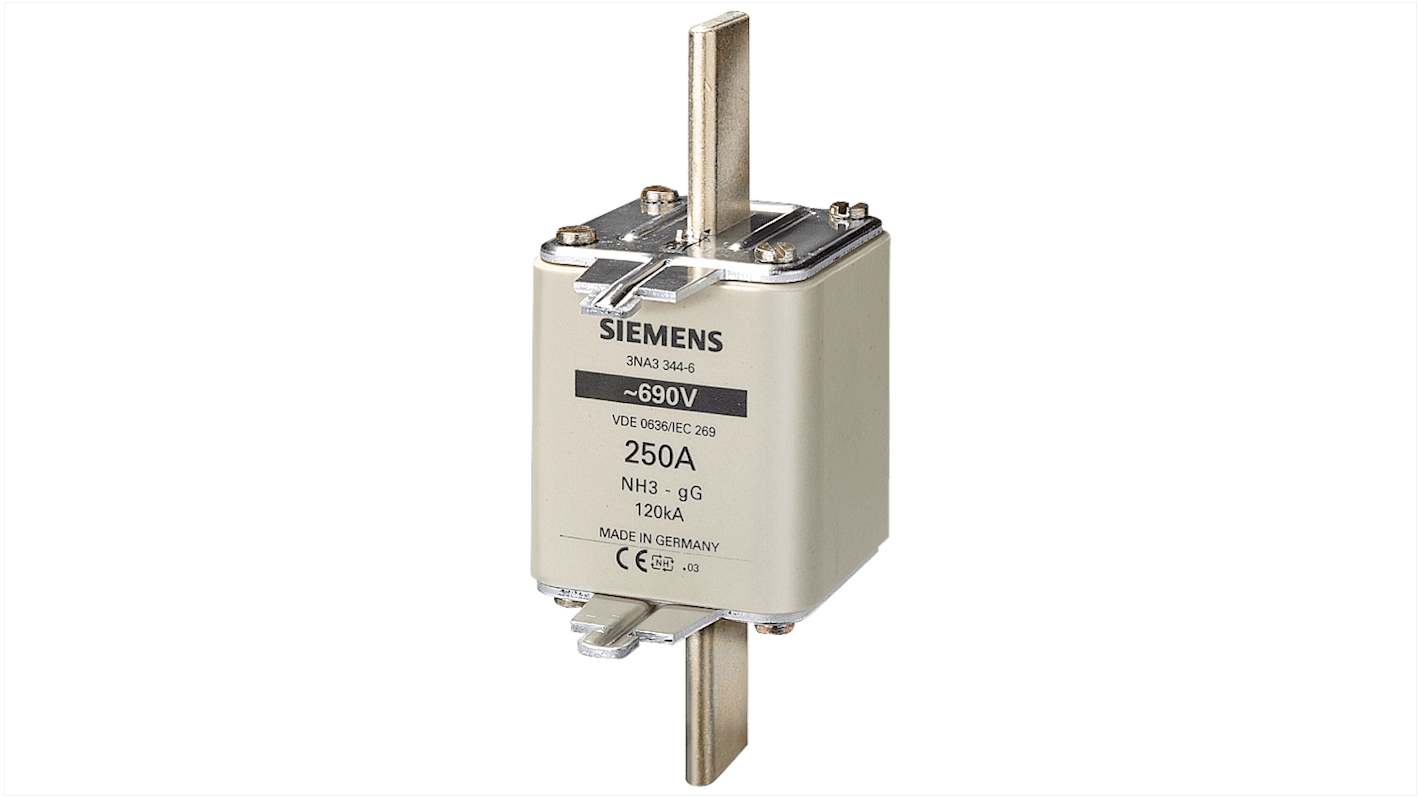

| Product Type | Centred Tag Fuse | |
| Fuse Type | LV HRC | |
| Current Rating | 250A | |
| Fuse Size | NH3 | |
| Voltage | 690V | |
| Standards/Approvals | No | |
| Application Category | gG | |
| Minimum Operating Temperature | -5°C | |
| Overall Length | 80.2mm | |
| Maximum Operating Temperature | 60°C | |
| Length | 147.6mm | |
| Width | 57.8mm | |
| Height | 57mm | |
| Series | 3NA | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Centred Tag Fuse | ||
Fuse Type LV HRC | ||
Current Rating 250A | ||
Fuse Size NH3 | ||
Voltage 690V | ||
Standards/Approvals No | ||
Application Category gG | ||
Minimum Operating Temperature -5°C | ||
Overall Length 80.2mm | ||
Maximum Operating Temperature 60°C | ||
Length 147.6mm | ||
Width 57.8mm | ||
Height 57mm | ||
Series 3NA | ||
- COO (Country of Origin):
- GR
The Siemens LED Lamp is the most sought after product in the field of . The Siemens Sentron range is known for providing safe and efficient power distribution products and its accessories for applications like industrial plants, data centres or airports, etc.
Use in distribution systems of power supply companies, installation boards and switchboards
