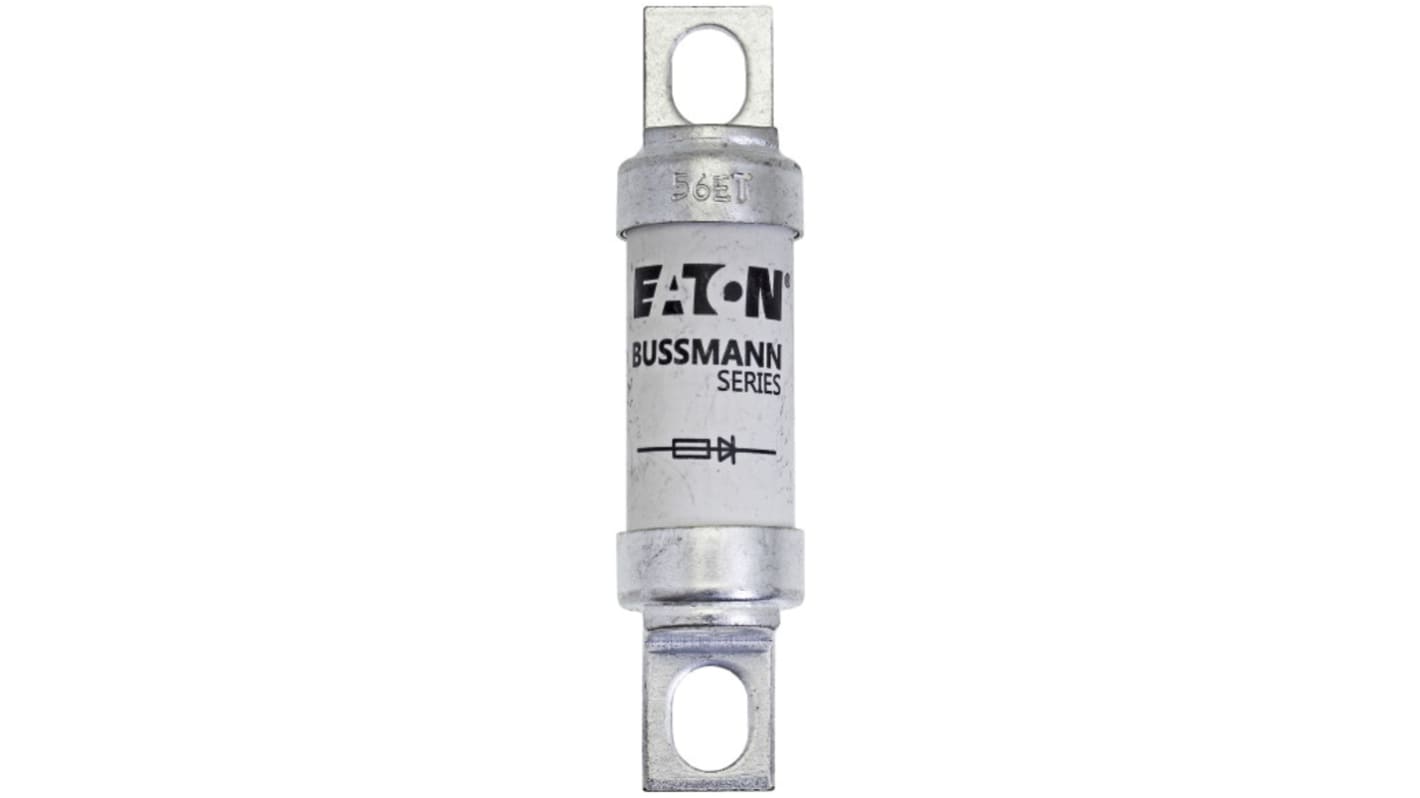

Eaton 56A Bolted Tag Fuse, 690 V, 700 V, 62mm
- RS Stock No.:
- 182-1569
- Mfr. Part No.:
- 56ET
- Brand:
- Eaton
Bulk discount available
Subtotal (1 unit)*
£20.55
(exc. VAT)
£24.66
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 30 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £20.55 |
5 - 9 | £19.52 |
10 + | £18.29 |
*price indicative
- RS Stock No.:
- 182-1569
- Mfr. Part No.:
- 56ET
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Current Rating | 56A | |
Voltage Rating | 690 V, 700 V | |
Fuse Standard | BS88, IEC 60269 | |
Fixing Centres | 62mm | |
Application Category | aR | |
Tag Width | 12.7mm | |
High Rupture Capacity | Yes | |
Overall Length | 76mm | |
Body Diameter | 17.1mm | |
Tag Type | Bolted | |
Body Length | 48mm | |
Tag Orientation | Offset | |
Body Width | 20mm | |
Fuse Dimensions | 17.1 x 48mm | |
Series | Eaton Bussmann | |
Select all | ||
---|---|---|
Brand Eaton | ||
Current Rating 56A | ||
Voltage Rating 690 V, 700 V | ||
Fuse Standard BS88, IEC 60269 | ||
Fixing Centres 62mm | ||
Application Category aR | ||
Tag Width 12.7mm | ||
High Rupture Capacity Yes | ||
Overall Length 76mm | ||
Body Diameter 17.1mm | ||
Tag Type Bolted | ||
Body Length 48mm | ||
Tag Orientation Offset | ||
Body Width 20mm | ||
Fuse Dimensions 17.1 x 48mm | ||
Series Eaton Bussmann | ||
- COO (Country of Origin):
- IN
Eaton Bolted Tag Fuse, 56A Current Rating, 690V Voltage Rating - 56ET
This bolted tag fuse is designed for heavy-duty applications within electrical and automation systems. It features a current rating of 56A and a voltage rating of up to 690V, making it suitable for demanding operational environments. With a high rupture capacity and compliance with BS 88 and IEC 60269 standards, this fuse ensures safety and reliability in various electrical installations.
Features & Benefits
• High rupture capacity safeguards against overload conditions
• Designed for use within the BS 88 fuse specification
• Accommodates voltages up to 690V for versatile applications
• Features a compact body diameter of 17.1mm
• Robust construction ensures durability in challenging conditions
• Offset tag orientation allows for easier installation in tight spaces
• Designed for use within the BS 88 fuse specification
• Accommodates voltages up to 690V for versatile applications
• Features a compact body diameter of 17.1mm
• Robust construction ensures durability in challenging conditions
• Offset tag orientation allows for easier installation in tight spaces
Applications
• Utilised in DC common bus systems for efficient power distribution
• Ideal for AC and DC drives ensuring seamless operation
• Suitable for power converters and rectifiers for improved performance
• Effective in reduced voltage starters for motor control
• Ideal for AC and DC drives ensuring seamless operation
• Suitable for power converters and rectifiers for improved performance
• Effective in reduced voltage starters for motor control
What are the most significant advantages of using this fuse?
The key benefits include its high rupture capacity for enhanced safety, compliance with recognised standards ensuring reliability, and its ability to handle up to 690V, allowing flexibility in various applications.
How does the current rating affect its performance?
The 56A current rating ensures that it can effectively handle loads specific to heavy-duty applications, preventing disruption in case of overload while providing adequate protection for connected systems.
What is the significance of the fuses compact dimensions?
The compact dimensions facilitate easy installation in limited space environments, ensuring that the fuse can be incorporated into existing setups without requiring extensive modifications.
Can this fuse be used in international applications?
Yes, the Eaton fuse meets IEC 60269 standards, making it suitable for international use while ensuring compatibility with electrical systems across different regions.
Note
Eaton formerly known as Bussmann
