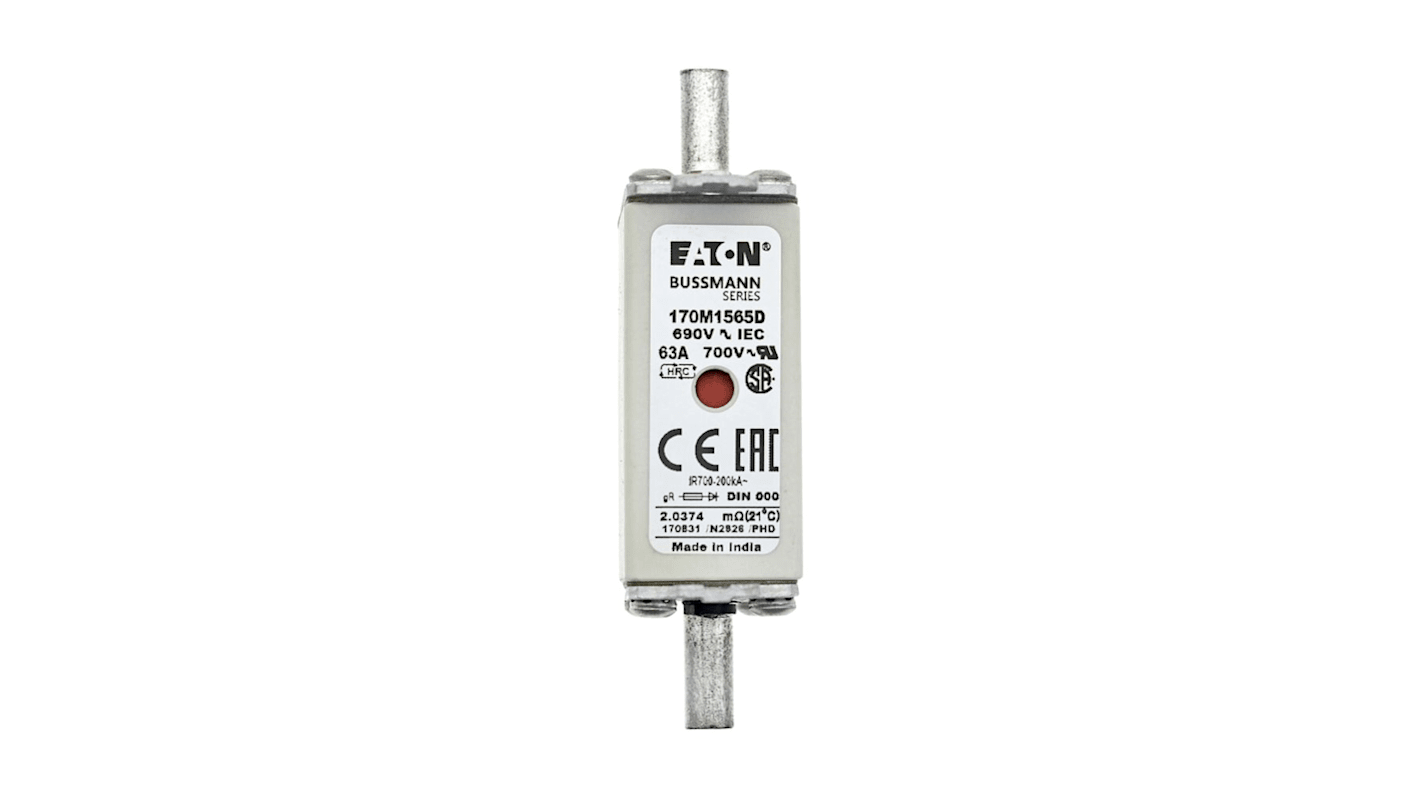

Eaton 63A Centred Tag Fuse, NH000, 690 V, 700 V
- RS Stock No.:
- 182-1395
- Mfr. Part No.:
- 170M1565D
- Brand:
- Eaton
Subtotal (1 box of 10 units)*
£588.09
(exc. VAT)
£705.71
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
- Plus 999,999,980 unit(s) shipping from 19 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 10 + | £58.809 | £588.09 |
*price indicative
- RS Stock No.:
- 182-1395
- Mfr. Part No.:
- 170M1565D
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Current Rating | 63A | |
| Fuse Size | NH000 | |
| Voltage Rating | 690 V, 700 V | |
| Fuse Standard | CE, CSA, IEC 60269, UL | |
| Application Category | gR | |
| Tag Width | 15mm | |
| Fuse Speed | T | |
| Overall Length | 79mm | |
| Tag Type | Blade | |
| Body Length | 52mm | |
| Body Width | 20.5mm | |
| Body Height | 49.7mm | |
| Fuse Dimensions | 79 x 21 x 51mm | |
| Series | Eaton Bussmann | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Current Rating 63A | ||
Fuse Size NH000 | ||
Voltage Rating 690 V, 700 V | ||
Fuse Standard CE, CSA, IEC 60269, UL | ||
Application Category gR | ||
Tag Width 15mm | ||
Fuse Speed T | ||
Overall Length 79mm | ||
Tag Type Blade | ||
Body Length 52mm | ||
Body Width 20.5mm | ||
Body Height 49.7mm | ||
Fuse Dimensions 79 x 21 x 51mm | ||
Series Eaton Bussmann | ||
- COO (Country of Origin):
- IN
Eaton Centred Tag Fuse, 63A Current Rating, 690 (IEC)/700 (UL)V Voltage Rating - 170M1565D
This centred tag fuse is a high-speed dual indication fuse-link designed for industrial applications. Built to DIN 43620 specifications, it can handle voltages up to 690V (IEC/UL). The dimensions are 79mm in length, 20.5mm in width, and 49.7mm in height, ensuring versatility in various setups. It operates within the gR application category, making it suitable for general-purpose protection in electrical systems.
Features & Benefits
• Rated for 63A, accommodating various electrical configurations
• Compliant with IEC 60269, ensuring recognised safety standards
• Fast response characteristics enhance circuit protection
• High breaking capacity of 200kA RMS minimises operational risks
• Efficient dimensions for easy installation in confined spaces
• Designed for performance in industrial settings
• Compliant with IEC 60269, ensuring recognised safety standards
• Fast response characteristics enhance circuit protection
• High breaking capacity of 200kA RMS minimises operational risks
• Efficient dimensions for easy installation in confined spaces
• Designed for performance in industrial settings
Applications
• Provides protection in industrial circuit
• Applicable in automation systems requiring high-speed fuses
• Suitable for installations needing compliance with industrial standards
• Ideal for safeguarding electrical equipment from overloads
• Applicable in automation systems requiring high-speed fuses
• Suitable for installations needing compliance with industrial standards
• Ideal for safeguarding electrical equipment from overloads
Can it handle voltages of up to 690V?
Yes, it is rated for 690V (IEC/UL) operation.
Will it work in an environment with high current?
Yes, it effectively manages currents up to 63A.
Is it compliant with recognised electrical safety standards?
Yes, it meets IEC 60269 standards for safety compliance.
Note
Eaton formerly known as Bussmann
