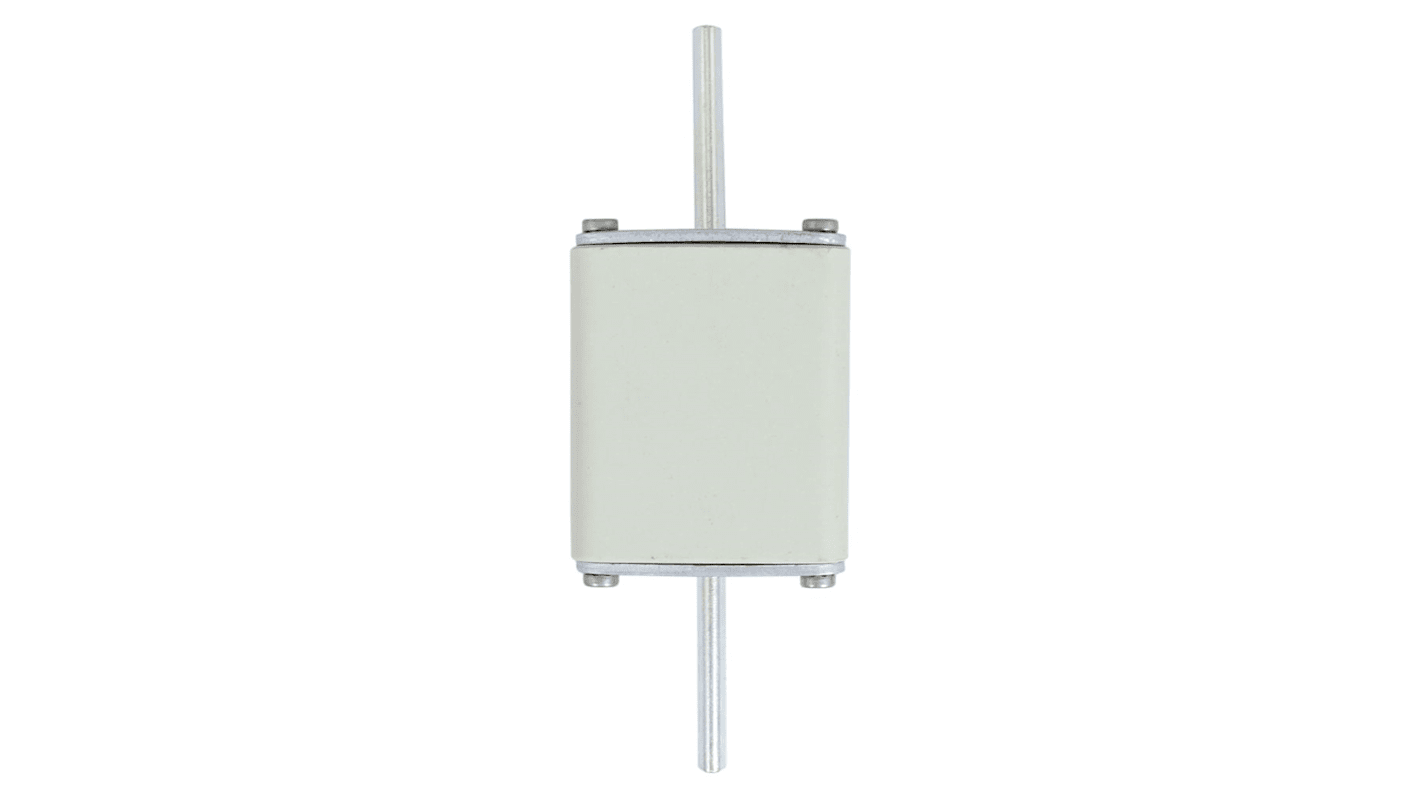

Eaton 500A Centred Tag Fuse, NH2, 690 V, 700 V
- RS Stock No.:
- 182-1359
- Mfr. Part No.:
- 170M5810D
- Brand:
- Eaton
Subtotal (1 box of 3 units)*
£913.851
(exc. VAT)
£1,096.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 3 + | £304.617 | £913.85 |
*price indicative
- RS Stock No.:
- 182-1359
- Mfr. Part No.:
- 170M5810D
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Current Rating | 500A | |
| Fuse Size | NH2 | |
| Voltage Rating | 690 V, 700 V | |
| Fuse Standard | CE, CSA, IEC 60269, UL | |
| Application Category | aR | |
| Tag Width | 25mm | |
| Overall Length | 150mm | |
| Tag Type | Blade | |
| Body Length | 72mm | |
| Body Width | 54mm | |
| Body Height | 68mm | |
| Series | Eaton Bussmann | |
| Fuse Dimensions | 150 x 54 x 72mm | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Current Rating 500A | ||
Fuse Size NH2 | ||
Voltage Rating 690 V, 700 V | ||
Fuse Standard CE, CSA, IEC 60269, UL | ||
Application Category aR | ||
Tag Width 25mm | ||
Overall Length 150mm | ||
Tag Type Blade | ||
Body Length 72mm | ||
Body Width 54mm | ||
Body Height 68mm | ||
Series Eaton Bussmann | ||
Fuse Dimensions 150 x 54 x 72mm | ||
- COO (Country of Origin):
- IN
Eaton Centred Tag Fuse, 500A Current Rating, 690 (IEC)/700 (UL)V Voltage Rating - 170M5810D
This centred tag fuse is suitable for high-speed applications requiring precise current protection. With a current rating of 500A and a voltage rating of 690V (IEC), it is applicable for various electronic and electrical uses. The dimensions are 150x54x72mm, allowing for efficient integration into complex systems.
Features & Benefits
• High-speed operation prevents damage from excessive current
• Interrupt rating of 200kAIC for added safety
• Compliant with IEC 60269 for consistent performance
• Ideal for semiconductor applications to provide protection
• Combination fuse status indicator enhances operational monitoring
• RoHS compliant, following environmental standards
• Interrupt rating of 200kAIC for added safety
• Compliant with IEC 60269 for consistent performance
• Ideal for semiconductor applications to provide protection
• Combination fuse status indicator enhances operational monitoring
• RoHS compliant, following environmental standards
Applications
• Protects semiconductor devices
• Utilised in DC common bus systems
• Suitable for DC drives and power converters
• Applicable in rectifier installations requiring high current
• Utilised in DC common bus systems
• Suitable for DC drives and power converters
• Applicable in rectifier installations requiring high current
Can it handle both AC and DC applications?
Yes, it is designed for AC operation and can be used with specific DC applications.
Will this fuse provide adequate protection in high-current scenarios?
Yes, it has an interrupt rating of 200kAIC suitable for high current situations.
Is it compliant with recognised international standards?
Yes, it conforms to IEC standards and is UL recognised.
Note
Eaton formerly known as Bussmann
