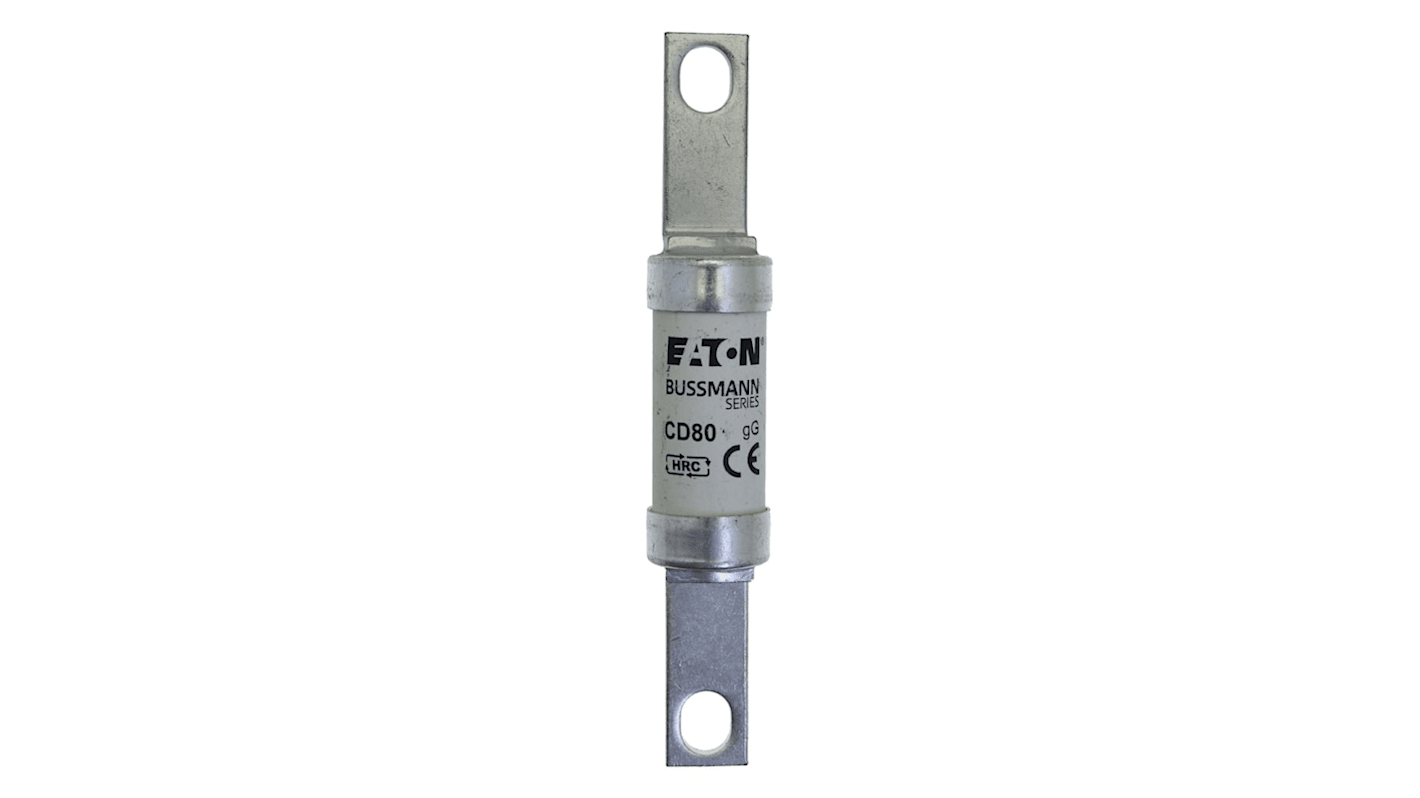

Eaton 80A British Standard Fuse B1 500V, 111 mm
- RS Stock No.:
- 181-8653
- Mfr. Part No.:
- CD80
- Brand:
- Eaton
Bulk discount available
Subtotal (1 unit)*
£16.08
(exc. VAT)
£19.30
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 14 unit(s) ready to ship
- Plus 43 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £16.08 |
| 5 - 9 | £15.27 |
| 10 + | £14.31 |
*price indicative
- RS Stock No.:
- 181-8653
- Mfr. Part No.:
- CD80
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | British Standard Fuse | |
| Current Rating | 80A | |
| Fuse Size | B1 | |
| Voltage | 500V | |
| Standards/Approvals | RoHS, CE, IEC 60269 | |
| Fixing Centres | 111 mm | |
| Tag Width | 14.3mm | |
| Fuse Speed | F | |
| High Rupture Capacity | Yes | |
| Tag Orientation | Centred | |
| Length | 58.5mm | |
| Overall Length | 126mm | |
| Diameter | 21mm | |
| Width | 21mm | |
| Height | 21mm | |
| Series | CD | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type British Standard Fuse | ||
Current Rating 80A | ||
Fuse Size B1 | ||
Voltage 500V | ||
Standards/Approvals RoHS, CE, IEC 60269 | ||
Fixing Centres 111 mm | ||
Tag Width 14.3mm | ||
Fuse Speed F | ||
High Rupture Capacity Yes | ||
Tag Orientation Centred | ||
Length 58.5mm | ||
Overall Length 126mm | ||
Diameter 21mm | ||
Width 21mm | ||
Height 21mm | ||
Series CD | ||
Eaton British Standard Fuse, 80A Current Rating, 500V Voltage Rating - CD80
This British Standard fuse is suitable for low-voltage applications, featuring a current rating of 80A and a voltage rating of 500V. It complies with BS88 and IEC 60269 standards. With high rupture capacity and compact dimensions of 127x21x21mm, it provides effective electrical safety and equipment protection.
Features & Benefits
• High rupture capacity improves safety during faults
• Breaking capability of 80kA ensures circuit protection
• Designed for industrial applications
• 111mm fixing centres facilitate installation
• Complies with CE and RoHS standards for quality assurance
• Equipped with centre bolted tags for secure connections
Applications
• Suitable for automation control systems
• Ideal for electrical installations in machinery
• Utilised in equipment protection circuits
• Appropriate for requiring circuit protection
Can it handle high rupture capacity during faults?
Yes, it is designed for high rupture capacity.
Will it comply with both IEC and British standards?
Yes, it meets the requirements of IEC 60269 and BS88.
Is it suitable for general industrial applications?
Yes, it is tailored for industrial use.
Can it be easily installed with its fixing centres?
Yes, it features a 111mm fixing centre for simple installation.
Note
Eaton formerly known as Bussmann
