Eaton 80A British Standard Fuse, ET, 690 V, 700 V, 63.5mm
- RS Stock No.:
- 182-1513
- Mfr. Part No.:
- 80ET
- Brand:
- Eaton
Subtotal (1 box of 10 units)*
£202.12
(exc. VAT)
£242.54
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 10 + | £20.212 | £202.12 |
*price indicative
- RS Stock No.:
- 182-1513
- Mfr. Part No.:
- 80ET
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Current Rating | 80A | |
| Fuse Size | ET | |
| Voltage Rating | 690 V, 700 V | |
| Fuse Standard | BS88, IEC 60269 | |
| Fixing Centres | 63.5mm | |
| Application Category | aR | |
| Tag Width | 12.7mm | |
| Overall Length | 76mm | |
| Body Diameter | 17.1mm | |
| Tag Type | Bolted | |
| Body Length | 48mm | |
| Tag Orientation | Offset | |
| Series | Eaton Bussmann | |
| Fuse Dimensions | 76 x 20 x 20mm | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Current Rating 80A | ||
Fuse Size ET | ||
Voltage Rating 690 V, 700 V | ||
Fuse Standard BS88, IEC 60269 | ||
Fixing Centres 63.5mm | ||
Application Category aR | ||
Tag Width 12.7mm | ||
Overall Length 76mm | ||
Body Diameter 17.1mm | ||
Tag Type Bolted | ||
Body Length 48mm | ||
Tag Orientation Offset | ||
Series Eaton Bussmann | ||
Fuse Dimensions 76 x 20 x 20mm | ||
- COO (Country of Origin):
- IN

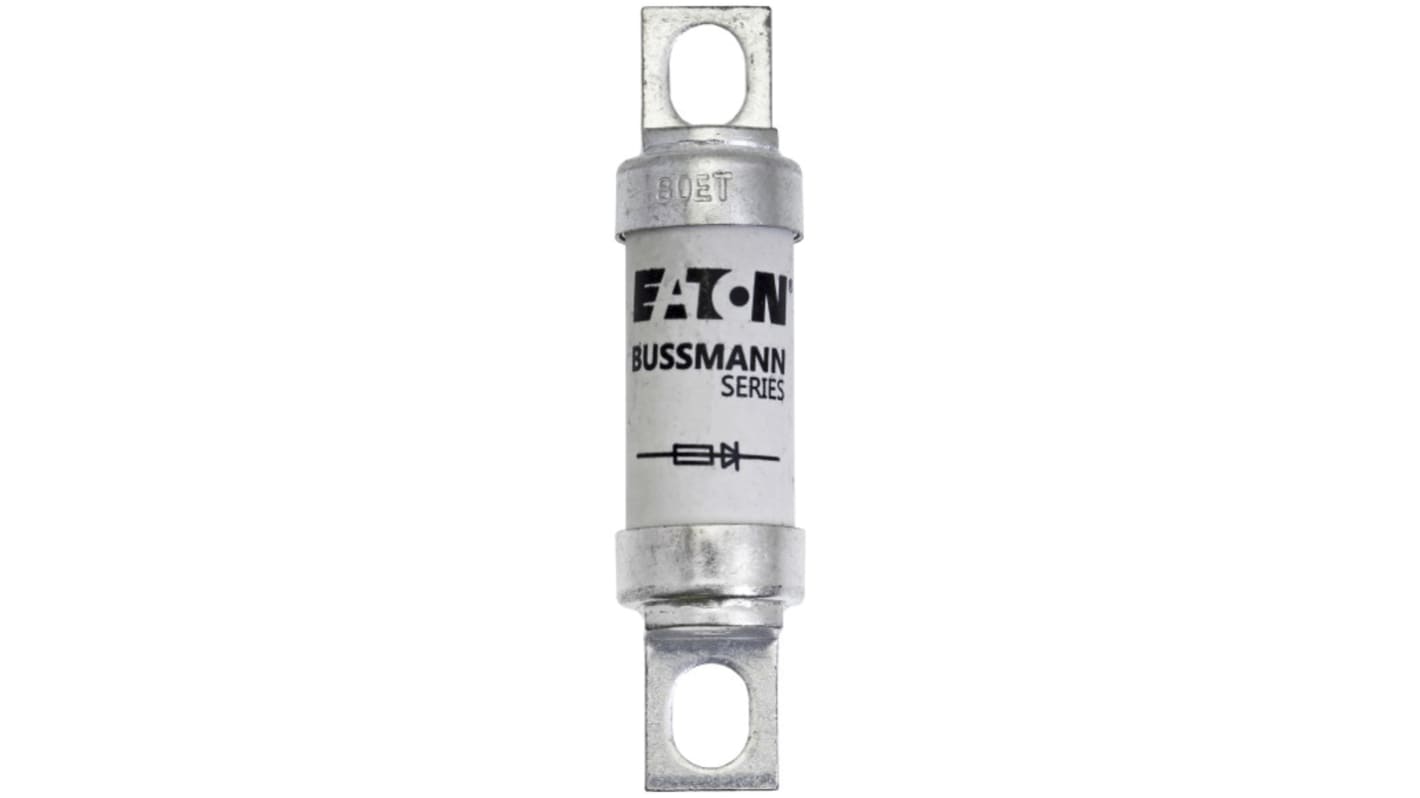

Eaton British Standard Fuse, 80A Current Rating, 690 (IEC)/700 (UL)V Voltage Rating - 80ET
This British Standard fuse is engineered for dependable performance across various electrical applications. With a current rating of 80A and a voltage rating of 690V, this fuse adheres to BS 88 and IEC 60269 standards. It has an ET fuse size with dimensions of 76x20x20mm, making it a critical component for ensuring electrical safety and dependability in a range of settings.
Features & Benefits
• Designed for high current applications prioritising safety
• Complies with BS 88 and IEC 60269 standards for flexibility
• Interrupting rating of 200kA RMS for consistent operation
• aR application category suitable for fuse links
• Compact dimensions facilitate straightforward installation
• Voltage rated at 690V for enhanced performance
• Complies with BS 88 and IEC 60269 standards for flexibility
• Interrupting rating of 200kA RMS for consistent operation
• aR application category suitable for fuse links
• Compact dimensions facilitate straightforward installation
• Voltage rated at 690V for enhanced performance
Applications
• Utilised in industrial electrical systems
• Suitable for automation requiring high protection
• Commonly employed to safeguard electrical equipment from overloads
• Ideal for machinery necessitating 80A protection
• Implemented in circuits that require compliance with UK standards
• Suitable for automation requiring high protection
• Commonly employed to safeguard electrical equipment from overloads
• Ideal for machinery necessitating 80A protection
• Implemented in circuits that require compliance with UK standards
Is it suitable for use in automation applications?
Yes, it is ideal for automation applications where high protection is necessary.
Can it handle a high interrupting current?
Yes, it features an interrupting rating of 200kA RMS.
Will it meet the required safety standards?
Yes, it adheres to BS 88 and IEC 60269 standards.
Is it easy to install?
The compact design aids in straightforward installation.
Note
Eaton formerly known as Bussmann
