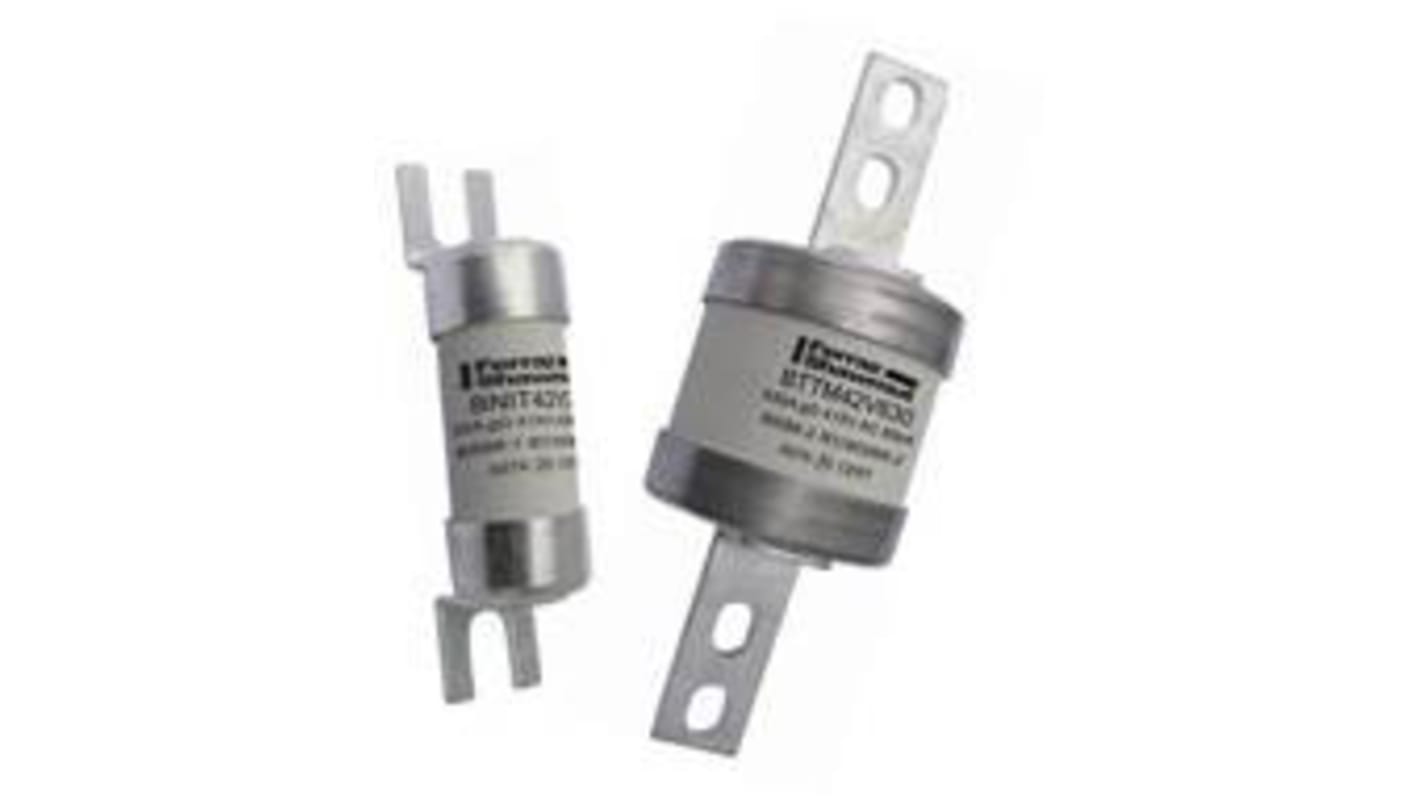

Mersen 200A Bolted Tag Fuse B2C 415V ac, 111 mm

RS Stock No.:: 178-1065
Mfr. Part No.:: W226316 / BTF42V200
Brand:: Mersen

Mersen 200A Bolted Tag Fuse B2C 415V ac, 111 mm

Bulk discount available

View bulk pricing options

Subtotal (1 pack of 5 units)*

£171.26

(exc. VAT)

£205.51

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

60 unit(s) shipping from 16 November 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
5 - 20	£34.252	£171.26
25 - 45	£29.972	£149.86
50 +	£26.65	£133.25

*price indicative

RS Stock No.:: 178-1065
Mfr. Part No.:: W226316 / BTF42V200
Brand:: Mersen

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Mersen
	Product Type	Bolted Tag Fuse
	Current Rating	200A
	Fuse Size	B2C
	Voltage	415V ac
	Standards/Approvals	REACH, EN 60269-2, CE, RoHS
	Fixing Centres	111 mm
	Tag Width	19mm
	Fuse Speed	F
	High Rupture Capacity	No
	Tag Orientation	Centred
	Length	47mm
	Overall Length	136mm
	Width	31mm
	Diameter	31mm
	Height	47mm
	Series	Central Bolted Tag Fuse-links gG 415VAC/240VDC

	Select all
	Brand Mersen
	Product Type Bolted Tag Fuse
	Current Rating 200A
	Fuse Size B2C
	Voltage 415V ac
	Standards/Approvals REACH, EN 60269-2, CE, RoHS
	Fixing Centres 111 mm
	Tag Width 19mm
	Fuse Speed F
	High Rupture Capacity No
	Tag Orientation Centred
	Length 47mm
	Overall Length 136mm
	Width 31mm
	Diameter 31mm
	Height 47mm
	Series Central Bolted Tag Fuse-links gG 415VAC/240VDC

W226316 / BTF42V200 Datasheet

COO (Country of Origin):: IN

Mersen Bolted Tag Fuse, Bolted Tag Fuse, 200A Current - W226316 / BTF42V200

This bolted tag fuse provides overcurrent protection for industrial electrical systems, rated for use in alternating and direct current environments. It is intended for installations requiring a centred tag configuration and is suitable where regulated fuse performance and material compliance are necessary.

Features and Benefits:

• F-speed element offers predictable time to current behaviour
• 415V ac rating supports medium-voltage system protection
• 200A current capacity enables high-current circuit safeguarding
• 19mm tag width allows secure bolted connections
• REACH and RoHS adherence reduces hazardous substance concerns

Applications

• Suitable for distribution panels in industrial facilities
• Used with three-phase supply equipment requiring centred tags
• Ideal for protective circuits in renewable-energy installations
• Can be used for DC linkage protection up to 240VDC
• Suitable for replacement where B2C fuse size is specified

What fixing arrangement does it use?

It employs bolted connections with 111mm fixing centres to secure the fuse in place.

How does the physical profile affect installation?

The device presents a 31mm diameter and Compact 47mm element length to fit standard fuse holders.

Which approvals and standards apply?

The item meets EN 60269-2 and carries CE, REACH, and RoHS designations.

What overall dimensions determine panel clearance?

The component measures 136mm overall length and 47mm height for spatial planning.
