Siemens 600A Tag Fuse, NH3, 900V dc, 169mm
- RS Stock No.:
- 665-109
- Mfr. Part No.:
- 3NE5643-0C
- Brand:
- Siemens
Subtotal (1 pack of 3 units)*
£789.97
(exc. VAT)
£947.96
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £789.97 | £263.323 |
*price indicative
- RS Stock No.:
- 665-109
- Mfr. Part No.:
- 3NE5643-0C
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Current Rating | 600A | |
| Fuse Size | NH3 | |
| Voltage Rating | 900V dc | |
| Fuse Standard | CE, EAC, UKCA | |
| Fixing Centres | 169mm | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Current Rating 600A | ||
Fuse Size NH3 | ||
Voltage Rating 900V dc | ||
Fuse Standard CE, EAC, UKCA | ||
Fixing Centres 169mm | ||
- COO (Country of Origin):
- GR

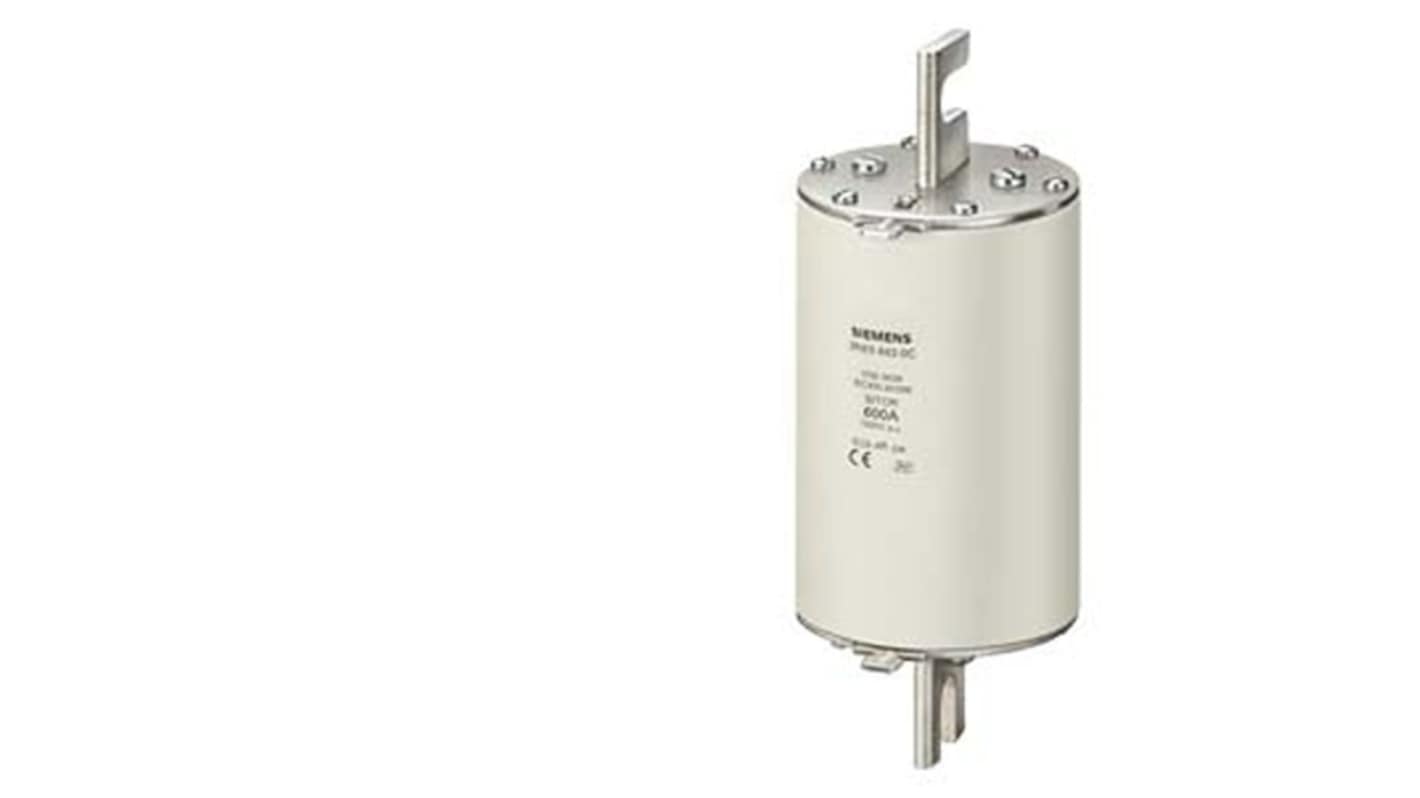

The Siemens SITOR Fuse features slotted blade contacts designed for M10 screw fixing with a mounting dimension of 170 mm. It includes a front indicator for easy status monitoring and follows the SITOR LV HRC design standard. Classified under the NH3 fuse system size according to EN 60269-1, it has an aR operating class with a varying load factor of 1. The fuse link supports both AC and DC voltages, rated at 1,500 V AC and 900 V DC according to UL standards, and offers a high breaking capacity with a switching current rated at 100 kA per IEC 60947-2.
EAC and UKCA approved
CE approved
Silver plated blade contact
CE approved
Silver plated blade contact
