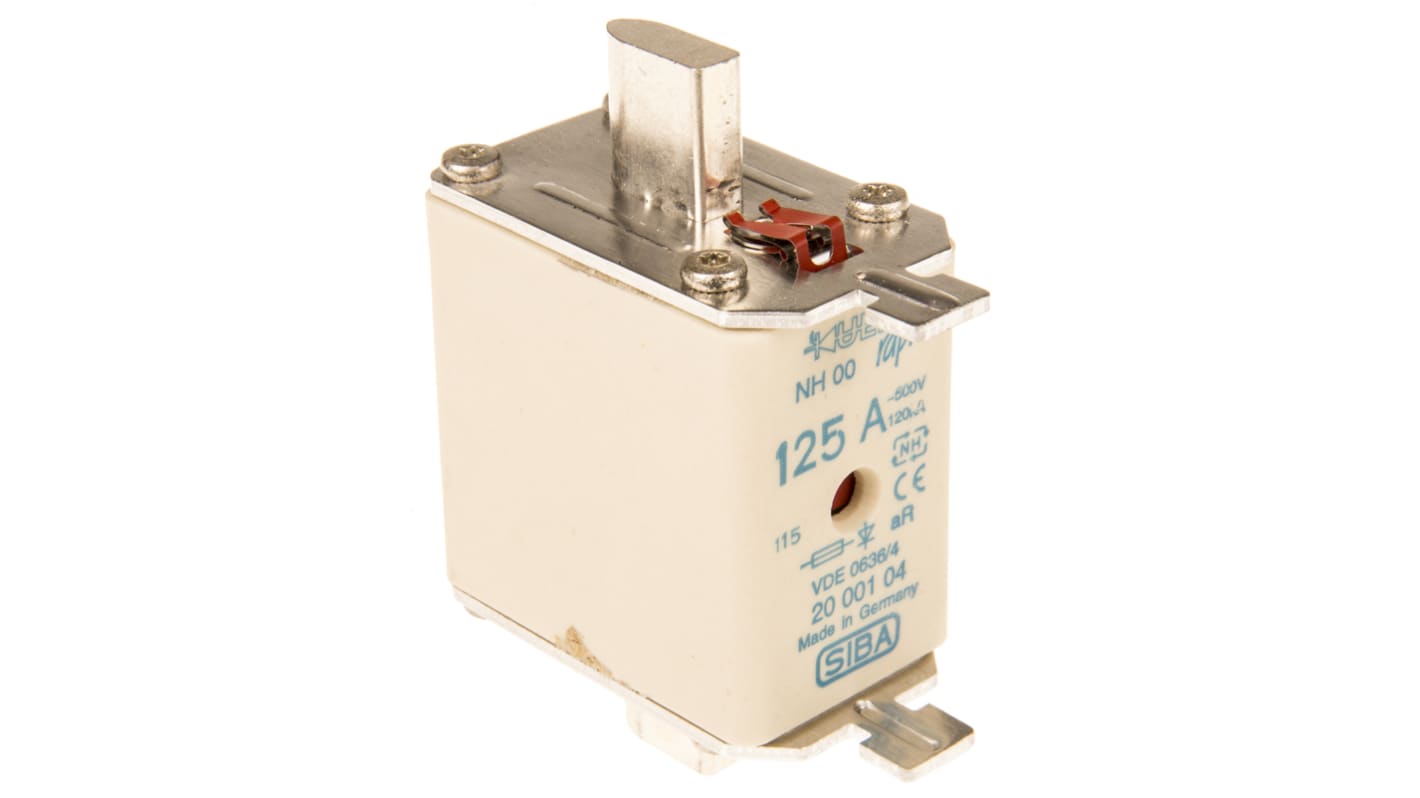

SIBA 125A NH Fuse, NH00, 500V ac
- RS Stock No.:
- 421-592
- Mfr. Part No.:
- 20-001-04/125A
- Brand:
- SIBA
Bulk discount available
Subtotal (1 unit)*
£26.70
(exc. VAT)
£32.04
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 15 left, ready to ship
- Plus 10 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £26.70 |
| 10 - 49 | £24.03 |
| 50 - 99 | £22.69 |
| 100 - 249 | £20.02 |
| 250 + | £18.68 |
*price indicative
- RS Stock No.:
- 421-592
- Mfr. Part No.:
- 20-001-04/125A
- Brand:
- SIBA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SIBA | |
| Current Rating | 125A | |
| Fuse Size | NH00 | |
| Voltage Rating | 500V ac | |
| Fuse Standard | DIN 43620 | |
| Application Category | aR | |
| Tag Width | 6mm | |
| Fuse Speed | FF | |
| High Rupture Capacity | Yes | |
| Overall Length | 78mm | |
| Tag Type | Blade | |
| Body Length | 54mm | |
| Tag Orientation | Centred | |
| Body Width | 29.5mm | |
| Body Height | 46mm | |
| Fuse Dimensions | 54 x 29.5 x 46mm | |
Select all | ||
|---|---|---|
Brand SIBA | ||
Current Rating 125A | ||
Fuse Size NH00 | ||
Voltage Rating 500V ac | ||
Fuse Standard DIN 43620 | ||
Application Category aR | ||
Tag Width 6mm | ||
Fuse Speed FF | ||
High Rupture Capacity Yes | ||
Overall Length 78mm | ||
Tag Type Blade | ||
Body Length 54mm | ||
Tag Orientation Centred | ||
Body Width 29.5mm | ||
Body Height 46mm | ||
Fuse Dimensions 54 x 29.5 x 46mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
HBC Ceramic NH-Fuse Type gR (Semiconductor Loads)
High quality contacts for low power loss
Fitted with leaf spring fuse blown indicator
External contacts corrosion protected
Suitable for large semiconductor loads
Fitted with leaf spring fuse blown indicator
External contacts corrosion protected
Suitable for large semiconductor loads
