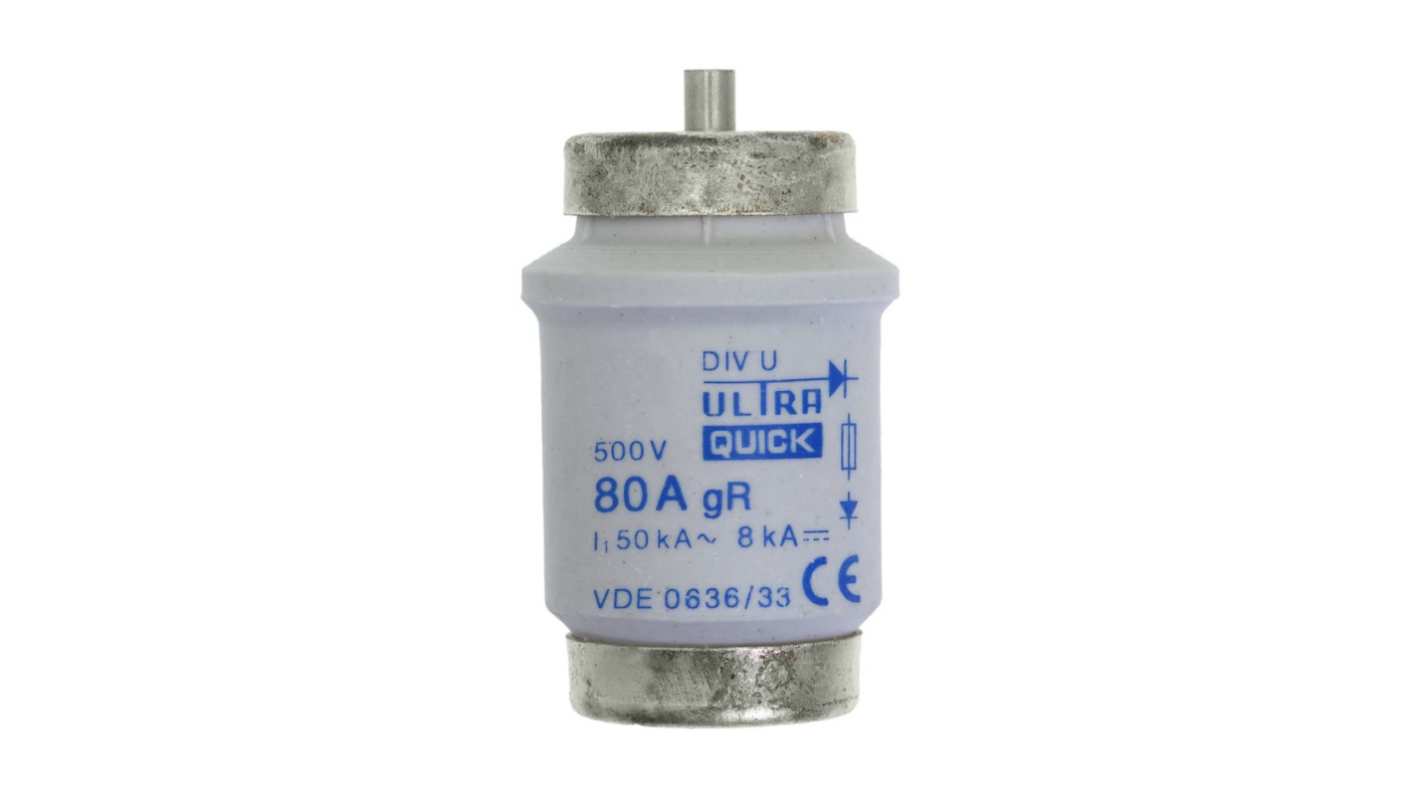

Eaton 80A Tag Fuse 33 x 60 mm 500V
- RS Stock No.:
- 229-162
- Mfr. Part No.:
- 80D125R
- Brand:
- Eaton
Subtotal (1 pack of 3 units)*
£82.47
(exc. VAT)
£98.96
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 12 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £82.47 | £27.49 |
*price indicative
- RS Stock No.:
- 229-162
- Mfr. Part No.:
- 80D125R
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Tag Fuse | |
| Current Rating | 80A | |
| Fuse Size | 33 x 60 mm | |
| Voltage | 500V | |
| Standards/Approvals | IEC 60269, DIN VDE 0636-301, DIN EN 60269-3 (VDE 0636 Part 30), EAC, DIN EN 60269-1 (VDE 0636 Part 10) | |
| Application Category | Domestic & General Industrial Applications | |
| Fuse Speed | Ultra Rapid | |
| High Rupture Capacity | Yes | |
| Length | 60mm | |
| Overall Length | 60mm | |
| Height | 33mm | |
| Width | 33mm | |
| Series | Bussmann | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Tag Fuse | ||
Current Rating 80A | ||
Fuse Size 33 x 60 mm | ||
Voltage 500V | ||
Standards/Approvals IEC 60269, DIN VDE 0636-301, DIN EN 60269-3 (VDE 0636 Part 30), EAC, DIN EN 60269-1 (VDE 0636 Part 10) | ||
Application Category Domestic & General Industrial Applications | ||
Fuse Speed Ultra Rapid | ||
High Rupture Capacity Yes | ||
Length 60mm | ||
Overall Length 60mm | ||
Height 33mm | ||
Width 33mm | ||
Series Bussmann | ||
Eaton Tag Fuse, 80A Current Rating, 500V Voltage - 80D125R
This tag fuse is a Compact protective component designed to safeguard electrical circuits in both domestic and general industrial settings. It operates at system voltages up to 500V and is intended for Rapid interruption of fault currents where fast disconnection is required. The product conforms to recognised international and regional standards, making it suitable for installations demanding consistent protective performance.
Features and Benefits:
• Ultra-rapid interruption for minimised fault energy transfer
• High rupture capacity for handling high fault currents
• 80A continuous current rating for mid-range circuit protection
• Compatible with IEC and DIN standards for regulatory alignment
• Tag form factor for simple identification and replacement
• High rupture capacity for handling high fault currents
• 80A continuous current rating for mid-range circuit protection
• Compatible with IEC and DIN standards for regulatory alignment
• Tag form factor for simple identification and replacement
Applications
• Suitable for protecting control panels in automation systems
• Ideal for motor protection in light machinery circuits
• Used with distribution boards in domestic installations
• Can be used for general industrial sub-circuits requiring fast disconnection
• Ideal for motor protection in light machinery circuits
• Used with distribution boards in domestic installations
• Can be used for general industrial sub-circuits requiring fast disconnection
What standards does it meet for use in regulated installations?
It meets IEC 60269 and multiple DIN/VDE parts including DIN VDE 0636-301 and DIN EN 60269-1 and -3, which specify performance and testing requirements for cartridge and tag fuses.
What physical attributes affect mounting and handling?
The tag fuse has a Compact rectangular form with a 33mm width and a 60mm overall length, and a 33mm height that determines clearance and panel aperture needs.
How does its construction influence application in higher-energy environments?
Its high rupture capacity rating permits safe interruption of elevated fault currents without catastrophic failure, allowing use where higher prospective short-circuit currents may occur.
Which voltage and current combinations is it designed for?
It is specified for operation at up to 500V with an 80A current rating, suitable for circuits within those electrical parameters.
