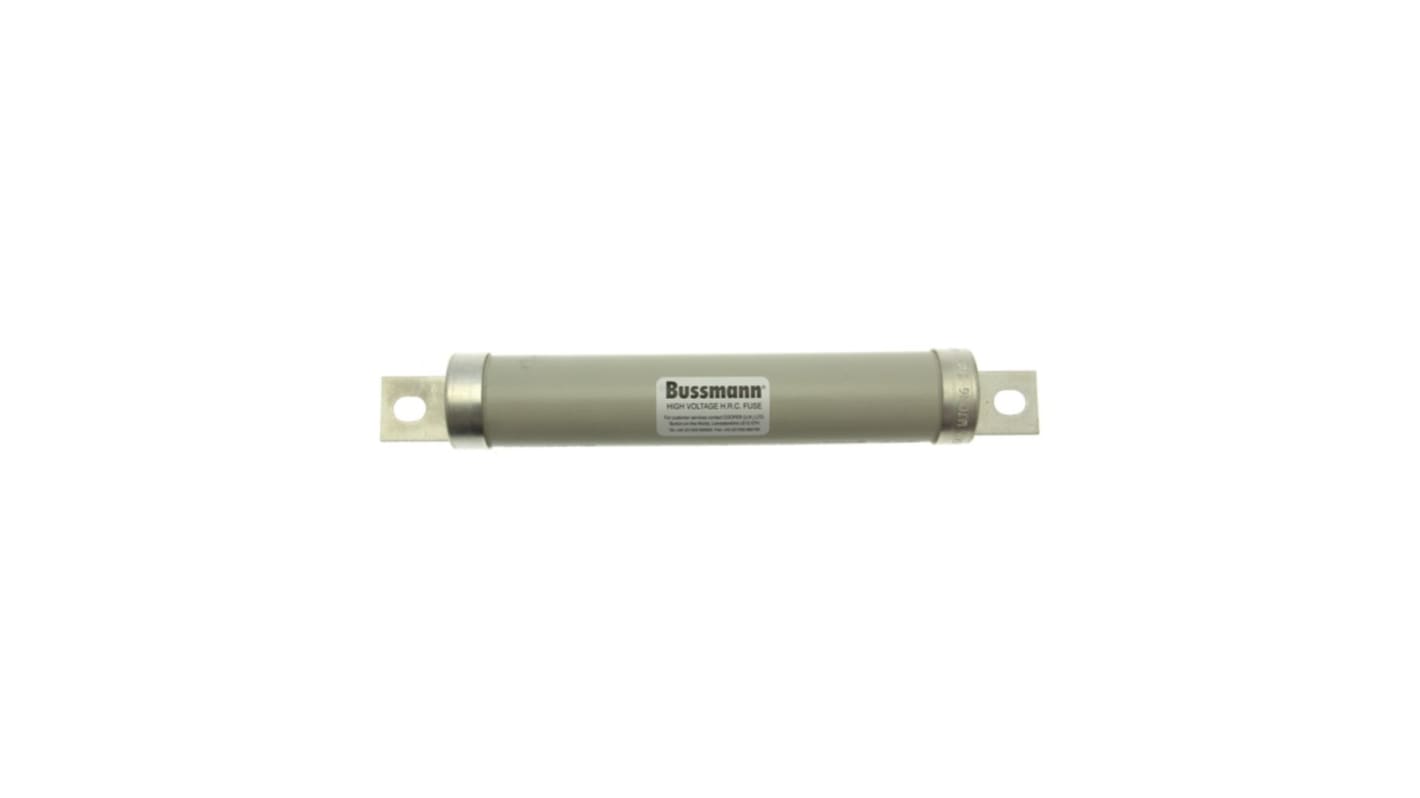

Eaton 50A Tag Fuse 51 x 192 mm 3.6kV
- RS Stock No.:
- 228-723
- Mfr. Part No.:
- 3.6WDOSJ50
- Brand:
- Eaton
Subtotal (1 pack of 3 units)*
£1,009.98
(exc. VAT)
£1,211.98
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £1,009.98 | £336.66 |
*price indicative
- RS Stock No.:
- 228-723
- Mfr. Part No.:
- 3.6WDOSJ50
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Current Rating | 50A | |
| Product Type | Tag Fuse | |
| Fuse Size | 51 x 192 mm | |
| Voltage | 3.6kV | |
| Standards/Approvals | VDE 0670-4 DIN 43625 IEC60282-1 | |
| Application Category | Motor Protection | |
| Fuse Speed | Back-up | |
| High Rupture Capacity | 50 kAIC | |
| Length | 192mm | |
| Width | 51mm | |
| Height | 51mm | |
| Series | Bussmann | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Current Rating 50A | ||
Product Type Tag Fuse | ||
Fuse Size 51 x 192 mm | ||
Voltage 3.6kV | ||
Standards/Approvals VDE 0670-4 DIN 43625 IEC60282-1 | ||
Application Category Motor Protection | ||
Fuse Speed Back-up | ||
High Rupture Capacity 50 kAIC | ||
Length 192mm | ||
Width 51mm | ||
Height 51mm | ||
Series Bussmann | ||
RoHS Status: Exempt
- COO (Country of Origin):
- HU
Eaton Tag Fuse, 50A Current Rating, 3.6kV Voltage - 3.6WDOSJ50
This tag fuse is a 3.6kV motor protection device designed to provide back-up overcurrent protection in high-voltage systems. It operates as a secondary protective element to isolate faults and protect downstream motor circuits, compliant with established international fuse standards for industrial installations.
Features & Benefits
• 50A continuous rating delivers consistent current protection
• 50kAIC high rupturing capacity limits fault energy during short circuits
• Back-up speed characteristic preserves primary protection selectivity
• 51mm width facilitates installation in standard DIN43625 holders
• 50kAIC high rupturing capacity limits fault energy during short circuits
• Back-up speed characteristic preserves primary protection selectivity
• 51mm width facilitates installation in standard DIN43625 holders
**Applications**
• Suitable for protecting medium-voltage motor feeders in industrial plants
• Ideal for use in motor control centres requiring back-up fusing
• Used for replacement in systems specifying 51x192mm fuse bodies
• Can be used for coordination with upstream protective devices in automation panels
• Ideal for use in motor control centres requiring back-up fusing
• Used for replacement in systems specifying 51x192mm fuse bodies
• Can be used for coordination with upstream protective devices in automation panels
What voltage systems is this intended for?
It is specified for use on 3.6kV systems where a high-voltage protective element is required.
Which physical form factor does it adopt for mounting?
The unit is supplied in a 51 x 192 mm format designed to fit compatible DIN43625-style fuse holders.
How does its speed characteristic affect coordination with other protection?
As a back-up fuse, its timing and melting characteristics are intended to operate after primary protection to preserve selectivity.
