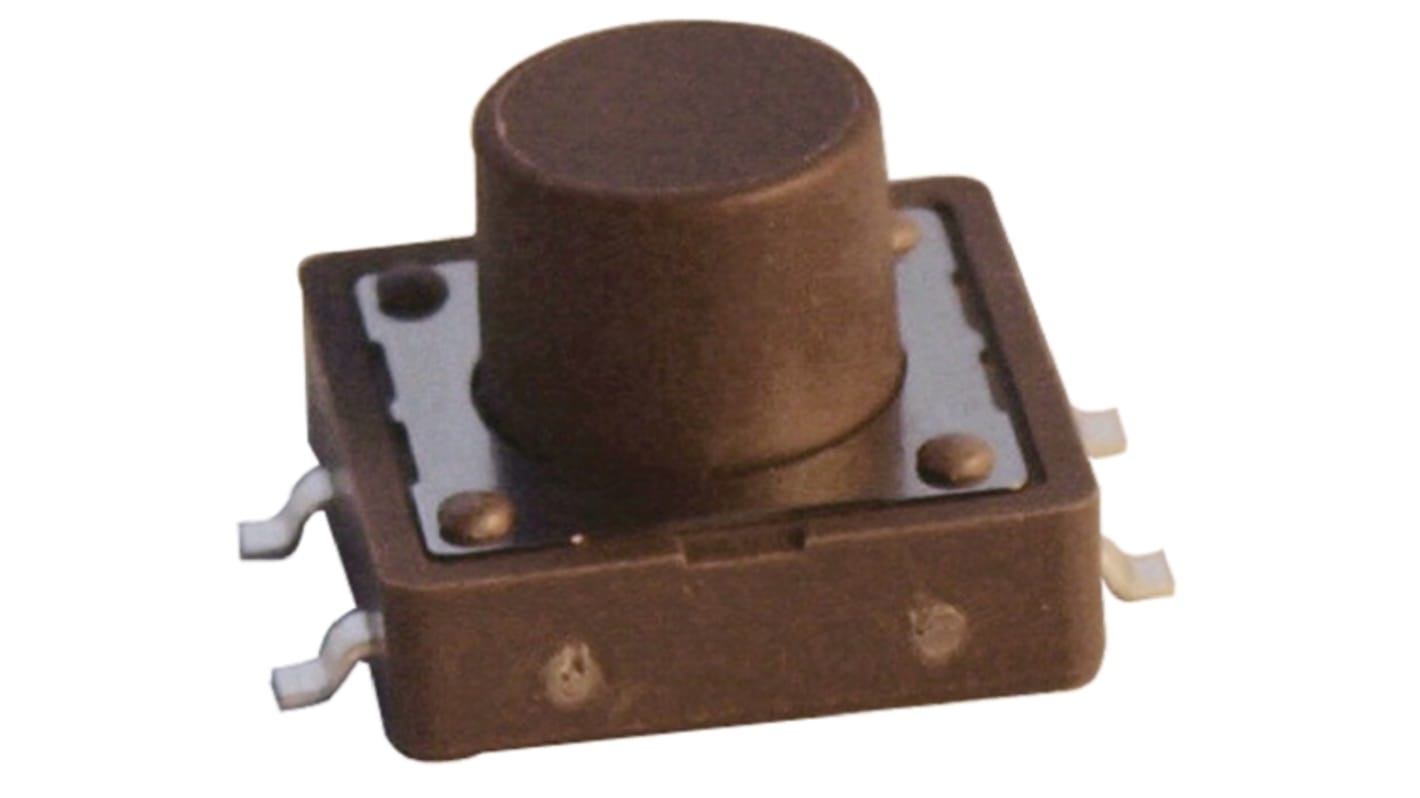

Apem Brown Cap Tactile Switch, SPST 50 mA @ 12 V dc Surface Mount
- RS Stock No.:
- 765-1090
- Mfr. Part No.:
- DTSM25NV
- Brand:
- APEM
Bulk discount available
Subtotal (1 tube of 40 units)*
£9.28
(exc. VAT)
£11.12
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 760 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 40 - 160 | £0.232 | £9.28 |
| 200 - 960 | £0.213 | £8.52 |
| 1000 - 1960 | £0.19 | £7.60 |
| 2000 - 3960 | £0.174 | £6.96 |
| 4000 + | £0.162 | £6.48 |
*price indicative
- RS Stock No.:
- 765-1090
- Mfr. Part No.:
- DTSM25NV
- Brand:
- APEM
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Contact Configuration | SPST | |
| Terminal Type | Solder, Tab | |
| Switch Operation | Momentary | |
| Actuator Colour | Brown | |
| Actuator Type | Cap | |
| Length | 6mm | |
| Width | 6mm | |
| Dimensions | 6 x 6mm | |
| Mounting Type | Surface Mount | |
| Contact Current Rating | 50 mA @ 12 V dc | |
| Height | 8.5mm | |
| Operating Force | 1.6 N | |
| Maximum Operating Temperature | +70°C | |
| Contact Material | Phosphor Bronze | |
| Operating Temperature Range | -25 → +70°C | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand APEM | ||
Contact Configuration SPST | ||
Terminal Type Solder, Tab | ||
Switch Operation Momentary | ||
Actuator Colour Brown | ||
Actuator Type Cap | ||
Length 6mm | ||
Width 6mm | ||
Dimensions 6 x 6mm | ||
Mounting Type Surface Mount | ||
Contact Current Rating 50 mA @ 12 V dc | ||
Height 8.5mm | ||
Operating Force 1.6 N | ||
Maximum Operating Temperature +70°C | ||
Contact Material Phosphor Bronze | ||
Operating Temperature Range -25 → +70°C | ||
Minimum Operating Temperature -25°C | ||
