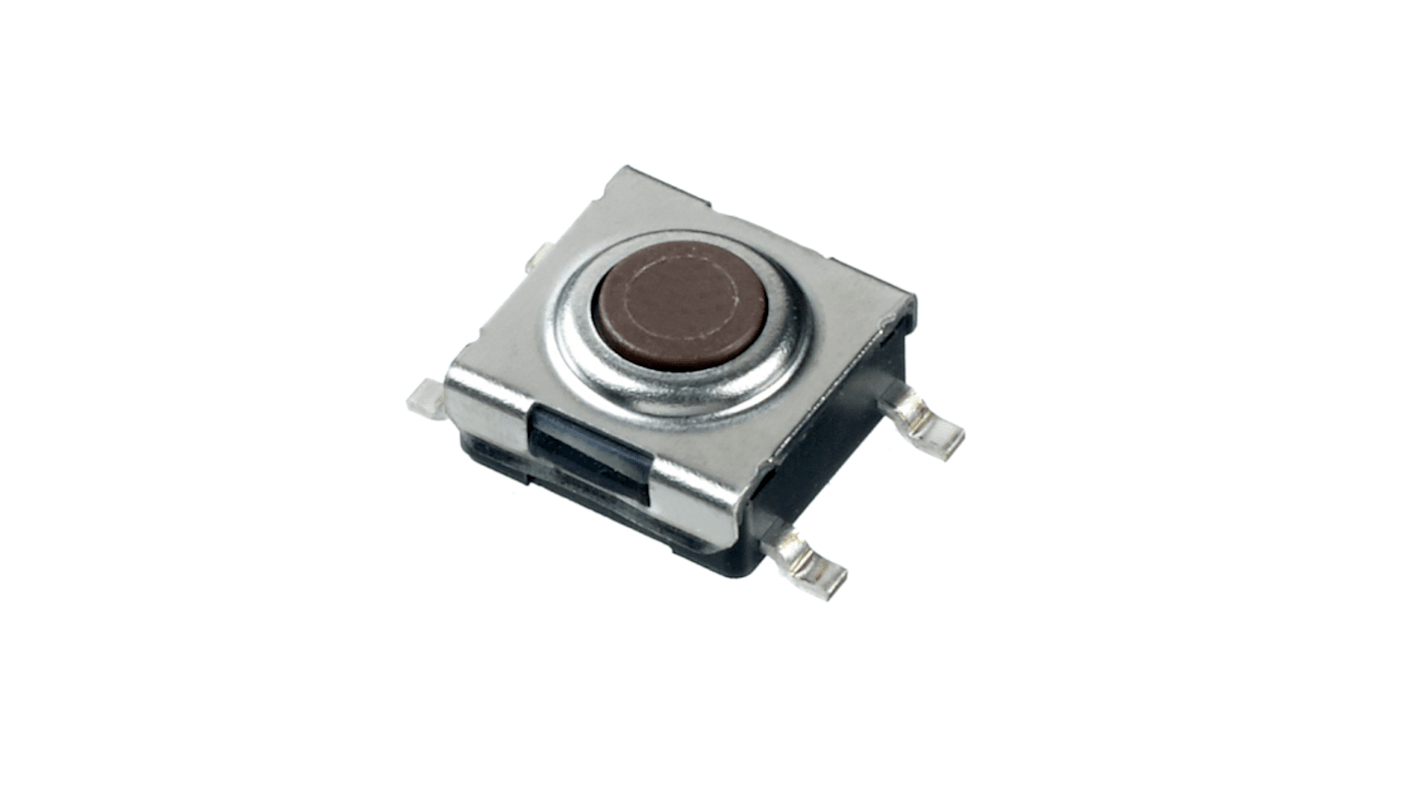

APEM Brown Tactile Switch Tactile, 3.1 mm, SPST 50 mA 12 V dc, Surface
- RS Stock No.:
- 270-7847
- Distrelec Article No.:
- 304-41-431
- Mfr. Part No.:
- PHAP5-31VA2N2S2W3
- Brand:
- APEM
Subtotal (1 tube of 75 units)*
£18.525
(exc. VAT)
£22.20
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 30 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 75 + | £0.247 | £18.53 |
*price indicative
- RS Stock No.:
- 270-7847
- Distrelec Article No.:
- 304-41-431
- Mfr. Part No.:
- PHAP5-31VA2N2S2W3
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Product Type | Tactile Switch | |
| Contact Configuration | SPST | |
| Terminal Type | Solder | |
| Switch Operation | Momentary | |
| Actuator Colour | Brown | |
| Actuator Length | 3.1mm | |
| Contact DC Voltage | 12V dc | |
| Minimum Operating Temperature | -25°C | |
| Mount Type | Surface | |
| Actuator Style | Tactile | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS | |
| Series | PHAP5 | |
| Height | 3.1mm | |
| Operating Force | 260g | |
| Mechanical Life | 100000Cycles | |
| Select all | ||
|---|---|---|
Brand APEM | ||
Product Type Tactile Switch | ||
Contact Configuration SPST | ||
Terminal Type Solder | ||
Switch Operation Momentary | ||
Actuator Colour Brown | ||
Actuator Length 3.1mm | ||
Contact DC Voltage 12V dc | ||
Minimum Operating Temperature -25°C | ||
Mount Type Surface | ||
Actuator Style Tactile | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS | ||
Series PHAP5 | ||
Height 3.1mm | ||
Operating Force 260g | ||
Mechanical Life 100000Cycles | ||
The APEM PHAP5-31 tact switches are 6 x 6 mm low profile package having normally open (NO) contacts. These switches are either surface or through hole mounted. They have current rating of 50 mA and operates at voltage rating of 12 Vdc maximum, with an operating force of 1.6 N or 2.6 N.
Low profile
Positive tactile feed back
Tube, tape & reel packaging
Washable
